Configure
- Hand Force(N)
- 160
- 190
- 250
- 280
- Retaining force F1(N)
- 1350
- 2000
- 2500
- 3000
- Retaining force F2(N)
- 1650
- 2800
- 4500
- 5500
- Clamping force F3(N)
- 920
- 940
- 1400
- 1500
- Clamping force F4(N)
- 1050
- 1350
- 2800
- hole arrangement
- 2
- 3
- 5
- A(mm)
- 14
- 21
- 32
- A1(mm)
- 29
- 39
- 50
- 53
- A2(mm)
- 7
- 8
- 9
- 10.5
- A3(mm)
- 12
- 19
- 27
- A4(mm)
- 3.5
- B(mm)
- 10.2
- 14.1
- B1(mm)
- 5.2
- 7.1
- B2(mm)
- 17.5
- 20.6
- 25.5
- 28
- B3(mm)
- 12.5
- 15.6
- 18.5
- 21
- B6(mm)
- 51.1
- 53.4
- 56.5
- C(mm)
- 37.6
- 49
- 62.3
- 69.8
- C2(mm)
- 5.5
- 6.5
- 9
- 13
- D(mm)
- 5.5
- 6.8
- 8.8
- 9
- H(mm)
- 175.7
- 207.6
- 254
- 272.1
- L(mm)
- 86.5
- 107
- 153
- 173.5
- L1(mm)
- 53
- 62
- 95
- 113.5
- Est. shipping days
- All
- Within 4 working days

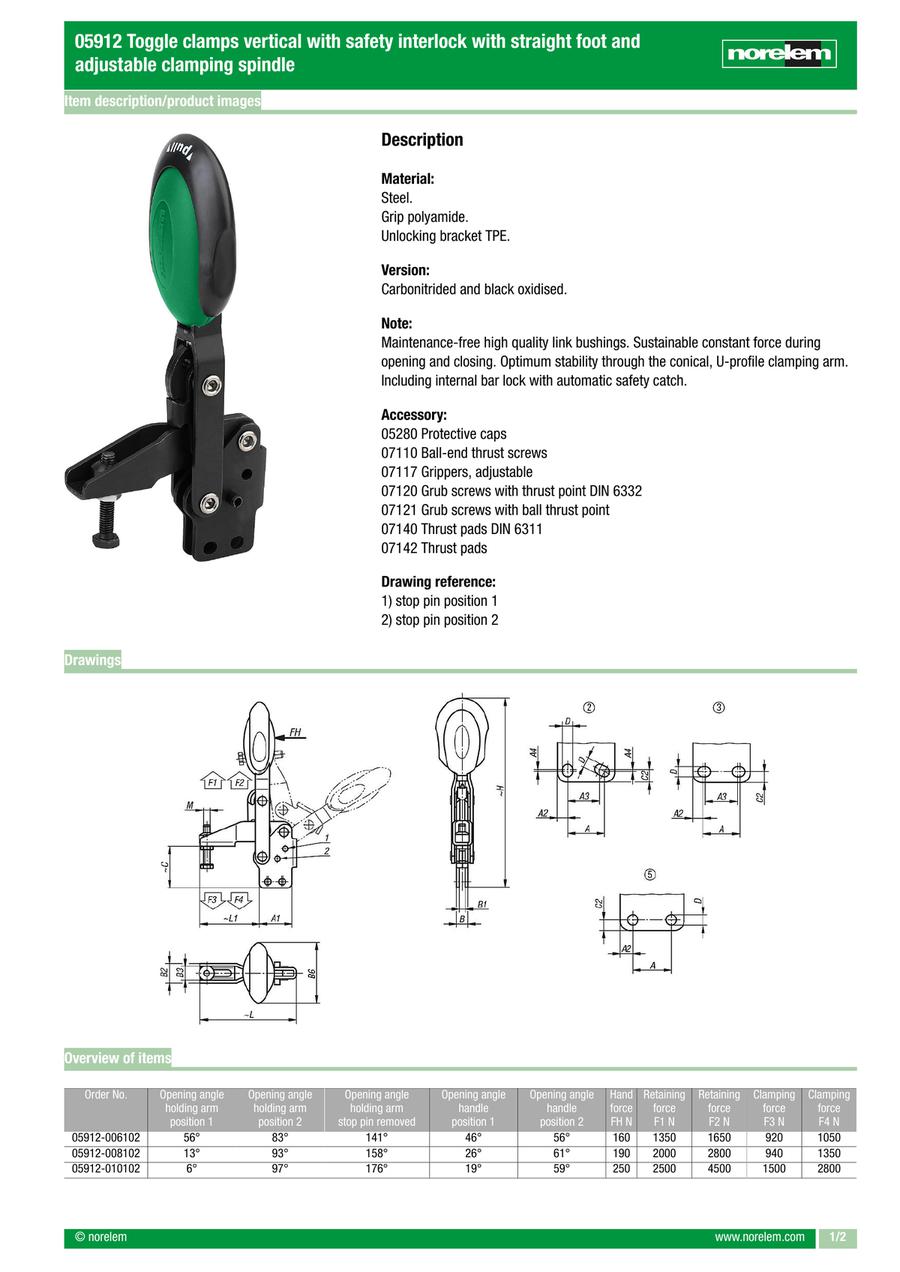

Toggle clamps vertical with safety interlock with straight foot and adjustable clamping spindle (05912)
Part number:
possible part numbers found.Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
49.27 € ( 58.63 € ) | 4 working days |
58.87 € ( 70.06 € ) | 4 working days |
80.56 € ( 95.87 € ) | 4 working days |
83.28 € ( 99.10 € ) | 4 working days |
More Information
Basic information
· Toggle clamps and power clamps are used in assembly and workholding fixtures
· Application sectors: machine construction, welding technology, metal processing, woodworking, plastics industry
· Optimum stability through the conical, U-profile clamping arm
· Slim design – ideal for tight spaces
· Internal rod lock with automatic catch
Catalog
