Configure

Version 2
- Swivel to the left
- Swivel to the right
A(mm)
- 35
- 45
- 65
D min.(mm)
- 18.32
- 22.92
- 29.92
- 36.92
D max.(mm)
- 18.4
- 23
- 30
- 37
D1(mm)
- 12
- 16
- 20
D2(mm)
- G1/4
- G1/8
- M5
D3=Thread
H=Height(mm)
- 93.5
- 113.5
- 114.5
- 133.5
- 134.5
- 152
- 212
H1(mm)
- 73
- 80
- 83
- 90
- 101.5
- 131.5
H2(mm)
- 18
- 20
- 25
H3(mm)
- 25
- 27
- 35
- 37
- 39.5
- 49.5
- 67
H4(mm)
- 3
- 3.5
H5(mm)
- 3
- 5.5
H6(mm)
- 4
- 6.5
- 7.5
B=Width(mm)
- 4
- 4.5
- 5
- 7
B1 max.(mm)
- 9.9
- 13.9
- 16.9
B1 min.(mm)
- 9.8
- 13.8
- 16.8
B2(mm)
- 5.5
- 6.6
B3(mm)
- 8.3
- 9
- 11
F1(N)
- 141
- 264
- 422
- 739
- 1155
Size
- 20
- 25
- 32
- 40
- 50
L=Length(mm)
- 36
- 40
- 45
- 52
- 64
L1(mm)
- 25.5
- 28
- 34
- 40
- 50
L2(mm)
- 8
- 9.6
- 16.5
- 18
- 20
Travel S(mm)
- 19.5
- 25
- 29.5
- 35
- 39
- 69
S1(mm)
- 9.5
- 15
- 19
S2(mm)
- 10
- 20
- 50
Est. shipping days
- All
- Within 4 working days

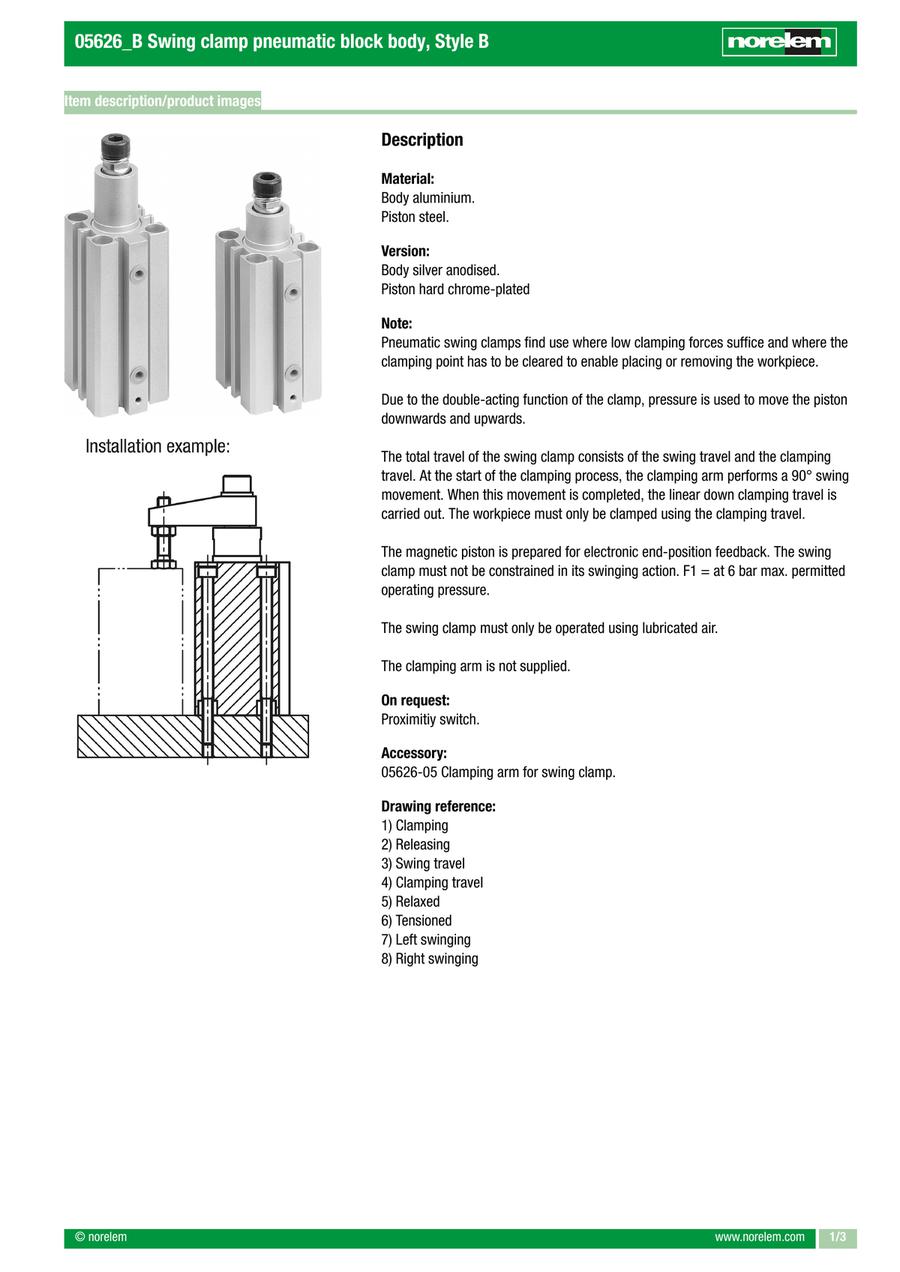

Swing clamp pneumatic block body, Style B (05626)

Catalog

Part number:

Still undefined. 20 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Version 2

(mm)

D min.

(mm)

D max.

(mm)

D3=Thread

H=Height

(mm)

B=Width

(mm)

B1 max.

(mm)

B1 min.

(mm)

(N)

Size

L=Length

(mm)

Travel S

(mm)

Weight (ERP)

(kg)

Minimum order quantity

Swivel to the right	35	18.32	18.4	12	M5	M08x1.25	93.5	73	18	39.5	3	3	4	4	9.9	9.8	5.5	8.3	141	20	36	25.5	8	19.5	9.5	10	0.2550	1 pieces
Swivel to the right	35	18.32	18.4	12	M5	M08x1.25	113.5	83	18	49.5	3	3	4	4	9.9	9.8	5.5	8.3	141	20	36	25.5	8	29.5	9.5	20	0.2880	1 pieces
Swivel to the right	35	22.92	23	12	M5	M08x1.25	93.5	73	18	27	3	3	4	5	9.9	9.8	5.5	9	264	25	40	28	9.6	19.5	9.5	10	0.3571	1 pieces
Swivel to the right	35	22.92	23	12	M5	M08x1.25	113.5	83	18	37	3	3	4	5	9.9	9.8	5.5	9	264	25	40	28	9.6	29.5	9.5	20	0.4090	1 pieces
Swivel to the right	45	29.92	30	16	G1/8	M10x1.5	113.5	80	20	25	3	5.5	6.5	4.5	13.9	13.8	5.5	9	422	32	45	34	16.5	25	15	10	0.5913	1 pieces
Swivel to the right	45	29.92	30	16	G1/8	M10x1.5	133.5	90	20	35	3	5.5	6.5	4.5	13.9	13.8	5.5	9	422	32	45	34	16.5	35	15	20	0.6479	1 pieces
Swivel to the right	45	29.92	30	16	G1/8	M10x1.5	114.5	80	20	25	3	5.5	6.5	5	13.9	13.8	5.5	9	739	40	52	40	18	25	15	10	0.7226	1 pieces
Swivel to the right	45	29.92	30	16	G1/8	M10x1.5	134.5	90	20	35	3	5.5	6.5	5	13.9	13.8	5.5	9	739	40	52	40	18	35	15	20	0.8079	1 pieces
Swivel to the right	65	36.92	37	20	G1/4	M12x1.75	152	101.5	25	37	3.5	5.5	7.5	7	16.9	16.8	6.6	11	1155	50	64	50	20	39	19	20	1.4300	1 pieces
Swivel to the right	65	36.92	37	20	G1/4	M12x1.75	212	131.5	25	67	3.5	5.5	7.5	7	16.9	16.8	6.6	11	1155	50	64	50	20	69	19	50	1.7900	1 pieces
Swivel to the left	35	18.32	18.4	12	M5	M08x1.25	93.5	73	18	39.5	3	3	4	4	9.9	9.8	5.5	8.3	141	20	36	25.5	8	19.5	9.5	10	0.2550	1 pieces
Swivel to the left	35	18.32	18.4	12	M5	M08x1.25	113.5	83	18	49.5	3	3	4	4	9.9	9.8	5.5	8.3	141	20	36	25.5	8	29.5	9.5	20	0.2880	1 pieces
Swivel to the left	35	22.92	23	12	M5	M08x1.25	93.5	73	18	27	3	3	4	5	9.9	9.8	5.5	9	264	25	40	28	9.6	19.5	9.5	10	0.3575	1 pieces
Swivel to the left	35	22.92	23	12	M5	M08x1.25	113.5	83	18	37	3	3	4	5	9.9	9.8	5.5	9	264	25	40	28	9.6	29.5	9.5	20	0.4084	1 pieces
Swivel to the left	45	29.92	30	16	G1/8	M10x1.5	113.5	80	20	25	3	5.5	6.5	4.5	13.9	13.8	5.5	9	422	32	45	34	16.5	25	15	10	0.5913	1 pieces
Swivel to the left	45	29.92	30	16	G1/8	M10x1.5	133.5	90	20	35	3	5.5	6.5	4.5	13.9	13.8	5.5	9	422	32	45	34	16.5	35	15	20	0.6453	1 pieces
Swivel to the left	45	29.92	30	16	G1/8	M10x1.5	114.5	80	20	25	3	5.5	6.5	5	13.9	13.8	5.5	9	739	40	52	40	18	25	15	10	680.7229	1 pieces
Swivel to the left	45	29.92	30	16	G1/8	M10x1.5	134.5	90	20	35	3	5.5	6.5	5	13.9	13.8	5.5	9	739	40	52	40	18	35	15	20	0.8030	1 pieces
Swivel to the left	65	36.92	37	20	G1/4	M12x1.75	152	101.5	25	37	3.5	5.5	7.5	7	16.9	16.8	6.6	11	1155	50	64	50	20	39	19	20	1.4300	1 pieces
Swivel to the left	65	36.92	37	20	G1/4	M12x1.75	212	131.5	25	67	3.5	5.5	7.5	7	16.9	16.8	6.6	11	1155	50	64	50	20	69	19	50	1.7900	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

342.46 € ( 407.53 € )	4 working days
351.02 € ( 417.71 € )	4 working days
342.46 € ( 407.53 € )	4 working days
351.02 € ( 417.71 € )	4 working days
353.87 € ( 421.11 € )	4 working days
366.72 € ( 436.40 € )	4 working days
373.86 € ( 444.89 € )	4 working days
393.82 € ( 468.65 € )	4 working days
416.76 € ( 495.94 € )	4 working days
487.14 € ( 579.70 € )	4 working days
342.46 € ( 407.53 € )	4 working days
351.02 € ( 417.71 € )	4 working days
342.46 € ( 407.53 € )	4 working days
351.02 € ( 417.71 € )	4 working days
353.87 € ( 421.11 € )	4 working days
366.72 € ( 436.40 € )	4 working days
373.86 € ( 444.89 € )	4 working days
393.82 € ( 468.65 € )	4 working days
416.76 € ( 495.94 € )	4 working days
487.14 € ( 579.70 € )	4 working days

More Information

Basic information

Basic information

· Automatable

· Magnetic piston for end position feedback

· Swivels to right and left

· Double-acting
