NORELEM

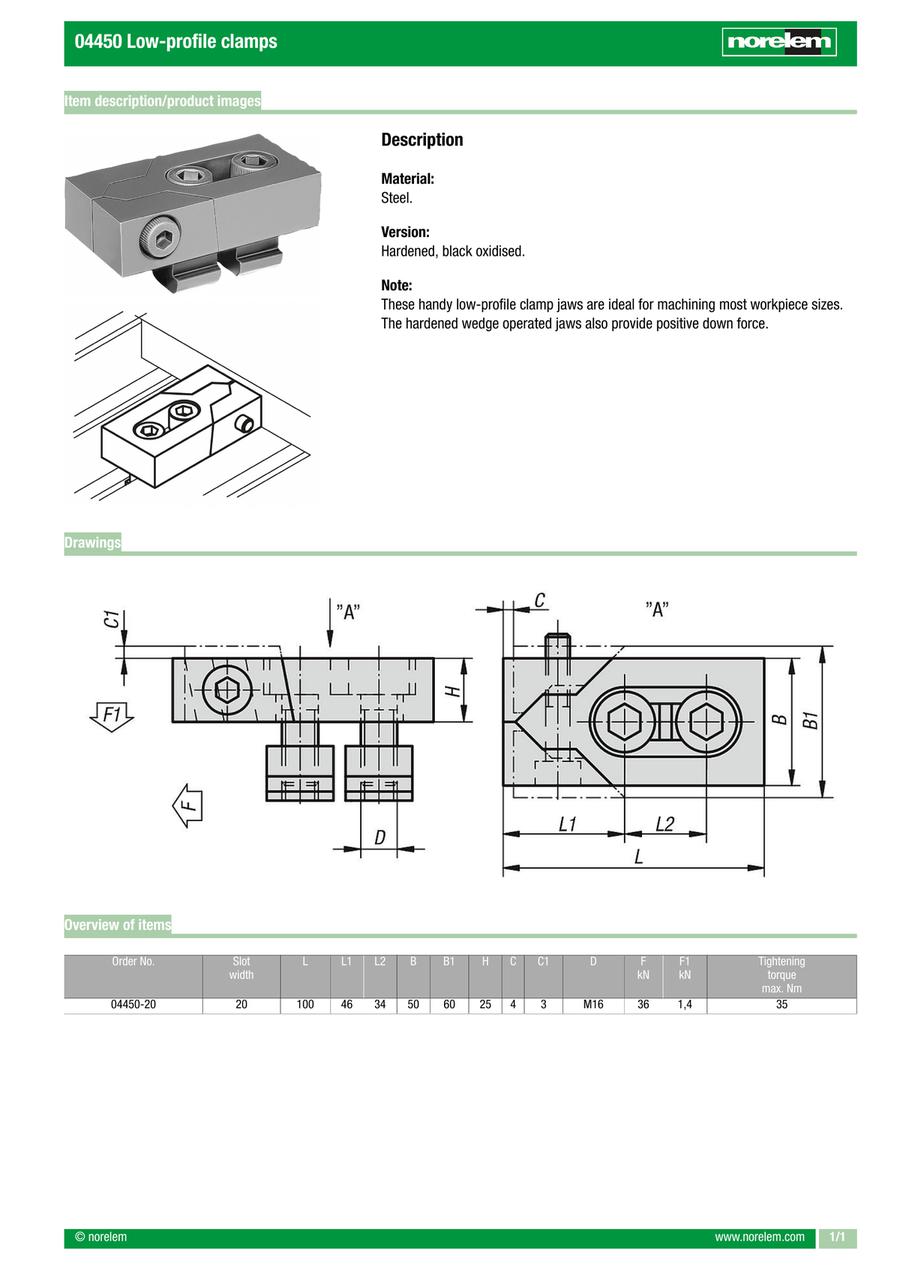

Low-profile clamp (handy low-profile clamp jaws), steel (04450)

Low-profile clamp (handy low-profile clamp jaws), steel (04450)

Part number:

Still undefined. 5 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    04450-12
    04450-14
    04450-18
    04450-20
    04450-22

    B=Width

    (mm)

    B1

    (mm)

    BN=Slot width

    C

    (mm)

    C1

    (mm)

    D

    (mm)

    F

    (kN)

    F1

    (kN)

    H=Height

    (mm)

    L=Length

    (mm)

    L1

    (mm)

    L2

    (mm)

    Tightening torque max.

    (Nm)

    Weight (ERP)

    (kg)

    		Minimum order quantity
    40
    47
    12
    3
    2.5
    M10
    16
    0.6
    20
    80
    39
    26
    15
    0.5501
    1 pieces
    40
    47
    14
    3
    2.5
    M12
    22
    0.9
    20
    80
    39
    26
    18
    0.6000
    1 pieces
    50
    60
    18
    4
    3
    M16
    36
    1.4
    25
    100
    46
    34
    35
    1.0480
    1 pieces
    50
    60
    20
    4
    3
    M16
    36
    1.4
    25
    100
    46
    34
    35
    1.3000
    1 pieces
    78
    95
    22
    5
    4
    M20
    36
    1.4
    30
    140
    65
    50
    45
    2.5900
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    80.43 €
    ( 95.71 € )
    4 working days
    83.45 €
    ( 99.31 € )
    4 working days
    107.90 €
    ( 128.40 € )
    4 working days
    116.86 €
    ( 139.06 € )
    4 working days
    196.10 €
    ( 233.36 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Workpiece clamping with positive down force

    · Ideal for flat workpieces

    · Body hardened
