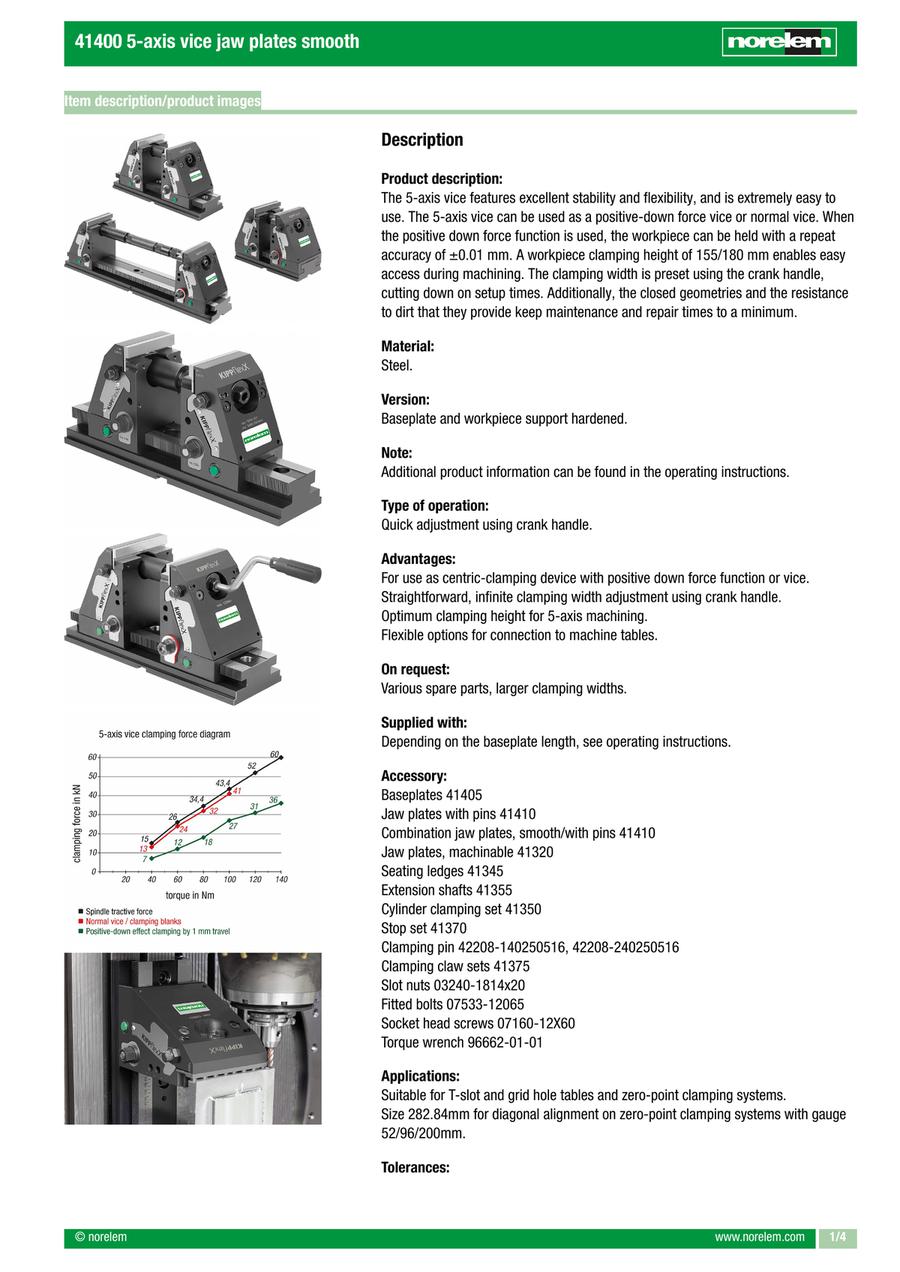

5-axis clamping system, smooth version, mild steel (41400)
· Straightforward, infinite clamping width adjustment using crank handle
· Optimum clamping height for 5-axis machining
· Flexible options for connection to machine tables
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 41400-122800901550 |
| 41400-122801251800 |
| 41400-124000901550 |
| 41400-124001251800 |
| 41400-126301251800 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | L2 | L1 | L=Length | B=Width | H=Clamping height | H1=Height | E=Hole spacing | D2=Fitting bore | G2=Thread | Clamping width extendable | PL Edelstahl | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
4,050.30 € | 1 | 4 Days | 250 | - | 280 | 90 | 155 | 175 | 52 | 12H6 | M8 | 28-180 | no | 22.5000 | ||
4,485.00 € | 1 | 4 Days | 250 | - | 280 | 125 | 180 | 200 | 96 | 16H6 | M10 | 28-180 | no | 35.7500 | ||
4,629.90 € | 1 | 4 Days | 350 | 150 | 400 | 90 | 155 | 175 | 52 | 12H6 | M8 | 28-300 | no | 25.0000 | ||
5,064.60 € | 1 | 4 Days | 350 | 150 | 400 | 125 | 180 | 200 | 96 | 16H6 | M10 | 28-300 | - | 41.8000 | ||
6,078.90 € | 1 | 4 Days | 450 | 200 | 630 | 125 | 180 | 200 | 96 | 16H6 | M10 | 28-528 | no | 52.0000 |
Loading...
Basic information
| Main material | mild steel | Component material | tool steel | Item | 5-Axis Clamping System |
|---|---|---|---|---|---|
| H2 | 53 | H3 | 5.5 | H4 | 18 |
| H5 | 6 | H6 | 11 | Version 1 | smooth version |
| Tractive force max.(kN) | see diagram | Accessories NLM | 07533-12065 | G1=THREAD | M12 |
| D=Reamed hole | 25H7 | RoHS | yes |
Configure
Basic Attributes
-
L2
-
L1
-
L=Length
-
B=Width
- 90
- 125
-
H=Clamping height
- 155
- 180
-
H1=Height
- 175
- 200
-
E=Hole spacing
- 52
- 96
-
D2=Fitting bore
- 12H6
- 16H6
-
G2=Thread
- M8
- M10
-
Clamping width extendable
- 28-528
- 28-300
- 28-180
-
PL Edelstahl
- no
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
