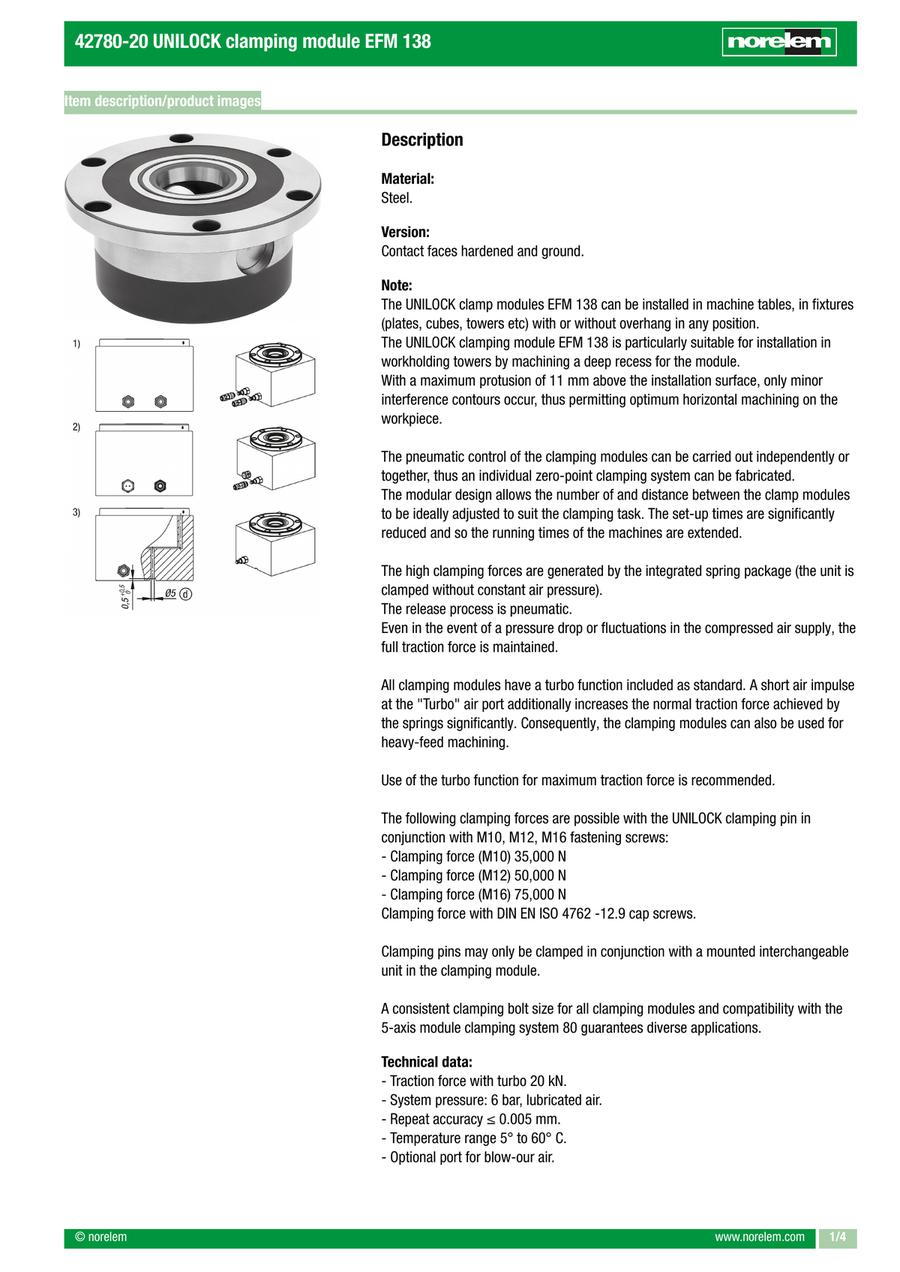

Clamping module UNILOCK, EFM138, without rotation lock, carbon steel (42780)
· Zero point clamping system
· Base element for system construction
· Repeat accuracy ≤ 0.005 mm
· Optimal for mounting on workholding towers
· Base element for system construction
· Repeat accuracy ≤ 0.005 mm
· Optimal for mounting on workholding towers
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
42780-20-138110
- Product data
- CAD data not available
Basic information
| Main material | high carbon steel | Item | Clamping module | Form definition | without rotation lock |
|---|---|---|---|---|---|
| Surface finish body | hardened and ground | Version 1 | UNILOCK | Version 2 | EFM138 |
| D=pin diameter | 138 | D1=Outside diameter | 110 | H | 11 |
| H1 | 49 | Operating pressure bar | 6 | Retraction force with turbo(kN) | 20 |
| RoHS | false | PL Edelstahl | false | Weight (ERP)(kg) | 3.5500 |
This page is Clamping module UNILOCK, EFM138, without rotation lock, carbon steel (42780), part number 42780-20-138110.
You can find the detail information about specifications and dimensions on part number 42780-20-138110.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
