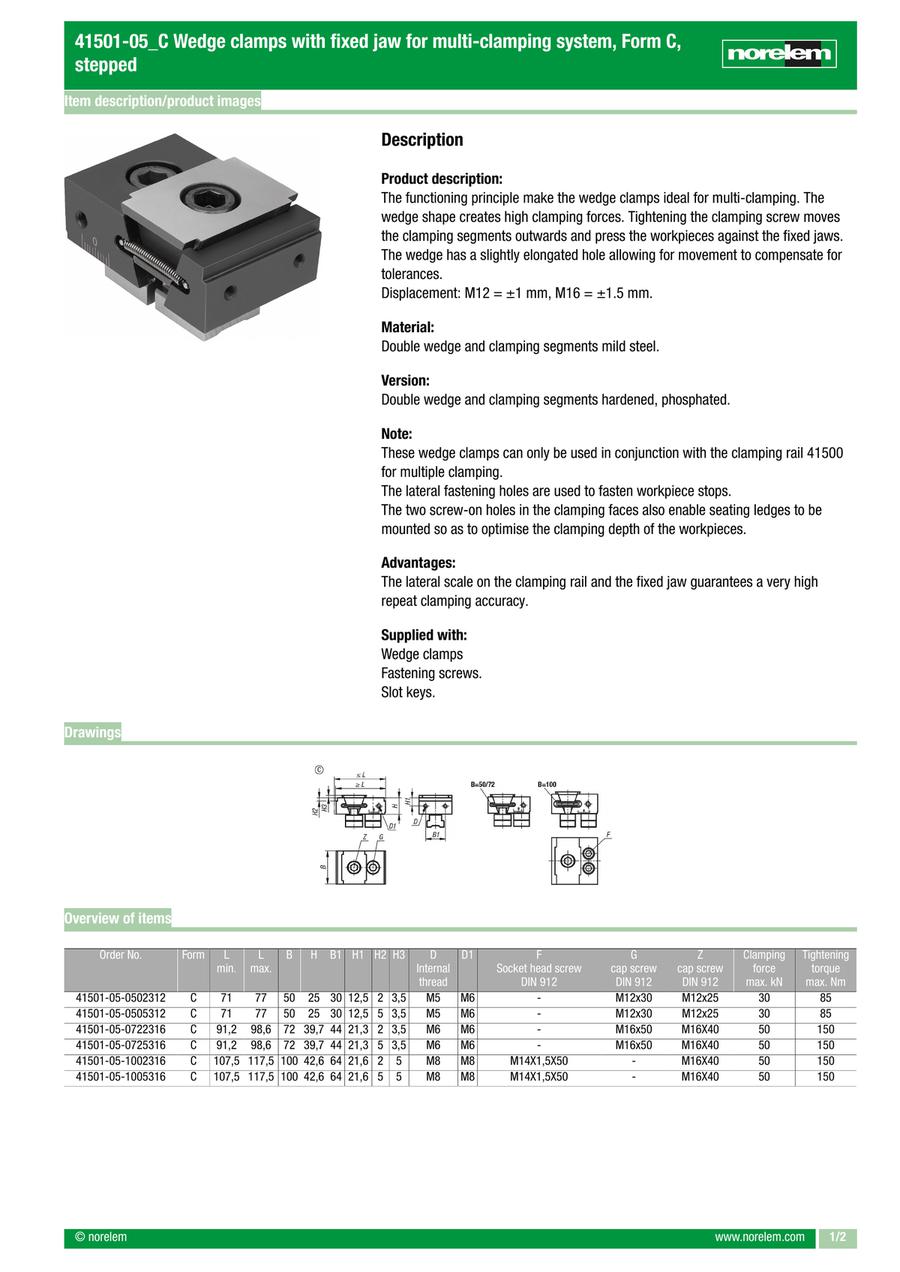

Wedge clamp with fixed jaw, single sided form C (41501)
· For high clamping forces
· High repeat accuracy
· Tolerance compensation possible with elongated hole
· High repeat accuracy
· Tolerance compensation possible with elongated hole
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 41501-05-0502312 |
| 41501-05-0505312 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Form definition | H2 | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|
318.78 € | 1 | 4 Days | 2 mm steps | 2 | 0.6200 | ||
304.98 € | 1 | 4 Days | 5 mm steps | 5 | 0.6150 |
Loading...
Basic information
| Main material | mild steel | Surface finish body | hardened and phosphated | Item | Wedge Clamp |
|---|---|---|---|---|---|
| Form | C | Version 1 | with fixed jaw | Version 2 | single sided |
| B=Width | 50 | B1 | 30 | C hole for DIN 912 cap screw | M12 |
| D Internal thread | M5 | D1 | M6 | G cap screw DIN 912 | M12x30 |
| H=Height | 25 | H1 | 12.5 | H3 | 3.5 |
| L max. | 77 | L min. | 71 | Clamping force max.(kN) | 30 |
| Tightening torque max.(Nm) | 85 | Z cap screw DIN 912 | M12x25 | RoHS | yes |
| PL Edelstahl | no |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
