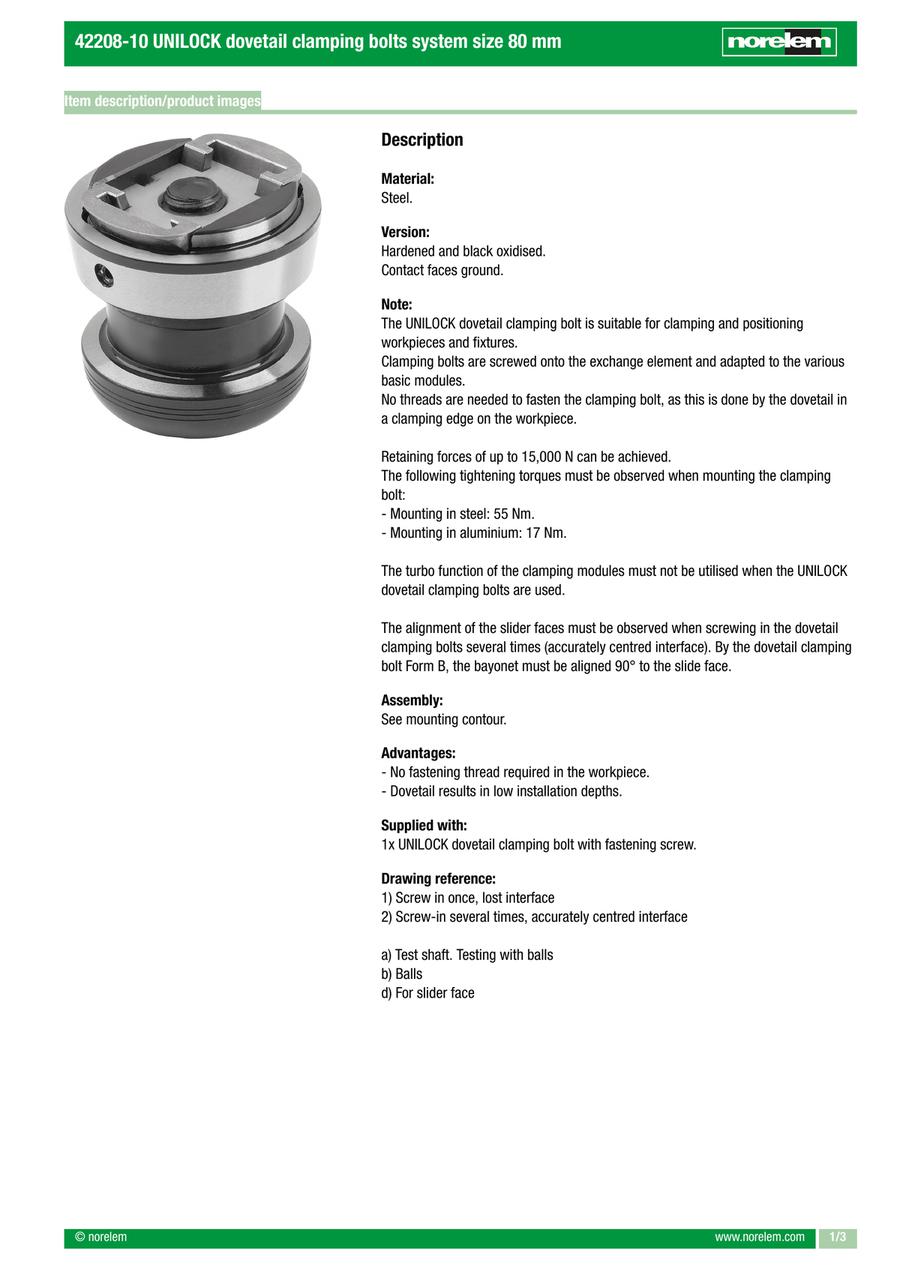

UNILOCK dovetail clamping bolts system (42208)
· No fastening thread required in the workpiece
· Dovetail results in low installation depths.
· Dovetail results in low installation depths.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 42208-10-140320308 |
| 42208-10-240320308 |
| 42208-10-340320308 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Form | |
|---|---|---|---|---|---|
355.67 € | 1 | 4 Days | A | ||
385.08 € | 1 | 4 Days | B | ||
348.33 € | 1 | 4 Days | C |
Loading...
Basic information
| Main material | mild steel | Surface finish body | hardened and black oxid finish | Item | Dovetail clamping bolt |
|---|---|---|---|---|---|
| Version 1 | UNILOCK | D | 39.5 | D1 | 32 |
| D2 | 35.1 | H | 35 | H1 | 3.2 |
| H2 | 3.3 | H3 | 3.5 | SW | 8 |
| Size | SYSTEM SIZE 80MM | RoHS | yes | PL Edelstahl | no |
| Weight (ERP)(kg) | 0.2600 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
