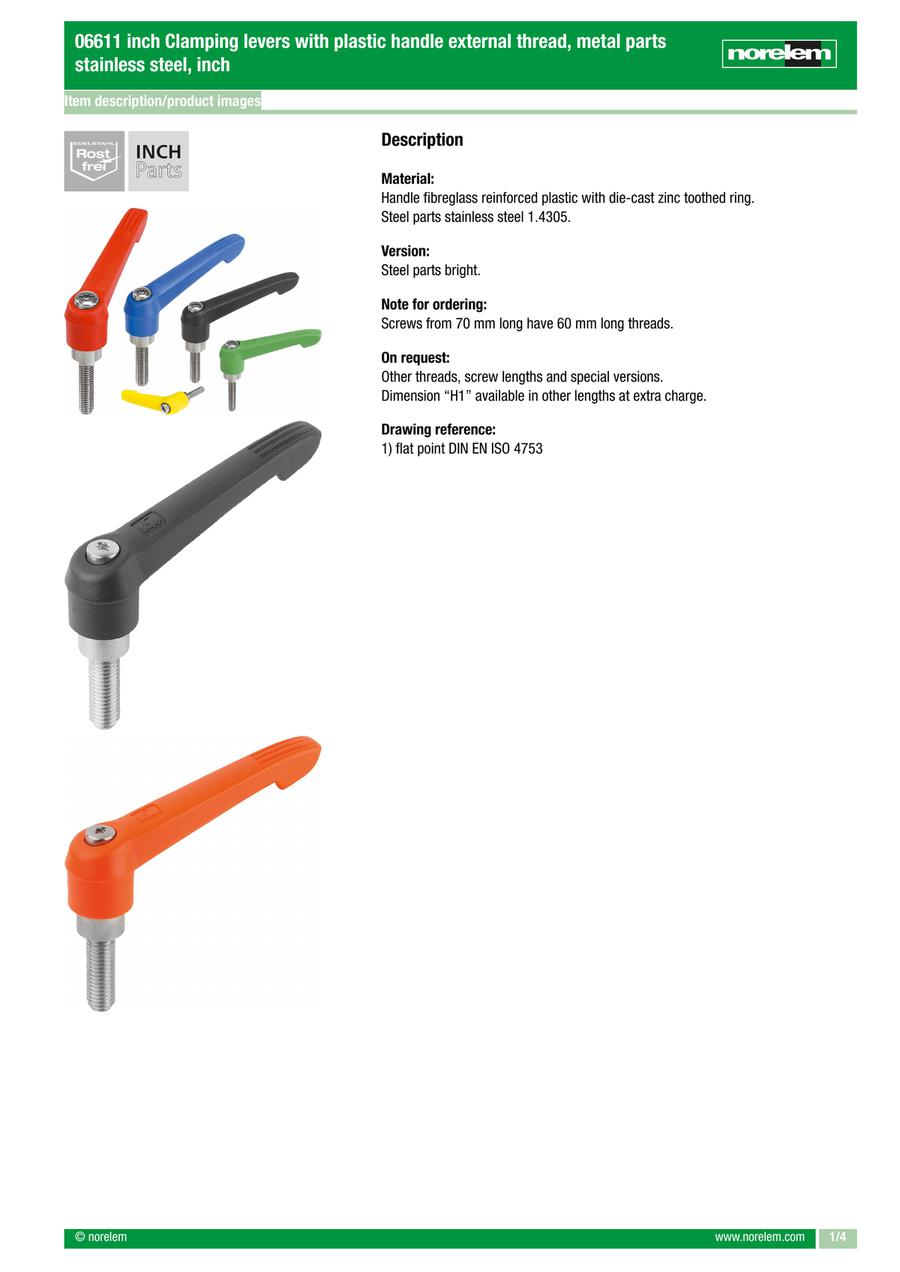

Clamping lever with plastic handle external thread, inch (06611)
· Makes it easier to clamp individual components and complete machine parts
· Application fields: machine construction, plant construction, rehabilitation and medical technology, furniture industry
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Handle length (mm) | H | B | D | Main colour | Size | X=thread | D1 (mm) | No. of teeth | A1=Handle length | D2 | H1 | H2 | H3=handle height | H4 | L=thread length | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | black grey RAL 7021 | 1 | 10-24 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 15 | 0.0150 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | black grey RAL 7021 | 1 | 10-24 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 20 | 0.0300 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | black grey RAL 7021 | 1 | 10-24 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 25 | 0.0170 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | orange RAL 2004 | 1 | 10-24 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 15 | 0.0176 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | orange RAL 2004 | 1 | 10-24 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 20 | 0.0300 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | orange RAL 2004 | 1 | 10-24 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 25 | 0.0168 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | colza yellow RAL 1021 | 1 | 10-24 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 15 | 0.0160 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | colza yellow RAL 1021 | 1 | 10-24 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 20 | 0.0180 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | colza yellow RAL 1021 | 1 | 10-24 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 25 | 0.0160 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | traffic red RAL 3020 | 1 | 10-24 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 15 | 0.0176 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | traffic red RAL 3020 | 1 | 10-24 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 20 | 0.0160 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | traffic red RAL 3020 | 1 | 10-24 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 25 | 0.0191 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | signal green RAL 6032 | 1 | 10-24 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 15 | 0.0160 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | signal green RAL 6032 | 1 | 10-24 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 20 | 0.0160 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | signal green RAL 6032 | 1 | 10-24 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 25 | 0.0160 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | traffic blue RAL 5017 | 1 | 10-24 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 15 | 0.0176 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | traffic blue RAL 5017 | 1 | 10-24 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 20 | 0.0184 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | traffic blue RAL 5017 | 1 | 10-24 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 25 | 0.0188 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | black grey RAL 7021 | 1 | 10-32 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 15 | 0.0150 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | black grey RAL 7021 | 1 | 10-32 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 20 | 0.0160 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | black grey RAL 7021 | 1 | 10-32 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 25 | 0.0180 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | orange RAL 2004 | 1 | 10-32 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 15 | 0.0155 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | orange RAL 2004 | 1 | 10-32 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 20 | 0.0192 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | orange RAL 2004 | 1 | 10-32 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 25 | 0.0168 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | black grey RAL 7021 | 1 | 1/4-20 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 10 | 0.0176 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | black grey RAL 7021 | 1 | 1/4-20 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 15 | 0.0186 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | black grey RAL 7021 | 1 | 1/4-20 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 20 | 0.0170 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | black grey RAL 7021 | 1 | 1/4-20 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 25 | 0.0204 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | black grey RAL 7021 | 1 | 1/4-20 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 30 | 0.0194 | ||
10.76 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | black grey RAL 7021 | 1 | 1/4-20 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 40 | 0.0210 | ||
10.76 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | black grey RAL 7021 | 1 | 1/4-20 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 50 | 0.0240 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | orange RAL 2004 | 1 | 1/4-20 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 10 | 0.0173 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | orange RAL 2004 | 1 | 1/4-20 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 15 | 0.0183 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | orange RAL 2004 | 1 | 1/4-20 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 20 | 0.0193 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | orange RAL 2004 | 1 | 1/4-20 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 25 | 0.0202 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | orange RAL 2004 | 1 | 1/4-20 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 30 | 0.0209 | ||
10.76 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | orange RAL 2004 | 1 | 1/4-20 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 40 | 0.0237 | ||
10.76 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | orange RAL 2004 | 1 | 1/4-20 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 50 | 0.0253 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | colza yellow RAL 1021 | 1 | 10-32 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 15 | 0.0160 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | colza yellow RAL 1021 | 1 | 10-32 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 20 | 0.0180 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | colza yellow RAL 1021 | 1 | 10-32 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 25 | 0.0160 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | traffic red RAL 3020 | 1 | 10-32 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 15 | 0.0176 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | traffic red RAL 3020 | 1 | 10-32 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 20 | 0.0160 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | traffic red RAL 3020 | 1 | 10-32 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 25 | 0.0191 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | signal green RAL 6032 | 1 | 10-32 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 15 | 0.0160 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | signal green RAL 6032 | 1 | 10-32 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 20 | 0.0160 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | signal green RAL 6032 | 1 | 10-32 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 25 | 0.0160 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | traffic blue RAL 5017 | 1 | 10-32 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 15 | 0.0176 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | traffic blue RAL 5017 | 1 | 10-32 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 20 | 0.0184 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | traffic blue RAL 5017 | 1 | 10-32 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 25 | 0.0188 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | colza yellow RAL 1021 | 1 | 1/4-20 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 10 | 0.0160 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | colza yellow RAL 1021 | 1 | 1/4-20 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 15 | 0.0183 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | colza yellow RAL 1021 | 1 | 1/4-20 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 20 | 0.0193 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | colza yellow RAL 1021 | 1 | 1/4-20 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 25 | 0.0160 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | colza yellow RAL 1021 | 1 | 1/4-20 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 30 | 0.0212 | ||
10.76 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | colza yellow RAL 1021 | 1 | 1/4-20 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 40 | 0.0228 | ||
10.76 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | colza yellow RAL 1021 | 1 | 1/4-20 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 50 | 0.0252 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | traffic red RAL 3020 | 1 | 1/4-20 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 10 | 0.0160 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | traffic red RAL 3020 | 1 | 1/4-20 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 15 | 0.0186 | ||
10.03 € | 1 | 4 Days | 40 | 24.5 | 7.5 | 10 | traffic red RAL 3020 | 1 | 1/4-20 | 13 | 16 | 47 | 14.5 | 4 | 15 | 30 | 33.5 | 20 | 0.0170 |
Loading...
Basic information
| Main material | Plastic | Component material | Stainless steel | Item | Clamping Lever |
|---|---|---|---|---|---|
| Thread type | external thread | RoHS | yes |
Configure
Basic Attributes
-
Handle length(mm)
-
H
-
B
-
D
-
Main colour
-
Size
-
X=thread
-
D1(mm)
-
No. of teeth
-
A1=Handle length
-
D2
-
H1
-
H2
-
H3=handle height
-
H4
-
L=thread length
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
