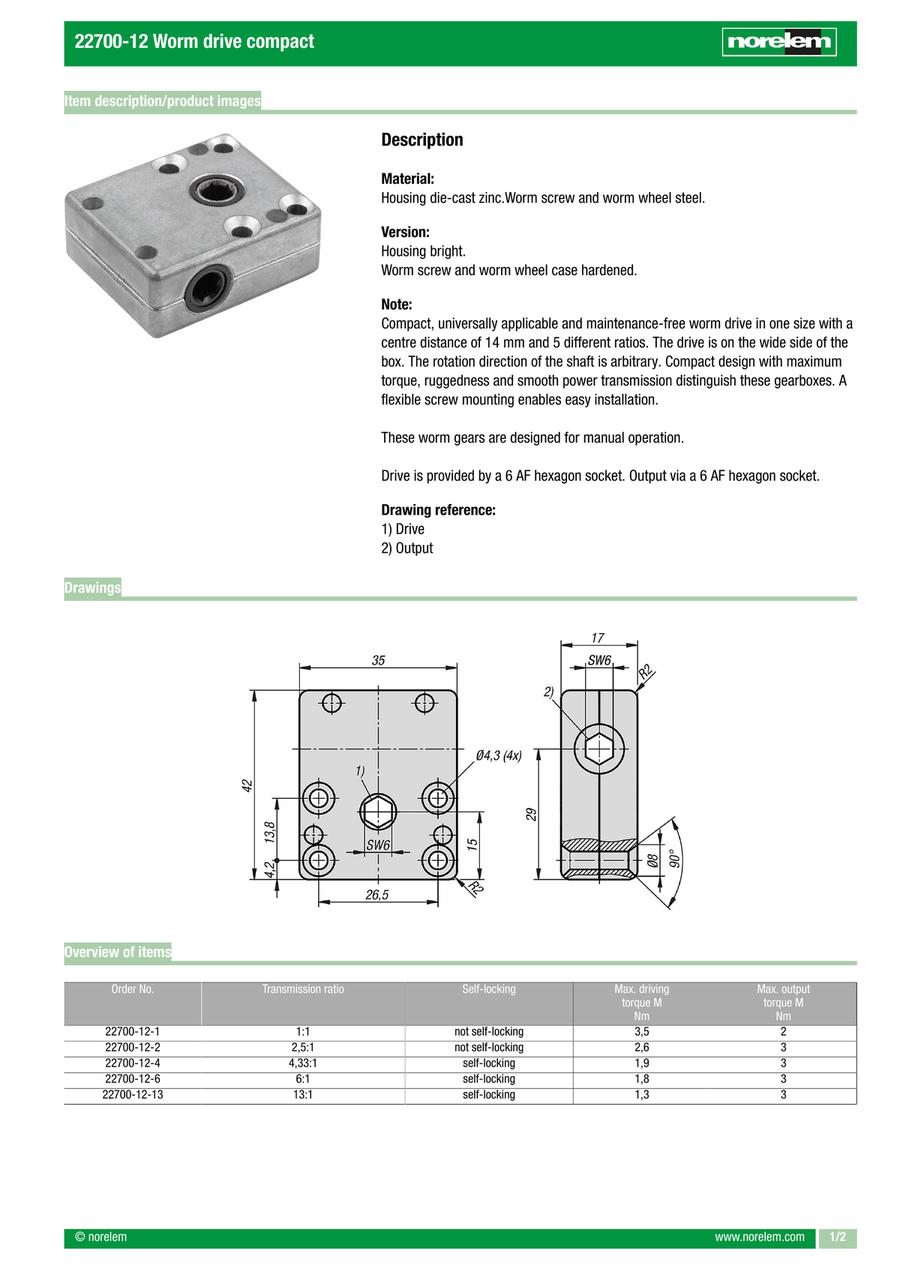

Worm drive compact, zinc (22700)
· Maintenance-free
· Housing die-cast zinc.
· Hardened steel worm screw and worm wheel
· 5 different ratios
· Centre distance 14 mm
· Housing die-cast zinc.
· Hardened steel worm screw and worm wheel
· 5 different ratios
· Centre distance 14 mm
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 22700-12-1 |
| 22700-12-2 |
| 22700-12-4 |
| 22700-12-6 |
| 22700-12-13 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Self-locking | Max. driving torque M (Nm) | Max. output torque M (Nm) | Transmission ratio | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|
104.81 € | 1 | 4 Days | not self-locking | 4 | 2 | 1:1 | 0.0988 | ||
104.81 € | 1 | 4 Days | not self-locking | 3 | 2 | 2.5:1 | 0.0956 | ||
104.81 € | 1 | 4 Days | self-locking | 3 | 2 | 4.33:1 | 0.0946 | ||
104.81 € | 1 | 4 Days | self-locking | 2 | 3 | 6:1 | 0.0963 | ||
104.81 € | 1 | 4 Days | self-locking | 1 | 3 | 13:1 | 0.0972 |
Loading...
Basic information
| Component material | steel | Main material | zinc | Item | Worm Drive |
|---|---|---|---|---|---|
| Version 1 | compact | RoHS | yes |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
