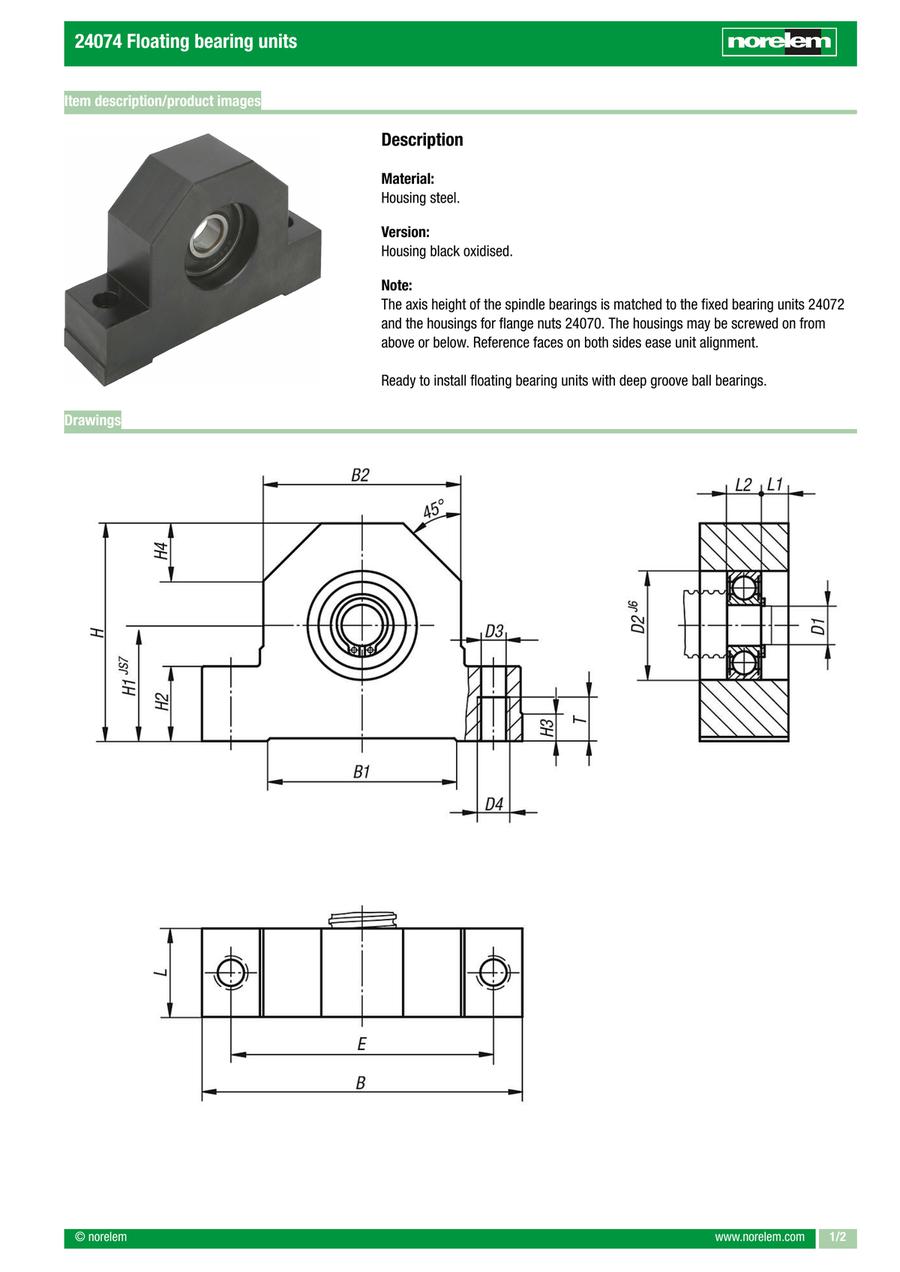

Floating bearing unit steel (24074)
· Can be screwed on from top and bottom
· Dimension-matched with fixed bearing units 24070 & 24072
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 24074-010 |
| 24074-012 |
| 24074-015 |
| 24074-017 |
| 24074-020 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | H1 | B1 | B | H | L | H2 | L1 | D3 | H4 | D2 | E | H3 | L2 | D4 | T | D1=Internal diameter | B2 | Suitable for spindel Ø | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
192.62 € | 1 | 4 Days | 32 | 50 | 86 | 58 | 24 | 22 | 7.5 | 8.4 | 15 | 30 | 68 | 7 | 9 | M10 | 15 | 10 | 52 | 16 | 0.5323 | ||
192.62 € | 1 | 4 Days | 34 | 58 | 94 | 64 | 26 | 22 | 8 | 8.4 | 17 | 32 | 77 | 7 | 10 | M10 | 15 | 12 | 60 | 20 | 0.7197 | ||
201.80 € | 1 | 4 Days | 39 | 63 | 108 | 72 | 28 | 27 | 8 | 10.5 | 19 | 35 | 88 | 10 | 12 | M12 | 18 | 15 | 66 | 20 | 0.9851 | ||
202.36 € | 1 | 4 Days | 39 | 63 | 108 | 72 | 28 | 27 | 8 | 10.5 | 19 | 40 | 88 | 10 | 12 | M12 | 18 | 17 | 66 | 25 | 0.9382 | ||
216.55 € | 1 | 4 Days | 42 | 70 | 112 | 78 | 34 | 27 | 10 | 10.5 | 20 | 47 | 92 | 10 | 14 | M12 | 18 | 20 | 72 | 32 | 1.2380 |
Loading...
Basic information
| Main material | steel | Item | Floating Bearing Unit | RoHS | yes |
|---|
Configure
Basic Attributes
-
H1
-
B1
-
B
-
H
-
L
-
H2
-
L1
-
D3
-
H4
- 15
- 17
- 19
- 20
-
D2
-
E
-
H3
- 7
- 10
-
L2
-
D4
-
T
-
D1=Internal diameter
-
B2
- 52
- 60
- 66
- 72
-
Suitable for spindel Ø
- 16
- 20
- 25
- 32
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
