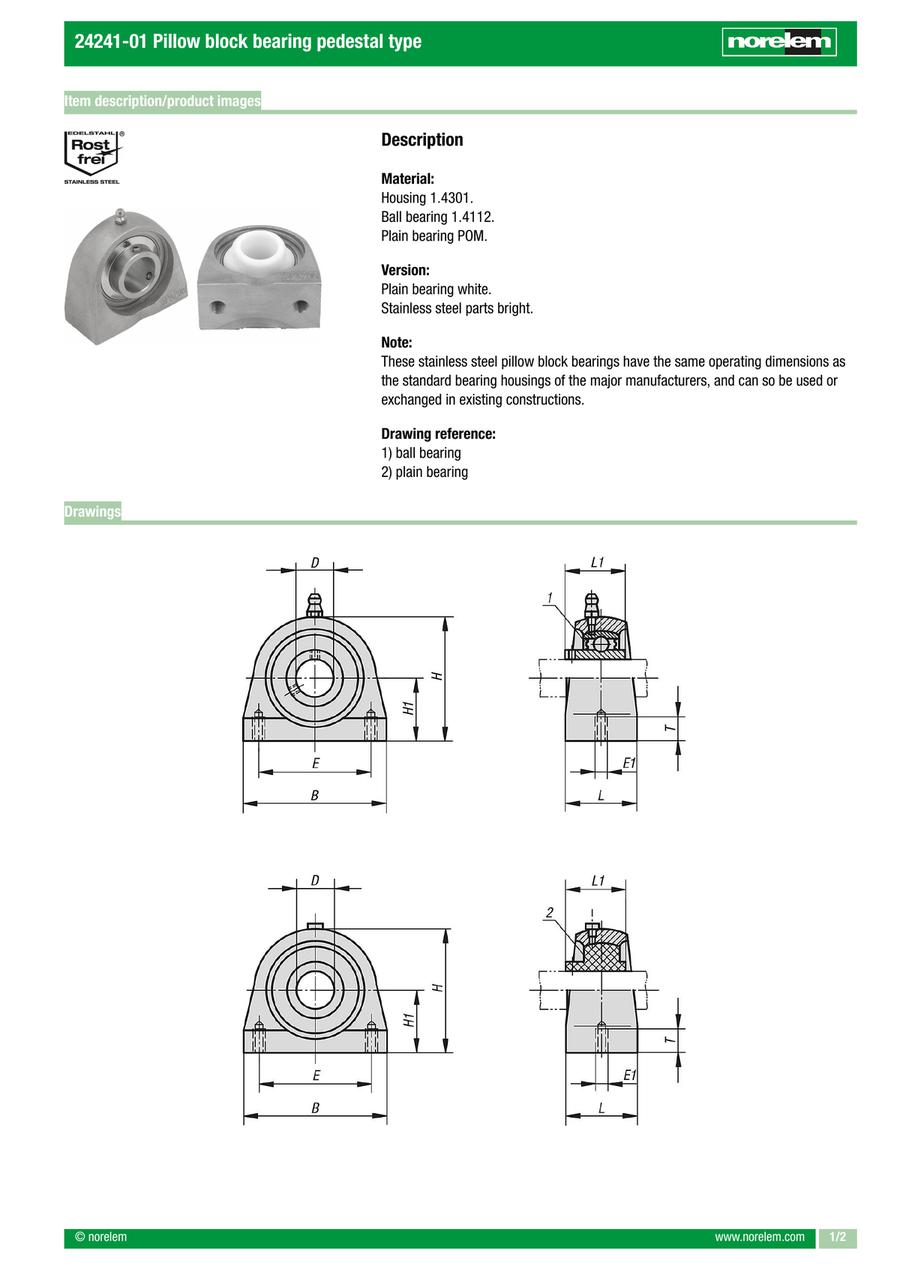

Pillow block bearing pedestal bearing, stainless steel (24241)
· Compensates for misalignments on the shaft
· Internal diameter of the bearings with plus-tolerance
· Maintenance-free and corrosion protected
· Ready to install
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | H1 | B | H | L | L1 | Component material | D=internal diameter | E1 | E=Hole spacing | Housing | T | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
82.11 € | 1 | 4 Days | 33.3 | 73 | 65 | 38 | 31 | POM | 12 | M8 | 50.8 | 201 | 10 | 0.5364 | ||
78.80 € | 1 | 4 Days | 33.3 | 73 | 65 | 38 | 31 | POM | 15 | M8 | 50.8 | 202 | 10 | 0.5370 | ||
73.29 € | 1 | 4 Days | 33.3 | 73 | 65 | 38 | 31 | POM | 20 | M8 | 50.8 | 204 | 10 | 0.5287 | ||
82.11 € | 1 | 4 Days | 33.3 | 73 | 65 | 38 | 31 | stainless steel | 12 | M8 | 50.8 | 201 | 10 | 0.6875 | ||
80.51 € | 1 | 4 Days | 36.7 | 76 | 71 | 38 | 34 | POM | 25 | M10 | 50.8 | 205 | 12.5 | 0.5798 | ||
115.93 € | 1 | 4 Days | 42.9 | 102 | 86 | 38 | 38.1 | POM | 30 | M10 | 76.1 | 206 | 12.5 | 0.9938 | ||
136.30 € | 1 | 4 Days | 47.6 | 108 | 95 | 48 | 42.9 | POM | 35 | M10 | 82.6 | 207 | 12.5 | 1.3100 | ||
165.78 € | 1 | 4 Days | 49.2 | 117 | 100 | 48 | 49.2 | POM | 40 | M12 | 88.9 | 208 | 15 | 1.4250 | ||
78.80 € | 1 | 4 Days | 33.3 | 73 | 65 | 38 | 31 | stainless steel | 15 | M8 | 50.8 | 202 | 10 | 0.6689 | ||
73.29 € | 1 | 4 Days | 33.3 | 73 | 65 | 38 | 31 | stainless steel | 20 | M8 | 50.8 | 204 | 10 | 0.6361 | ||
80.51 € | 1 | 4 Days | 36.7 | 76 | 71 | 38 | 34 | stainless steel | 25 | M10 | 50.8 | 205 | 12.5 | 0.7252 | ||
115.93 € | 1 | 4 Days | 42.9 | 102 | 86 | 38 | 38.1 | stainless steel | 30 | M10 | 76.1 | 206 | 12.5 | 1.2090 | ||
136.30 € | 1 | 4 Days | 47.6 | 108 | 95 | 48 | 42.9 | stainless steel | 35 | M10 | 82.6 | 207 | 12.5 | 1.6500 | ||
165.78 € | 1 | 4 Days | 49.2 | 117 | 100 | 48 | 49.2 | stainless steel | 40 | M12 | 88.9 | 208 | 15 | 1.8620 |
Loading...
Basic information
| Main material | stainless steel | Item | Pillow Block Bearing | Version 1 | pedestal bearing |
|---|---|---|---|---|---|
| Steel code | 1.4301 | RoHS | yes | PL Edelstahl | yes |
Configure
Basic Attributes
-
H1
-
B
-
H
-
L
-
L1
-
Component material
- POM
- stainless steel
-
D=internal diameter
-
E1
-
E=Hole spacing
-
Housing
-
T
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
