NORELEM

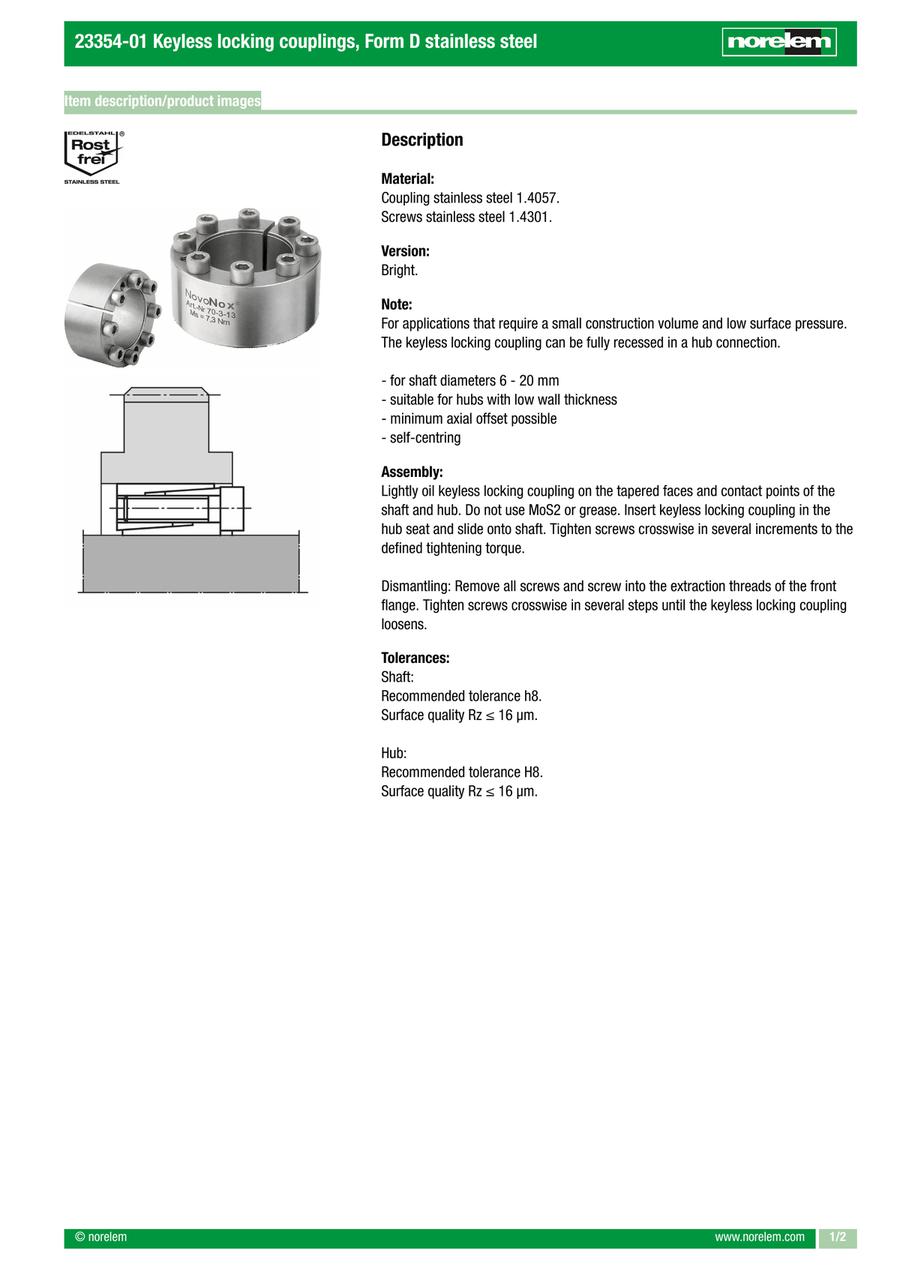

Keyless locking couplings, Form D stainless steel (23354-01)

Keyless locking couplings, Form D stainless steel (23354-01)

Part number:

Still undefined. 13 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    23354-01-0616
    23354-01-0717
    23354-01-0818
    23354-01-0920
    23354-01-1020
    23354-01-1122
    23354-01-1222
    23354-01-1426
    23354-01-1528
    23354-01-1632
    23354-01-1835
    23354-01-1935
    23354-01-2038

    D=internal diameter

    (mm)

    D1=Outside diameter

    (mm)

    B

    (mm)

    L1

    (mm)

    L2

    (mm)

    Max. axial force F kN with tightening torque MS

    Surface pressure on shaft P

    (N/mm²)

    No. of screws

    Surface pressure on hub P

    (N/mm²)

    Tightening torque MS

    (Nm)

    Max. torque M Nm with tightening torque MS

    Weight (ERP)

    (kg)

    		Minimum order quantity
    6
    16
    13.5
    10.5
    11
    0.9
    49
    3 x M2.5
    19
    0.5
    3
    0.0113
    1 pieces
    7
    17
    13.5
    10.5
    11
    0.9
    42
    3 x M2.5
    17
    0.5
    3
    0.0133
    1 pieces
    8
    18
    13.5
    10.5
    11
    0.9
    37
    3 x M2.5
    17
    0.5
    4
    0.0143
    1 pieces
    9
    20
    15.5
    12.5
    13
    1.2
    37
    4 x M2.5
    17
    0.5
    6
    0.0196
    1 pieces
    10
    20
    15.5
    12.5
    13
    1.2
    33
    4 x M2.5
    17
    0.5
    6
    0.0179
    1 pieces
    11
    22
    15.5
    12.5
    13
    1.2
    30
    4 x M2.5
    15
    0.5
    7
    0.0389
    1 pieces
    12
    22
    15.5
    12.5
    13
    1.2
    26
    4 x M2.5
    15
    0.5
    7
    0.0201
    1 pieces
    14
    26
    20
    16.5
    17
    1.9
    28
    4 x M3
    15
    0.9
    13
    0.0380
    1 pieces
    15
    28
    20
    16.5
    17
    1.9
    26
    4 x M3
    14
    0.9
    14
    0.0474
    1 pieces
    16
    32
    21
    16.5
    17
    3.5
    45
    4 x M4
    23
    2.2
    28
    0.0628
    1 pieces
    18
    35
    25
    20
    21
    3.5
    32
    4 x M4
    17
    2.2
    32
    0.0866
    1 pieces
    19
    35
    25
    20
    21
    3.5
    31
    4 x M4
    17
    2.2
    34
    0.1003
    1 pieces
    20
    38
    26
    20
    21
    5.5
    45
    4 x M5
    24
    4.2
    55
    0.1159
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    78.95 €
    ( 93.95 € )
    4 working days
    78.95 €
    ( 93.95 € )
    4 working days
    78.95 €
    ( 93.95 € )
    4 working days
    86.98 €
    ( 103.51 € )
    4 working days
    86.98 €
    ( 103.51 € )
    4 working days
    86.98 €
    ( 103.51 € )
    4 working days
    92.89 €
    ( 110.54 € )
    4 working days
    92.89 €
    ( 110.54 € )
    4 working days
    92.89 €
    ( 110.54 € )
    4 working days
    98.60 €
    ( 117.33 € )
    4 working days
    98.60 €
    ( 117.33 € )
    4 working days
    98.60 €
    ( 117.33 € )
    4 working days
    98.60 €
    ( 117.33 € )
    4 working days
  • 1

    • More Information

    Basic information

    · For medium torques

    · Recessed mounting possible

    · For shaft diameter from 6 to 20 mm

    · Self-centring
