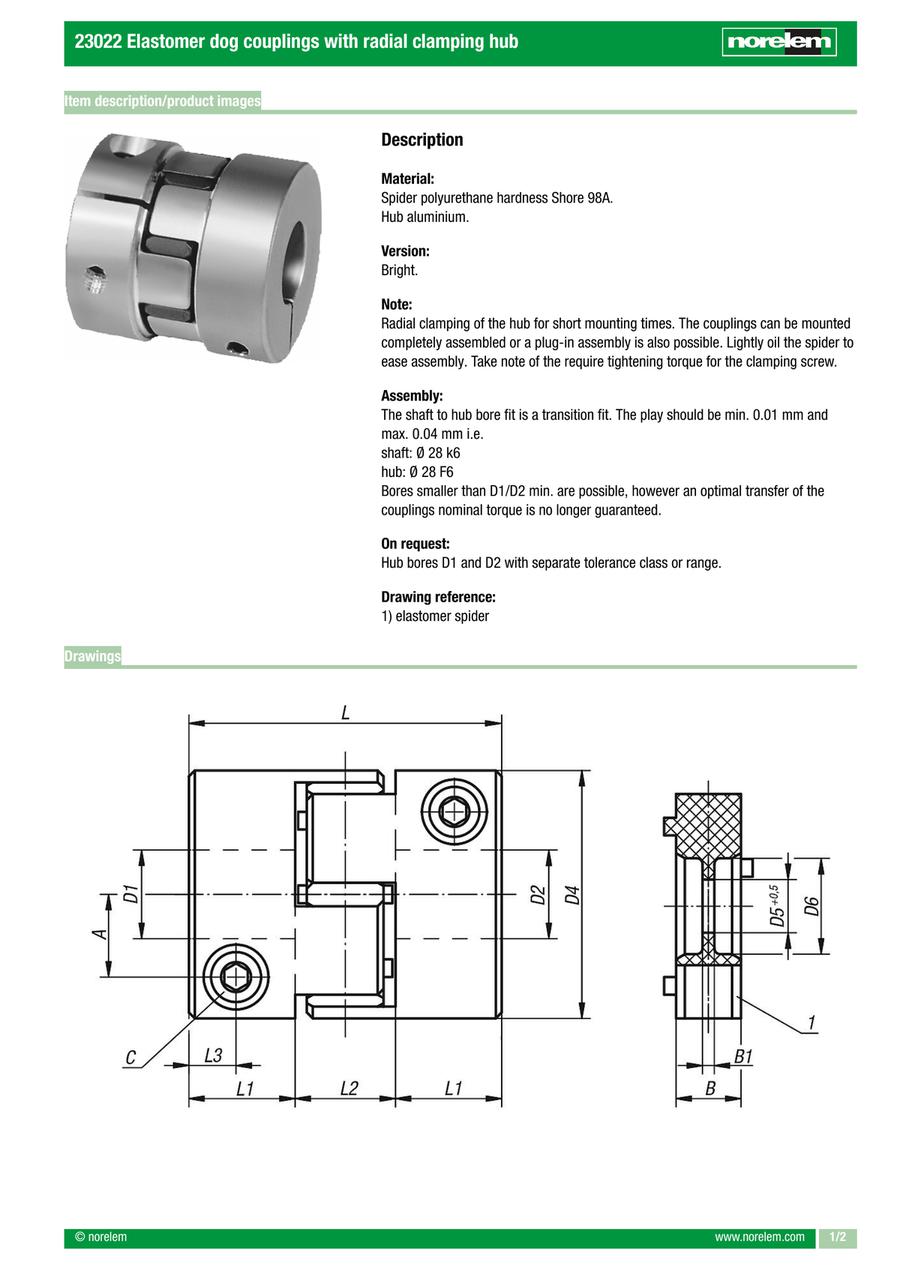

Elastomer dog couplings with radial clamping hub (23022)

Elastomer dog couplings with radial clamping hub (23022)

Part number:

Still undefined. 10 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    23022-002
    23022-005
    23022-008
    23022-015
    23022-030
    23022-060
    23022-150
    23022-300
    23022-500
    23022-700

    Allowable Torque Range

    (N•m)

    L=Length

    (mm)

    Nominal torque

    (Nm)

    D1/D2 max.

    (mm)

    D1/D2 min.

    (mm)

    D1/D2=fastening hole

    (mm)

    D4=Outside diameter

    (mm)

    D5

    (mm)

    D6

    (mm)

    A

    (mm)

    B

    (mm)

    B1

    (mm)

    L1

    (mm)

    L2

    (mm)

    L3

    (mm)

    Radial spring stiffness

    (N/mm)

    Moment of inertia

    (10⁻³ kgm²)

    Max. axial shaft displacement ±

    Static resistance to torsion

    (Nm/arcmin)

    Max. lateral shaft displacement

    Tightening torque of screws

    (Nm)

    Size

    C DIN 912-10.9

    Weight (ERP)

    (kg)

    		Minimum order quantity
    1.01 to 3.00
    22
    2
    5
    3
    3
    14
    -
    -
    4
    6
    -
    7
    8
    3.5
    405
    0.00016
    0.6
    0.007
    0.1
    0.5
    2
    M2
    0.0146
    1 pieces
    3.01 to 5.00
    30
    5
    8
    5
    5
    20
    -
    -
    6.5
    8
    -
    10
    10
    5
    510
    0.0011
    0.8
    0.016
    0.1
    1
    5
    M2.5
    0.0196
    1 pieces
    5.01 to 10.00
    40
    8
    15
    8
    6
    32
    8.5
    10.5
    10.5
    10
    2
    13.5
    13
    6
    600
    0.01
    0.5
    0.04
    0.1
    4
    8
    M4
    0.0820
    1 pieces
    10.01 to 20.00
    50
    15
    20
    10
    7
    40
    9.5
    18
    13.5
    12
    3
    17
    16
    8
    2100
    0.03
    0.5
    0.24
    0.1
    8
    15
    M5
    0.1579
    1 pieces
    20.01 to 50.00
    58
    30
    26
    13
    9
    50
    12.5
    27
    16.5
    14
    3
    20
    18
    9
    2500
    0.09
    0.5
    0.41
    0.1
    14
    30
    M6
    0.2714
    1 pieces
    50.01 to 100.00
    62
    60
    29
    15
    12
    60
    12.5
    27
    19.5
    14
    3
    22
    18
    10
    2600
    0.18
    0.5
    0.61
    0.1
    35
    60
    M8
    0.4150
    1 pieces
    100 to Less Than 500
    73
    150
    33
    22
    15
    70
    14.5
    30
    23
    15
    4
    26.5
    20
    12
    3300
    0.38
    1
    1.05
    0.1
    67
    150
    M10
    0.6530
    1 pieces
    100 to Less Than 500
    86
    300
    42
    30
    18
    85
    16.5
    38
    29
    18
    4
    31
    24
    14
    4500
    1
    1
    2
    0.12
    115
    300
    M12
    1.1520
    1 pieces
    500 to Less Than 1,000
    94
    500
    56
    38
    20
    100
    20.5
    47
    36
    22
    5
    33
    28
    16
    5900
    2.2
    1
    5.8
    0.15
    115
    500
    M12
    1.7400
    1 pieces
    500 to Less Than 1,000
    109
    700
    70
    40
    24
    120
    22.5
    58
    44
    25
    6
    38
    33
    18
    7000
    5.2
    1
    8
    0.15
    185
    700
    M14
    2.7690
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    77.83 €
    ( 92.62 € )
    4 working days
    90.40 €
    ( 107.58 € )
    4 working days
    124.32 €
    ( 147.94 € )
    4 working days
    150.89 €
    ( 179.56 € )
    4 working days
    179.99 €
    ( 214.19 € )
    4 working days
    213.50 €
    ( 254.06 € )
    4 working days
    249.09 €
    ( 296.42 € )
    4 working days
    416.53 €
    ( 495.67 € )
    4 working days
    636.26 €
    ( 757.15 € )
    4 working days
    811.26 €
    ( 965.40 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Suitable for high speeds

    · Vibration absorbing

    · Radially actuated clamp hub ensures markedly shorter assembly times

    · Free of play through preload of the coupling star

    · Simple assembly (push-fit system)
