Configure
- Nominal width W (mm)(mm)
- 10
- 16
- 25
- L=length
- 500
- 1000
- 1500
- 2000
- 2500
- 3000
- 3500
- 4000
- 5000
- Tension max.(N)
- 640
- 1120
- 1840
- Est. shipping days
- All
- Within 4 working days

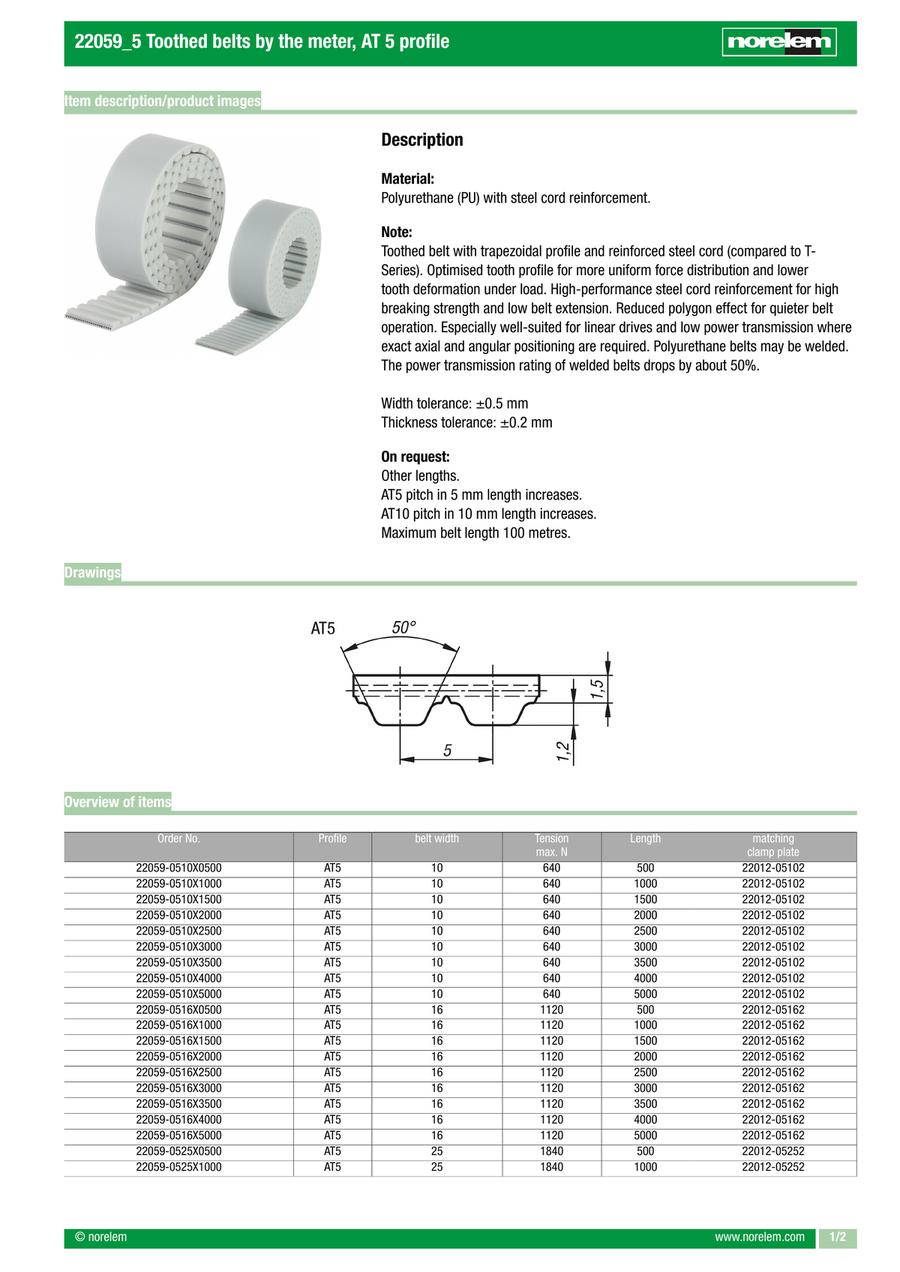

Toothed belts by the meter, AT 5 profile (22059)
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
10.35 € ( 12.32 € ) | 4 working days |
20.69 € ( 24.62 € ) | 4 working days |
31.04 € ( 36.94 € ) | 4 working days |
41.44 € ( 49.31 € ) | 4 working days |
51.78 € ( 61.62 € ) | 4 working days |
62.13 € ( 73.93 € ) | 4 working days |
72.46 € ( 86.23 € ) | 4 working days |
82.81 € ( 98.54 € ) | 4 working days |
103.54 € ( 123.21 € ) | 4 working days |
13.74 € ( 16.35 € ) | 4 working days |
27.43 € ( 32.64 € ) | 4 working days |
41.18 € ( 49.00 € ) | 4 working days |
54.91 € ( 65.34 € ) | 4 working days |
68.64 € ( 81.68 € ) | 4 working days |
82.34 € ( 97.98 € ) | 4 working days |
96.09 € ( 114.35 € ) | 4 working days |
109.82 € ( 130.69 € ) | 4 working days |
137.27 € ( 163.35 € ) | 4 working days |
24.72 € ( 29.42 € ) | 4 working days |
49.42 € ( 58.81 € ) | 4 working days |
74.13 € ( 88.21 € ) | 4 working days |
98.81 € ( 117.58 € ) | 4 working days |
123.54 € ( 147.01 € ) | 4 working days |
148.25 € ( 176.42 € ) | 4 working days |
172.97 € ( 205.83 € ) | 4 working days |
197.66 € ( 235.22 € ) | 4 working days |
247.08 € ( 294.03 € ) | 4 working days |
More Information
Basic information
· Uniform force distribution and reduced tooth deformation due to reinforced steel tension cords
· High break load
· Low belt elongation
· Smooth belt movement
· Belts can be welded.
