Configure

Belt Width Used(mm)
- 16
- 25
- 32
The Number of Teeth
- 15
- 16
- 18
- 19
- 20
- 22
- 24
- 25
- 26
- 27
- 28
- 30
- 32
- 36
- 40
- 44
- 48
- 60
Component material
- Steel
Form
- A
- B
Form definition
- With rim flanges
- Without rim flanges
Surface finish component
- Galvanised
B=Width
- 21
- 30
- 37
D=diameter
- 47.75
- 50.93
- 57.29
- 60.48
- 63.66
- 70.03
- 76.39
- 79.58
- 82.76
- 85.95
- 89.13
- 95.49
- 101.86
- 114.59
- 127.32
- 140.06
- 152.78
- 190.98
D1
- 32
- 35
- 40
- 44
- 46
- 52
- 58
- 60
- 65
- 70
- 80
- 88
- 95
- 110
D2 max.
- 18
- 20
- 22
- 24
- 28
- 30
- 32
- 35
- 40
- 46
- 48
- 60
D3
- 45.9
- 49.05
- 55.45
- 58.6
- 61.8
- 68.15
- 74.55
- 77.7
- 80.9
- 84.1
- 87.25
- 93.65
- 100
- 112.75
- 125.45
- 138.2
- 150.95
- 189.1
D4
- 51
- 54
- 60
- 66
- 75
- 83
- 87
- 91
- 93
- 97
- 106
- 119
- 131
L
- 31
- 40
- 47
Est. shipping days
- All
- Within 4 working days

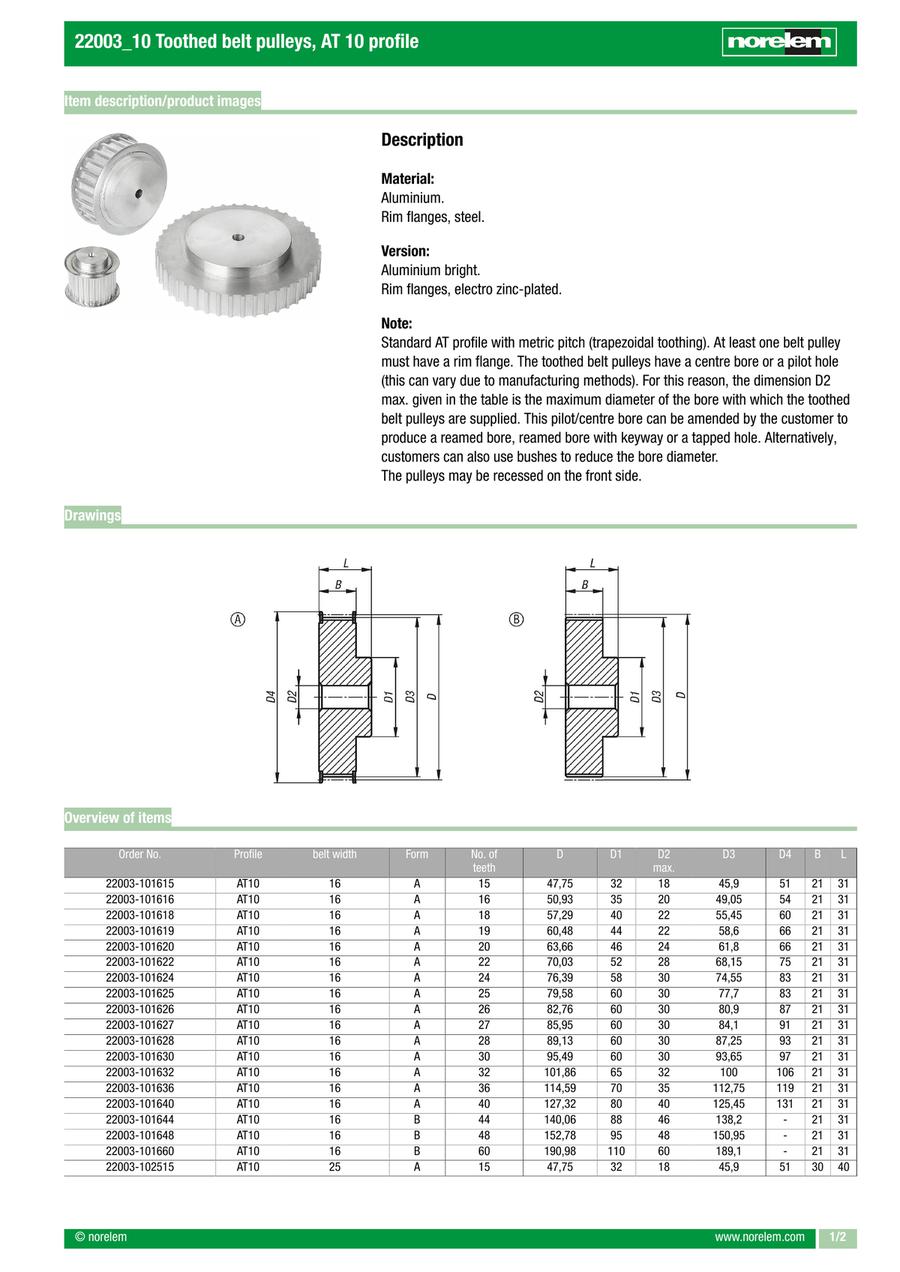

Toothed belt pulleys, AT 10 profile (22003)

Catalog

Part number:

Still undefined. 52 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Belt Width Used

(mm)

The Number of Teeth

Component material

Form

Form definition

Surface finish component

B=Width

D=diameter

D2 max.

Weight in kg (ERP)

(kg)

Minimum order quantity

16	15	Steel	A	With rim flanges	Galvanised	21	47.75	32	18	45.9	51	31	0.1160	1 pieces
16	16	Steel	A	With rim flanges	Galvanised	21	50.93	35	20	49.05	54	31	0.1340	1 pieces
16	18	Steel	A	With rim flanges	Galvanised	21	57.29	40	22	55.45	60	31	0.1670	1 pieces
16	19	Steel	A	With rim flanges	Galvanised	21	60.48	44	22	58.6	66	31	0.1936	1 pieces
16	20	Steel	A	With rim flanges	Galvanised	21	63.66	46	24	61.8	66	31	0.2162	1 pieces
16	22	Steel	A	With rim flanges	Galvanised	21	70.03	52	28	68.15	75	31	0.2651	1 pieces
16	24	Steel	A	With rim flanges	Galvanised	21	76.39	58	30	74.55	83	31	0.3280	1 pieces
16	25	Steel	A	With rim flanges	Galvanised	21	79.58	60	30	77.7	83	31	0.3462	1 pieces
16	26	Steel	A	With rim flanges	Galvanised	21	82.76	60	30	80.9	87	31	0.3766	1 pieces
16	27	Steel	A	With rim flanges	Galvanised	21	85.95	60	30	84.1	91	31	0.3959	1 pieces
16	28	Steel	A	With rim flanges	Galvanised	21	89.13	60	30	87.25	93	31	0.4177	1 pieces
16	30	Steel	A	With rim flanges	Galvanised	21	95.49	60	30	93.65	97	31	0.4572	1 pieces
16	32	Steel	A	With rim flanges	Galvanised	21	101.86	65	32	100	106	31	0.5323	1 pieces
16	36	Steel	A	With rim flanges	Galvanised	21	114.59	70	35	112.75	119	31	0.6230	1 pieces
16	40	Steel	A	With rim flanges	Galvanised	21	127.32	80	40	125.45	131	31	0.7367	1 pieces
16	44	-	B	Without rim flanges	-	21	140.06	88	46	138.2	-	31	0.9991	1 pieces
16	48	-	B	Without rim flanges	-	21	152.78	95	48	150.95	-	31	1.1930	1 pieces
16	60	-	B	Without rim flanges	-	21	190.98	110	60	189.1	-	31	1.5250	1 pieces
25	15	Steel	A	With rim flanges	Galvanised	30	47.75	32	18	45.9	51	40	0.1483	1 pieces
25	16	Steel	A	With rim flanges	Galvanised	30	50.93	35	20	49.05	54	40	0.1686	1 pieces
25	18	Steel	A	With rim flanges	Galvanised	30	57.29	40	22	55.45	60	40	0.2167	1 pieces
25	19	Steel	A	With rim flanges	Galvanised	30	60.48	44	22	58.6	66	40	0.2528	1 pieces
25	20	Steel	A	With rim flanges	Galvanised	30	63.66	46	24	61.8	66	40	0.2829	1 pieces
25	22	Steel	A	With rim flanges	Galvanised	30	70.03	52	28	68.15	75	40	0.3523	1 pieces
25	24	Steel	A	With rim flanges	Galvanised	30	76.39	58	30	74.55	83	40	0.4146	1 pieces
25	25	Steel	A	With rim flanges	Galvanised	30	79.58	60	30	77.7	83	40	0.4527	1 pieces
25	26	Steel	A	With rim flanges	Galvanised	30	82.76	60	30	80.9	87	40	0.4895	1 pieces
25	27	Steel	A	With rim flanges	Galvanised	30	85.95	60	30	84.1	91	40	0.5227	1 pieces
25	28	Steel	A	With rim flanges	Galvanised	30	89.13	60	30	87.25	93	40	0.5551	1 pieces
25	30	Steel	A	With rim flanges	Galvanised	30	95.49	60	30	93.65	97	40	0.6171	1 pieces
25	32	Steel	A	With rim flanges	Galvanised	30	101.86	65	32	100	106	40	0.7116	1 pieces
25	36	Steel	A	With rim flanges	Galvanised	30	114.59	70	35	112.75	119	40	0.8976	1 pieces
25	40	Steel	A	With rim flanges	Galvanised	30	127.32	80	40	125.45	131	40	1.1730	1 pieces
25	44	-	B	Without rim flanges	-	30	140.06	88	46	138.2	-	40	1.3390	1 pieces
25	48	-	B	Without rim flanges	-	30	152.78	95	48	150.95	-	40	1.6050	1 pieces
25	60	-	B	Without rim flanges	-	30	190.98	110	60	189.1	-	40	2.5070	1 pieces
32	18	Steel	A	With rim flanges	Galvanised	37	57.29	40	22	55.45	60	47	0.2551	1 pieces
32	19	Steel	A	With rim flanges	Galvanised	37	60.48	44	22	58.6	66	47	0.2956	1 pieces
32	20	Steel	A	With rim flanges	Galvanised	37	63.66	46	24	61.8	66	47	0.3272	1 pieces
32	22	Steel	A	With rim flanges	Galvanised	37	70.03	52	28	68.15	75	47	0.4053	1 pieces
32	24	Steel	A	With rim flanges	Galvanised	37	76.39	58	30	74.55	83	47	0.4914	1 pieces
32	25	Steel	A	With rim flanges	Galvanised	37	79.58	60	30	77.7	83	47	0.5312	1 pieces
32	26	Steel	A	With rim flanges	Galvanised	37	82.76	60	30	80.9	87	47	0.5730	1 pieces
32	27	Steel	A	With rim flanges	Galvanised	37	85.95	60	30	84.1	91	47	0.6165	1 pieces
32	28	Steel	A	With rim flanges	Galvanised	37	89.13	60	30	87.25	93	47	0.6490	1 pieces
32	30	Steel	A	With rim flanges	Galvanised	37	95.49	60	30	93.65	97	47	0.7349	1 pieces
32	32	Steel	A	With rim flanges	Galvanised	37	101.86	65	32	100	106	47	0.8534	1 pieces
32	36	Steel	A	With rim flanges	Galvanised	37	114.59	70	35	112.75	119	47	1.0750	1 pieces
32	40	Steel	A	With rim flanges	Galvanised	37	127.32	80	40	125.45	131	47	1.1030	1 pieces
32	44	-	B	Without rim flanges	-	37	140.06	88	46	138.2	-	47	1.6140	1 pieces
32	48	-	B	Without rim flanges	-	37	152.78	95	48	150.95	-	47	1.4900	1 pieces
32	60	-	B	Without rim flanges	-	37	190.98	110	60	189.1	-	47	2.2800	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

13.41 € ( 15.96 € )	4 working days
13.91 € ( 16.55 € )	4 working days
16.62 € ( 19.78 € )	4 working days
17.91 € ( 21.31 € )	4 working days
18.51 € ( 22.03 € )	4 working days
21.45 € ( 25.53 € )	4 working days
23.97 € ( 28.52 € )	4 working days
25.19 € ( 29.98 € )	4 working days
26.88 € ( 31.99 € )	4 working days
29.60 € ( 35.22 € )	4 working days
29.71 € ( 35.35 € )	4 working days
31.01 € ( 36.90 € )	4 working days
32.17 € ( 38.28 € )	4 working days
38.01 € ( 45.23 € )	4 working days
47.27 € ( 56.25 € )	4 working days
59.93 € ( 71.32 € )	4 working days
64.21 € ( 76.41 € )	4 working days
106.80 € ( 127.09 € )	4 working days
15.94 € ( 18.97 € )	4 working days
16.82 € ( 20.02 € )	4 working days
19.90 € ( 23.68 € )	4 working days
21.60 € ( 25.70 € )	4 working days
22.27 € ( 26.50 € )	4 working days
25.92 € ( 30.84 € )	4 working days
29.24 € ( 34.80 € )	4 working days
30.69 € ( 36.52 € )	4 working days
32.66 € ( 38.87 € )	4 working days
36.06 € ( 42.91 € )	4 working days
36.25 € ( 43.14 € )	4 working days
37.85 € ( 45.04 € )	4 working days
39.40 € ( 46.89 € )	4 working days
46.48 € ( 55.31 € )	4 working days
57.97 € ( 68.98 € )	4 working days
73.97 € ( 88.02 € )	4 working days
79.42 € ( 94.51 € )	4 working days
131.38 € ( 156.34 € )	4 working days
23.98 € ( 28.54 € )	4 working days
26.92 € ( 32.03 € )	4 working days
28.97 € ( 34.47 € )	4 working days
30.42 € ( 36.20 € )	4 working days
31.56 € ( 37.56 € )	4 working days
31.84 € ( 37.89 € )	4 working days
33.88 € ( 40.32 € )	4 working days
35.63 € ( 42.40 € )	4 working days
35.80 € ( 42.60 € )	4 working days
40.85 € ( 48.61 € )	4 working days
44.82 € ( 53.34 € )	4 working days
53.12 € ( 63.21 € )	4 working days
66.43 € ( 79.05 € )	4 working days
84.86 € ( 100.98 € )	4 working days
91.26 € ( 108.60 € )	4 working days
150.38 € ( 178.95 € )	4 working days

More Information

Basic information

Basic information

· Standard AT profile

· Trapezoidal toothing with metric pitch
