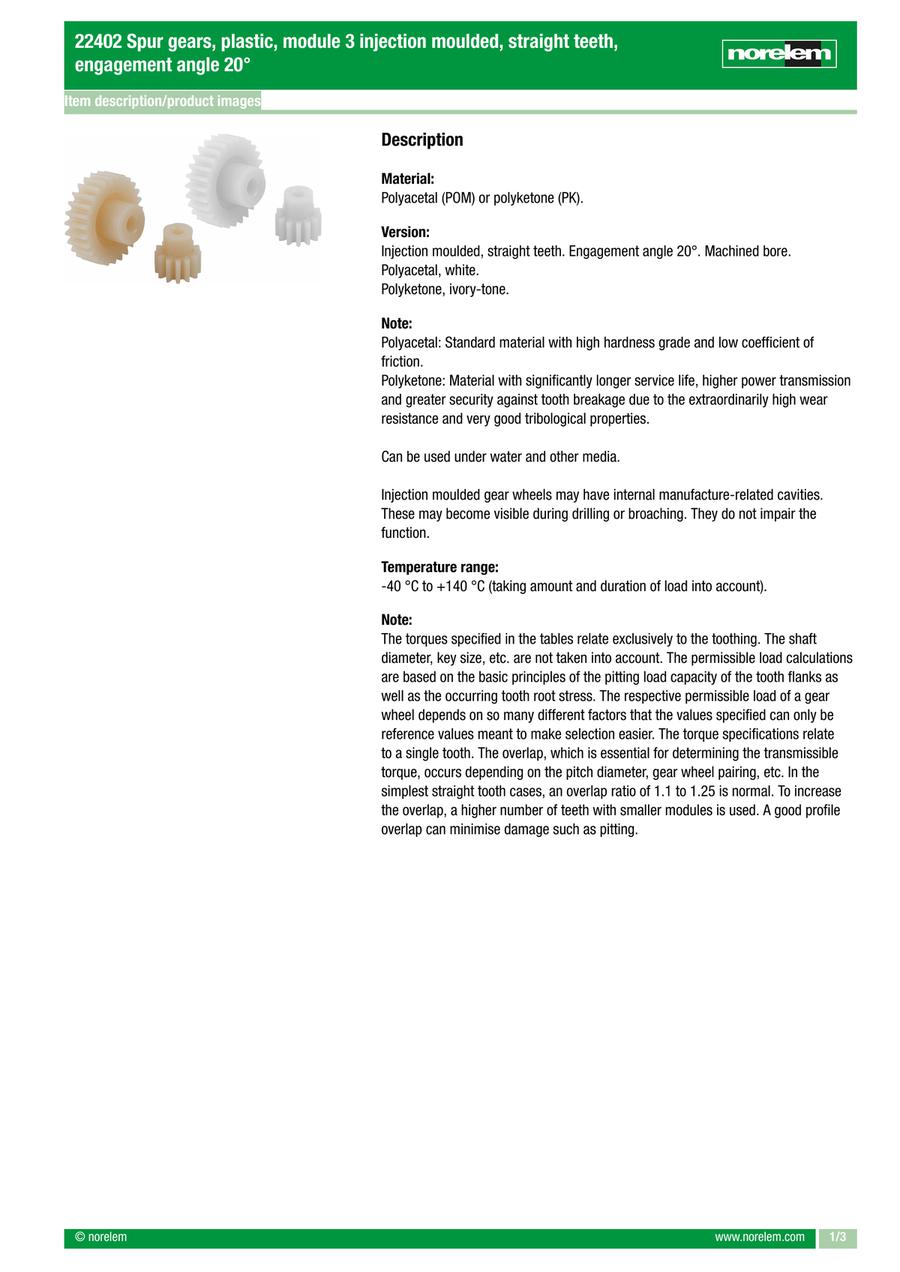

Spur gears, plastic, module 3 injection moulded, straight teeth, engagement angle 20° (22402)
· Lower coefficient of friction
· Long service life
· High security against tooth breakage
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Number of Teeth (Teeth) | Main material | D | D1=Pitch circle diameter (mm) | D2=Fastening hole | D3 (mm) | D4 (mm) | B1 (mm) | Max. Torque (Ncm) | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
8.34 € | 1 | 4 Days | 12 | Polyacetal | 42 | 36 | 12 | 24 | - | 19 | 322.3 | 0.0303 | ||
8.49 € | 1 | 4 Days | 13 | Polyacetal | 45 | 39 | 12 | 24 | - | 19 | 349 | 0.0342 | ||
8.87 € | 1 | 4 Days | 14 | Polyacetal | 48 | 42 | 12 | 24 | - | 19 | 376 | 0.0395 | ||
9.09 € | 1 | 4 Days | 15 | Polyacetal | 51 | 45 | 12 | 24 | 30.5 | 8 | 402.9 | 0.0407 | ||
9.27 € | 1 | 4 Days | 16 | Polyacetal | 54 | 48 | 12 | 24 | 30.5 | 8 | 429.7 | 0.0465 | ||
9.55 € | 1 | 4 Days | 17 | Polyacetal | 57 | 51 | 12 | 24 | 30.5 | 8 | 456.6 | 0.0521 | ||
9.99 € | 1 | 4 Days | 18 | Polyacetal | 60 | 54 | 12 | 24 | 38 | 8 | 483.4 | 0.0512 | ||
10.43 € | 1 | 4 Days | 19 | Polyacetal | 63 | 57 | 12 | 24 | 38 | 8 | 510.3 | 0.0586 | ||
11.10 € | 1 | 4 Days | 20 | Polyacetal | 66 | 60 | 12 | 24 | 38 | 8 | 537.2 | 0.0657 | ||
11.44 € | 1 | 4 Days | 21 | Polyacetal | 69 | 63 | 12 | 24 | 45 | 8 | 564 | 0.0648 | ||
11.83 € | 1 | 4 Days | 22 | Polyacetal | 72 | 66 | 12 | 24 | 45 | 8 | 590.9 | 0.0723 | ||
12.12 € | 1 | 4 Days | 23 | Polyacetal | 75 | 69 | 12 | 24 | 52 | 8 | 617.7 | 0.0756 | ||
12.50 € | 1 | 4 Days | 24 | Polyacetal | 78 | 72 | 12 | 24 | 52 | 8 | 644.6 | 0.0821 | ||
12.65 € | 1 | 4 Days | 25 | Polyacetal | 81 | 75 | 14 | 28 | 58 | 8 | 671.5 | 0.0870 | ||
12.79 € | 1 | 4 Days | 26 | Polyacetal | 84 | 78 | 14 | 28 | 58 | 8 | 698.3 | 0.0968 | ||
12.99 € | 1 | 4 Days | 27 | Polyacetal | 87 | 81 | 14 | 28 | 58 | 8 | 725.2 | 0.1067 | ||
13.14 € | 1 | 4 Days | 28 | Polyacetal | 90 | 84 | 14 | 28 | 65 | 8 | 752.1 | 0.1003 | ||
13.30 € | 1 | 4 Days | 30 | Polyacetal | 96 | 90 | 14 | 28 | 68 | 8 | 805.8 | 0.1220 | ||
13.50 € | 1 | 4 Days | 32 | Polyacetal | 102 | 96 | 16 | 32 | 69 | 8 | 859.5 | 0.1513 | ||
13.74 € | 1 | 4 Days | 33 | Polyacetal | 105 | 99 | 16 | 32 | 69 | 8 | 886.4 | 0.1629 | ||
13.84 € | 1 | 4 Days | 34 | Polyacetal | 108 | 102 | 16 | 32 | 78 | 8 | 913.2 | 0.1616 | ||
13.91 € | 1 | 4 Days | 35 | Polyacetal | 111 | 105 | 16 | 32 | 78 | 8 | 940.1 | 0.1731 | ||
14.01 € | 1 | 4 Days | 38 | Polyacetal | 120 | 114 | 16 | 32 | 87 | 8 | 1020.7 | 0.1936 | ||
14.16 € | 1 | 4 Days | 40 | Polyacetal | 126 | 120 | 16 | 32 | 93 | 8 | 1074.4 | 0.2139 | ||
14.42 € | 1 | 4 Days | 45 | Polyacetal | 141 | 135 | 16 | 32 | 108 | 8 | 1208.7 | 0.2509 | ||
50.54 € | 1 | 4 Days | 50 | Polyacetal | 156 | 150 | 20 | 40 | 133 | 8 | 1343 | 0.2834 | ||
53.42 € | 1 | 4 Days | 55 | Polyacetal | 171 | 165 | 20 | 40 | 148 | 8 | 1477.3 | 0.3322 | ||
56.32 € | 1 | 4 Days | 60 | Polyacetal | 186 | 180 | 20 | 40 | 163 | 8 | 1611.6 | 0.3896 | ||
59.19 € | 1 | 4 Days | 65 | Polyacetal | 201 | 195 | 20 | 40 | 178 | 8 | 1745.9 | 0.4358 | ||
62.13 € | 1 | 4 Days | 70 | Polyacetal | 216 | 210 | 20 | 40 | 193 | 8 | 1880.2 | 0.4969 | ||
65.01 € | 1 | 4 Days | 75 | Polyacetal | 231 | 225 | 20 | 40 | 208 | 8 | 2014.5 | 0.5576 | ||
10.03 € | 1 | 4 Days | 12 | Polyketone | 42 | 36 | 12 | 24 | - | 19 | 338.4 | 0.0264 | ||
10.21 € | 1 | 4 Days | 13 | Polyketone | 45 | 39 | 12 | 24 | - | 19 | 366.6 | 0.0309 | ||
10.68 € | 1 | 4 Days | 14 | Polyketone | 48 | 42 | 12 | 24 | - | 19 | 394.8 | 0.0351 | ||
10.97 € | 1 | 4 Days | 15 | Polyketone | 51 | 45 | 12 | 24 | 30.5 | 8 | 423 | 0.0361 | ||
11.25 € | 1 | 4 Days | 16 | Polyketone | 54 | 48 | 12 | 24 | 30.5 | 8 | 451.2 | 0.0410 | ||
11.47 € | 1 | 4 Days | 17 | Polyketone | 57 | 51 | 12 | 24 | 30.5 | 8 | 479.4 | 0.0461 | ||
12.01 € | 1 | 4 Days | 18 | Polyketone | 60 | 54 | 12 | 24 | 38 | 8 | 507.6 | 0.0459 | ||
12.59 € | 1 | 4 Days | 19 | Polyketone | 63 | 57 | 12 | 24 | 38 | 8 | 535.8 | 0.0514 | ||
13.40 € | 1 | 4 Days | 20 | Polyketone | 66 | 60 | 12 | 24 | 38 | 8 | 564 | 0.0579 | ||
13.81 € | 1 | 4 Days | 21 | Polyketone | 69 | 63 | 12 | 24 | 45 | 8 | 592.2 | 0.0577 | ||
14.24 € | 1 | 4 Days | 22 | Polyketone | 72 | 66 | 12 | 24 | 45 | 8 | 620.4 | 0.0650 | ||
14.66 € | 1 | 4 Days | 23 | Polyketone | 75 | 69 | 12 | 24 | 52 | 8 | 648.6 | 0.0653 | ||
15.10 € | 1 | 4 Days | 24 | Polyketone | 78 | 72 | 12 | 24 | 52 | 8 | 676.8 | 0.0728 | ||
15.24 € | 1 | 4 Days | 25 | Polyketone | 81 | 75 | 14 | 28 | 58 | 8 | 705.1 | 0.0778 | ||
15.43 € | 1 | 4 Days | 26 | Polyketone | 84 | 78 | 14 | 28 | 58 | 8 | 733.3 | 0.0857 | ||
15.59 € | 1 | 4 Days | 27 | Polyketone | 87 | 81 | 14 | 28 | 58 | 8 | 761.5 | 0.0942 | ||
15.84 € | 1 | 4 Days | 28 | Polyketone | 90 | 84 | 14 | 28 | 65 | 8 | 789.7 | 0.0913 | ||
16.04 € | 1 | 4 Days | 30 | Polyketone | 96 | 90 | 14 | 28 | 68 | 8 | 846.1 | 0.1092 | ||
16.31 € | 1 | 4 Days | 32 | Polyketone | 102 | 96 | 16 | 32 | 69 | 8 | 902.5 | 0.1340 | ||
16.50 € | 1 | 4 Days | 33 | Polyketone | 105 | 99 | 16 | 32 | 69 | 8 | 930.7 | 0.1437 | ||
16.74 € | 1 | 4 Days | 34 | Polyketone | 108 | 102 | 16 | 32 | 78 | 8 | 958.9 | 0.1414 | ||
16.78 € | 1 | 4 Days | 35 | Polyketone | 111 | 105 | 16 | 32 | 78 | 8 | 987.1 | 0.1525 | ||
16.89 € | 1 | 4 Days | 38 | Polyketone | 120 | 114 | 16 | 32 | 87 | 8 | 1071.7 | 0.1736 | ||
17.07 € | 1 | 4 Days | 40 | Polyketone | 126 | 120 | 16 | 32 | 93 | 8 | 1128.1 | 0.1873 | ||
17.39 € | 1 | 4 Days | 45 | Polyketone | 141 | 135 | 16 | 32 | 108 | 8 | 1269.1 | 0.2232 | ||
60.89 € | 1 | 4 Days | 50 | Polyketone | 156 | 150 | 20 | 40 | 133 | 8 | 1410.1 | 0.2571 | ||
64.35 € | 1 | 4 Days | 55 | Polyketone | 171 | 165 | 20 | 40 | 148 | 8 | 1551.2 | 0.2465 | ||
67.88 € | 1 | 4 Days | 60 | Polyketone | 186 | 180 | 20 | 40 | 163 | 8 | 1692.2 | 0.3457 | ||
71.33 € | 1 | 4 Days | 65 | Polyketone | 201 | 195 | 20 | 40 | 178 | 8 | 1833.2 | 0.3949 |
Loading...
Basic information
| Tooth Width B(mm) | 19 | Item | Spur gear | Version 1 | Straight |
|---|---|---|---|---|---|
| Version 2 | With hub | L(mm) | 34 | RoHS | Yes |
Configure
Basic Attributes
-
Number of Teeth(Teeth)
-
Main material
- Polyacetal
- Polyketone
-
D
-
D1=Pitch circle diameter(mm)
-
D2=Fastening hole
-
D3(mm)
-
D4(mm)
-
B1(mm)
-
Max. Torque(Ncm)
- 322.3
- 338.4
- 349
- 366.6
- 376
- 394.8
- 402.9
- 423
- 429.7
- 451.2
- 456.6
- 479.4
- 483.4
- 507.6
- 510.3
- 535.8
- 537.2
- 564
- 590.9
- 592.2
- 617.7
- 620.4
- 644.6
- 648.6
- 671.5
- 676.8
- 698.3
- 705.1
- 725.2
- 733.3
- 752.1
- 761.5
- 789.7
- 805.8
- 846.1
- 859.5
- 886.4
- 902.5
- 913.2
- 930.7
- 940.1
- 958.9
- 987.1
- 1020.7
- 1071.7
- 1074.4
- 1128.1
- 1208.7
- 1269.1
- 1343
- 1410.1
- 1477.3
- 1551.2
- 1611.6
- 1692.2
- 1745.9
- 1833.2
- 1880.2
- 1974.2
- 2014.5
- 2115.2
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
