NORELEM

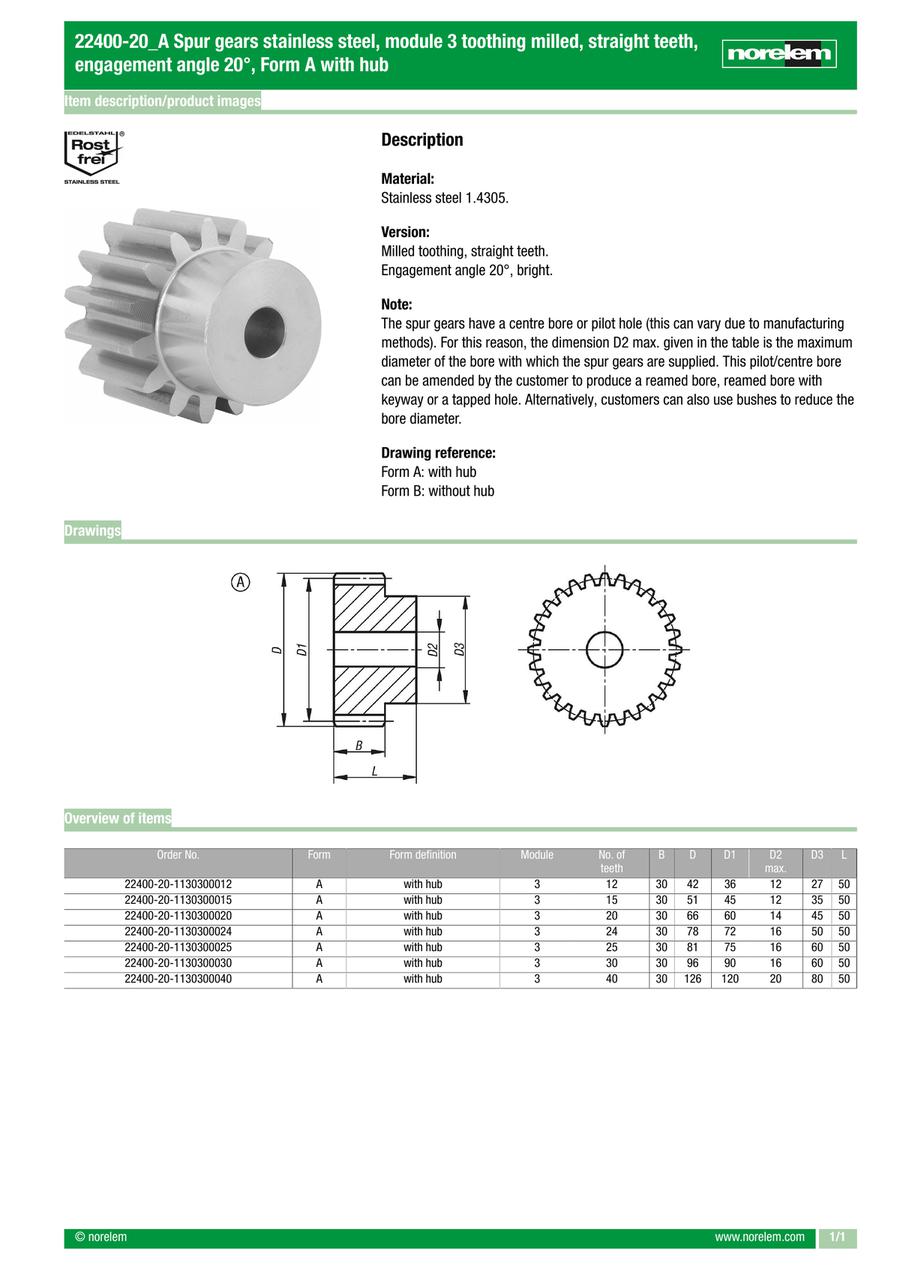

Spur gears stainless steel, module 3 toothing milled, straight teeth, engagement angle 20°, Form A with hub (22400-20)

Spur gears stainless steel, module 3 toothing milled, straight teeth, engagement angle 20°, Form A with hub (22400-20)

Part number:

Still undefined. 7 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    22400-20-1130300012
    22400-20-1130300015
    22400-20-1130300020
    22400-20-1130300024
    22400-20-1130300025
    22400-20-1130300030
    22400-20-1130300040

    Number of Teeth

    (Teeth)

    D2 max.

    (Ø)

    D

    D1=Pitch circle diameter

    (mm)

    D3

    (mm)

    Weight (ERP)

    (kg)

    		Minimum order quantity
    12
    12
    42
    36
    27
    0.2720
    1 pieces
    15
    12
    51
    45
    35
    0.4710
    1 pieces
    20
    14
    66
    60
    45
    0.8446
    1 pieces
    24
    16
    78
    72
    50
    1.1760
    1 pieces
    25
    16
    81
    75
    60
    1.3900
    1 pieces
    30
    16
    96
    90
    60
    1.8500
    1 pieces
    40
    20
    126
    120
    80
    3.3100
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    63.22 €
    ( 75.23 € )
    4 working days
    70.66 €
    ( 84.09 € )
    4 working days
    98.74 €
    ( 117.50 € )
    4 working days
    117.69 €
    ( 140.05 € )
    4 working days
    132.87 €
    ( 158.12 € )
    4 working days
    183.83 €
    ( 218.76 € )
    4 working days
    258.96 €
    ( 308.16 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Application sectors: machine construction, plant construction, material handling, robotics

    · Drill hole can be machined afterward

    · Corrosion-resistant
