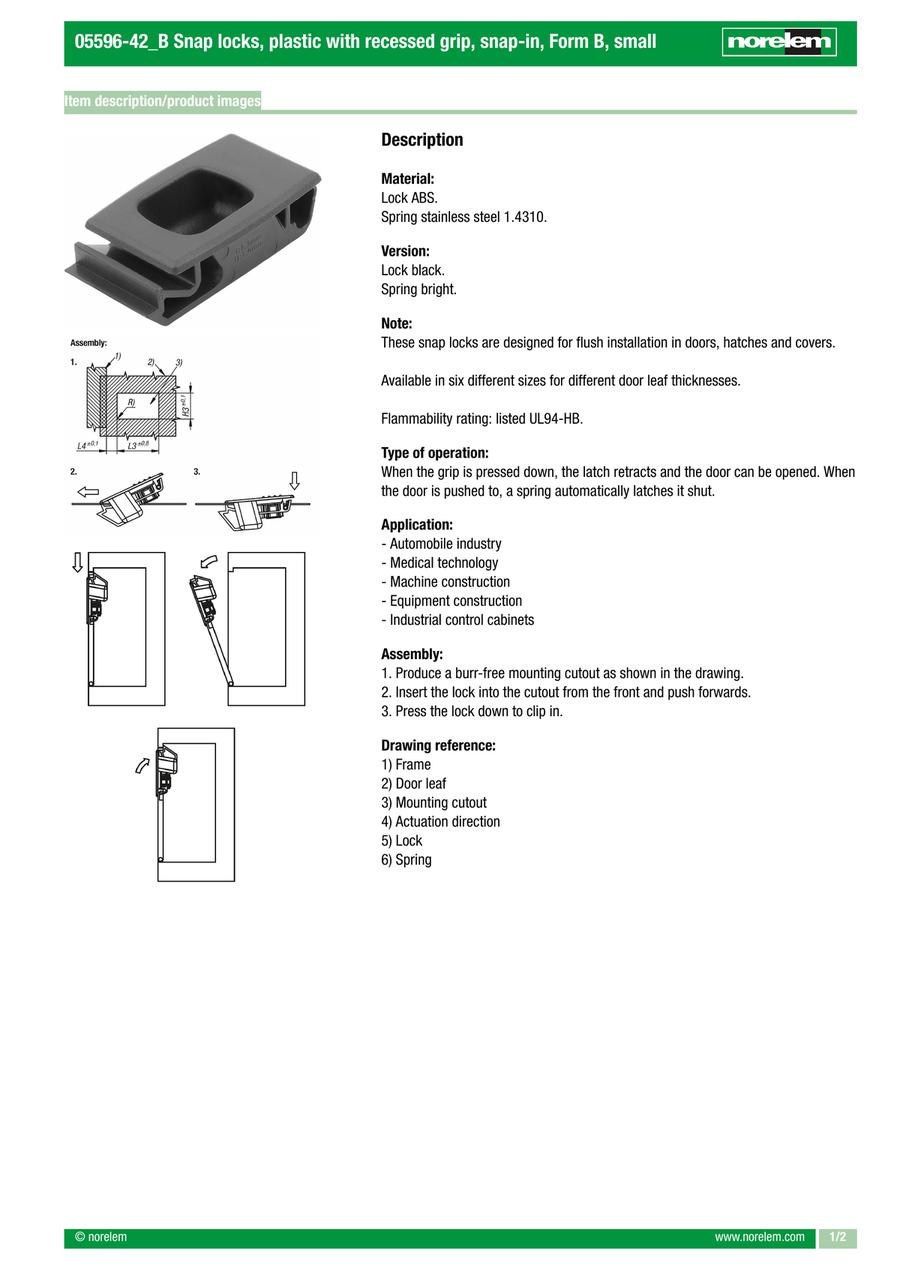

Snap lock schale, snap-in, form B small, ABS (05596)
· Easy to operate
· For door leaf thickness 1.2 - 2.2 mm
· For limited space requirements
· Quick and easy mounting without tools
· Flush installation
· For door leaf thickness 1.2 - 2.2 mm
· For limited space requirements
· Quick and easy mounting without tools
· Flush installation
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 05596-42-1315300 |
| 05596-42-1615300 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | S = Door thickness in | |
|---|---|---|---|---|---|
4.93 € | 1 | 4 Days | 1.3 | ||
4.93 € | 1 | 4 Days | 1.6 |
Loading...
Basic information
| Component material | Stainless steel | Form | B | Form definition | Small |
|---|---|---|---|---|---|
| Item | Snap lock | Main colour | Black | Version 2 | Snap-in |
| B=Width(mm) | 30.5 | B1(mm) | 25.1 | H=Height(mm) | 13 |
| H1 = Total holding area(mm) | 6.7 | H2(mm) | 2 | H3(mm) | 25.4 |
| L=Length(mm) | 47 | L1(mm) | 55 | L2(mm) | 4 |
| L3(mm) | 38.1 | L4(mm) | 12.7 | R(mm) | Max. 0.25 |
| Temperature range(°C) | -40 To 60 | Steel code | 1.4310 | RoHS | Yes |
| PL Edelstahl | No | Weight (ERP)(kg) | 0.0140 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
