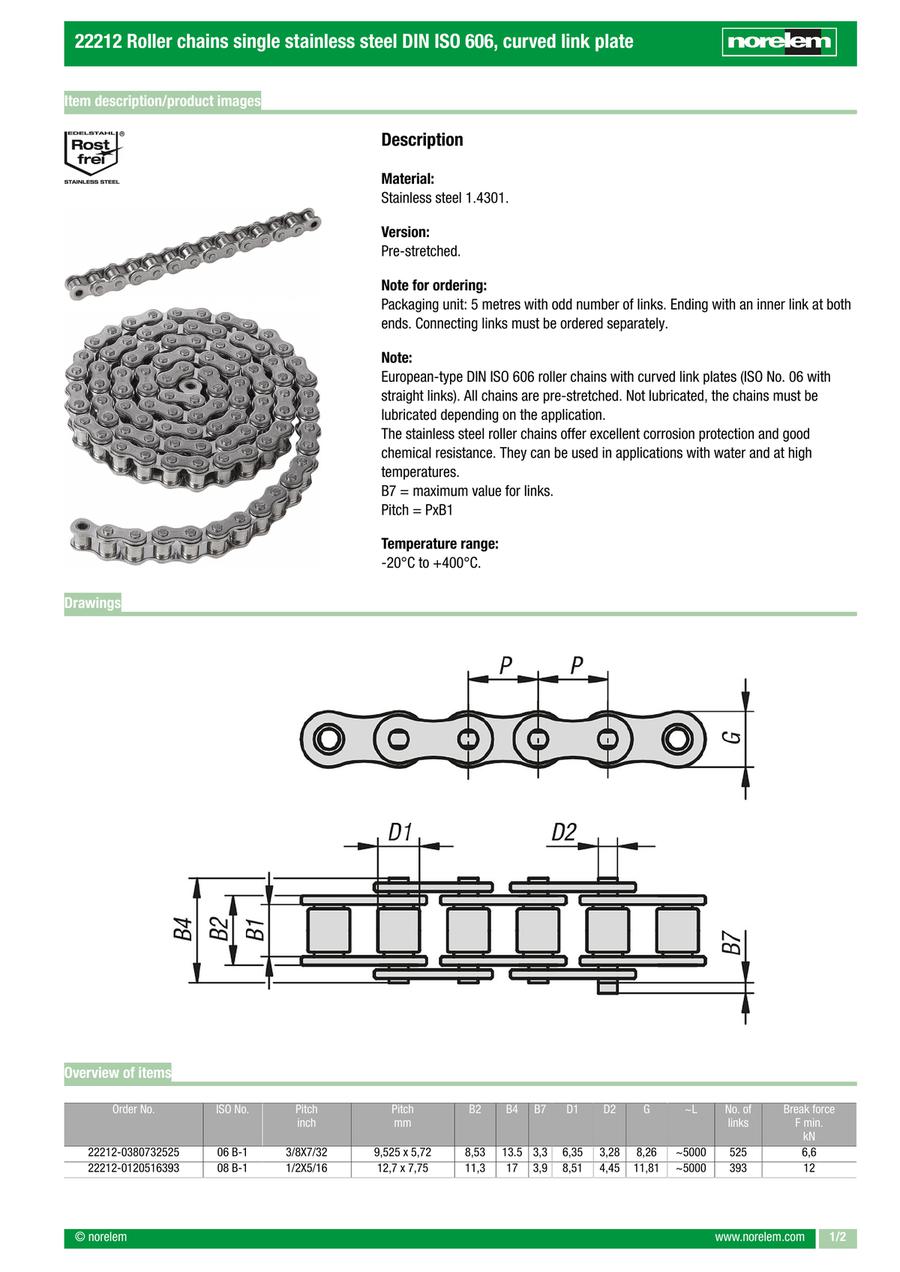

Roller chain 1x, stainless steel (22212)
· Low bearing loads
· Very good corrosion protection
· Used as drive, transport, conveyor and hoist chains
· Temperature range -20° C to +400 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 22212-0120516393 |
| 22212-0340716263 |
| 22212-0380732525 |
| 22212-0580308315 |
| 22212-1001702197 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | G | B7 | B2 | D2 | D1 | B4 | Version 2 | ISO No. | Pitch (mm) | G=Number of parts | Break force F min. (kN) | Division (PxB1) | Division inches (PxB1) | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
242.73 € | 1 | 4 Days | 11.81 | 3.9 | 11.3 | 4.45 | 8.51 | 17 | curved bracket | 08 B-1 | 12.7 x 7.75 | 393 | 12 | - | 1/2X5/16 | 3.5950 | ||
337.78 € | 1 | 4 Days | 16.13 | 4.6 | 15.62 | 5.72 | 12.07 | 22.7 | curved bracket | 12 B-1 | 19.05 x 11.68 | 263 | 17 | - | 3/4X7/16 | 6.3950 | ||
206.71 € | 1 | 4 Days | 8.26 | 3.3 | 8.53 | 3.28 | 6.35 | 13.5 | straight bracket | 06 B-1 | 9.525 x 5.72 | 525 | 6.6 | - | 3/8X7/32 | 2.1700 | ||
320.81 € | 1 | 4 Days | 14.73 | 4.1 | 13.28 | 5.08 | 10.16 | 19.6 | curved bracket | 10 B-1 | 15.875 x 9.65 | 315 | 15 | - | 5/8X3/8 | 4.6050 | ||
695.88 € | 1 | 4 Days | 21.08 | 5.4 | 25.45 | 8.28 | 15.88 | 36.1 | curved bracket | 16 B-1 | 25.4 x 17.02 | 197 | 40 | 1X17.02mm | - | 13.9950 |
Loading...
Basic information
| Version 1 | 1x | Main material | stainless steel | Item | Roller Chain |
|---|---|---|---|---|---|
| ~L | ~5000 | DIN ISO | DIN ISO 606 | RoHS | yes |
| PL Edelstahl | yes |
Configure
Basic Attributes
-
G
-
B7
-
B2
- 8.53
- 11.3
- 13.28
- 15.62
- 25.45
-
D2
- 3.28
- 4.45
- 5.08
- 5.72
- 8.28
-
D1
- 6.35
- 8.51
- 10.16
- 12.07
- 15.88
-
B4
-
Version 2
- curved bracket
- straight bracket
-
ISO No.
-
Pitch(mm)
- 9.525 x 5.72
- 12.7 x 7.75
- 15.875 x 9.65
- 19.05 x 11.68
- 25.4 x 17.02
-
G=Number of parts
- 197
- 263
- 315
- 393
- 525
-
Break force F min.(kN)
-
Division (PxB1)
- 1X17.02mm
-
Division inches (PxB1)
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
