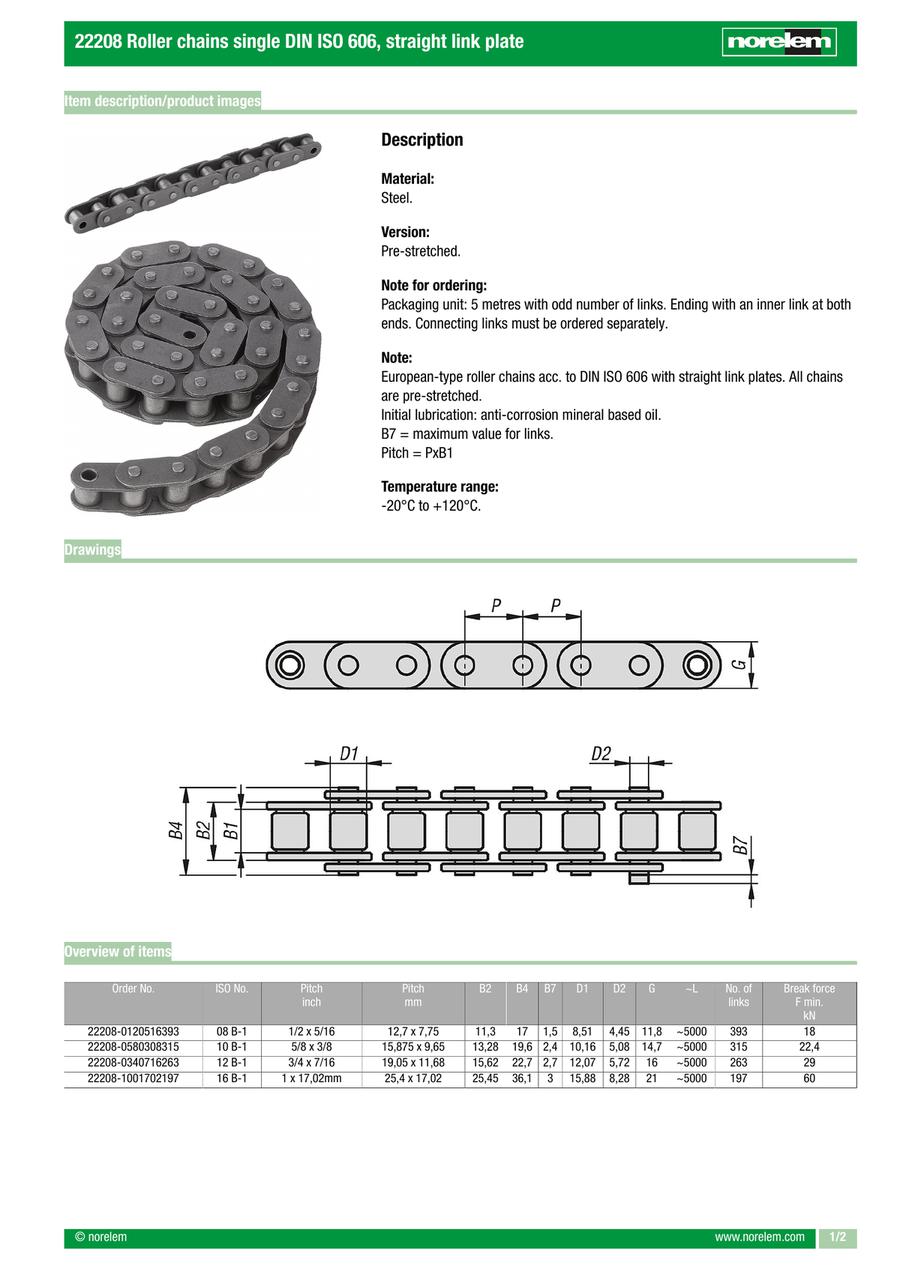

Roller chain 1x, steel (22208)
· Low bearing loads
· Used as drive, transport, conveyor and hoist chains
· Not sensitive to dirt or temperature influences
· Can be lengthened and shortened
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 22208-0120516393 |
| 22208-0340716263 |
| 22208-0580308315 |
| 22208-1001702197 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | G | B7 | B2 | D2 | D1 | B4 | ISO No. | Pitch (mm) | G=Number of parts | Break force F min. (kN) | Division (PxB1) | Division inches (PxB1) | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
51.24 € | 1 | 4 Days | 11.8 | 1.5 | 11.3 | 4.45 | 8.51 | 17 | 08 B-1 | 12.7 x 7.75 | 393 | 18 | - | 1/2 x 5/16 | 3.9800 | ||
90.46 € | 1 | 4 Days | 16 | 2.7 | 15.62 | 5.72 | 12.07 | 22.7 | 12 B-1 | 19.05 x 11.68 | 263 | 29 | - | 3/4 x 7/16 | 6.7000 | ||
65.36 € | 1 | 4 Days | 14.7 | 2.4 | 13.28 | 5.08 | 10.16 | 19.6 | 10 B-1 | 15.875 x 9.65 | 315 | 22.4 | - | 5/8 x 3/8 | 5.1950 | ||
190.11 € | 1 | 4 Days | 21 | 3 | 25.45 | 8.28 | 15.88 | 36.1 | 16 B-1 | 25.4 x 17.02 | 197 | 60 | 1 x 17.02mm | - | 14.8300 |
Loading...
Basic information
| Version 1 | single | Main material | steel | Item | Roller Chain |
|---|---|---|---|---|---|
| Version 2 | straight bracket | ~L | ~5000 | DIN ISO | DIN ISO 606 |
| RoHS | yes |
Configure
Basic Attributes
-
G
-
B7
-
B2
- 11.3
- 13.28
- 15.62
- 25.45
-
D2
- 4.45
- 5.08
- 5.72
- 8.28
-
D1
- 8.51
- 10.16
- 12.07
- 15.88
-
B4
-
ISO No.
-
Pitch(mm)
- 12.7 x 7.75
- 15.875 x 9.65
- 19.05 x 11.68
- 25.4 x 17.02
-
G=Number of parts
- 197
- 263
- 315
- 393
-
Break force F min.(kN)
-
Division (PxB1)
- 1 x 17.02mm
-
Division inches (PxB1)
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
