Sprockets single 3/8" x 7/32" DIN ISO 606, ready to install Form A (22250)

Configure

Number of Teeth(T)
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 30
D3(mm)
- 10
- 12
- 14
- 15
- 16
- 18
- 19
- 20
- 22
- 24
- 25
- 28
- 30
T2(mm)
- 1.4
- 1.8
- 2.3
- 2.8
- 3.3
D(mm)
- 40.5
- 43.5
- 46.5
- 49.5
- 52.5
- 55.5
- 58.6
- 61.6
- 64.6
- 67.6
- 70.6
- 73.7
- 76.7
- 79.7
- 94.8
D1=Pitch circle diameter(mm)
- 36.8
- 39.8
- 42.8
- 45.81
- 48.82
- 51.83
- 54.85
- 57.87
- 60.89
- 63.91
- 66.93
- 69.95
- 72.97
- 76
- 91.12
D2(mm)
- 25
- 28
- 31
- 34
- 37
- 40
- 43
- 45
- 46
- 48
- 50
- 52
- 54
- 57
- 60
D4
- M4
- M5
- M6
Division inches (PxB1)
- 3/8 X 7/32
- 3/8X7/32
B3(mm)
- 3
- 4
- 5
- 6
- 8
L(mm)
- 25
- 28
- 30
Est. shipping days
- All
- Within 4 working days

Sprockets single 3/8" x 7/32" DIN ISO 606, ready to install Form A (22250)

Catalog

Part number:

Still undefined. 112 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

22250-1038073201210
22250-1038073201310
22250-1038073201312
22250-1038073201314
22250-1038073201315
22250-1038073201410
22250-1038073201412
22250-1038073201414
22250-1038073201415
22250-1038073201416
22250-1038073201418
22250-1038073201512
22250-1038073201514
22250-1038073201515
22250-1038073201516
22250-1038073201518
22250-1038073201519
22250-1038073201520
22250-1038073201612
22250-1038073201614
22250-1038073201615
22250-1038073201616
22250-1038073201618
22250-1038073201619
22250-1038073201620
22250-1038073201622
22250-1038073201712
22250-1038073201714
22250-1038073201715
22250-1038073201716
22250-1038073201718
22250-1038073201719
22250-1038073201720
22250-1038073201722
22250-1038073201812
22250-1038073201814
22250-1038073201815
22250-1038073201816
22250-1038073201818
22250-1038073201819
22250-1038073201820
22250-1038073201822
22250-1038073201824
22250-1038073201825
22250-1038073201912
22250-1038073201914
22250-1038073201915
22250-1038073201916
22250-1038073201918
22250-1038073201919
22250-1038073201920
22250-1038073201922
22250-1038073201924
22250-1038073201925
22250-1038073202012
22250-1038073202014
22250-1038073202015
22250-1038073202016
22250-1038073202018
22250-1038073202019

Number of Teeth

(T)

(mm)

D1=Pitch circle diameter

(mm)

Division inches (PxB1)

(mm)

Weight (ERP)

(kg)

Minimum order quantity

12	10	1.4	40.5	36.8	25	M4	3/8 X 7/32	3	25	0.1069	1 pieces
13	10	1.4	43.5	39.8	28	M4	3/8 X 7/32	3	25	0.1330	1 pieces
13	12	1.8	43.5	39.8	28	M4	3/8 X 7/32	4	25	0.1260	1 pieces
13	14	2.3	43.5	39.8	28	M4	3/8 X 7/32	5	25	0.1220	1 pieces
13	15	2.3	43.5	39.8	28	M4	3/8 X 7/32	5	25	0.1100	1 pieces
14	10	1.4	46.5	42.8	31	M4	3/8 X 7/32	3	25	0.1580	1 pieces
14	12	1.8	46.5	42.8	31	M4	3/8 X 7/32	4	25	0.1530	1 pieces
14	14	2.3	46.5	42.8	31	M4	3/8 X 7/32	5	25	0.1450	1 pieces
14	15	2.3	46.5	42.8	31	M4	3/8 X 7/32	5	25	0.1460	1 pieces
14	16	2.3	46.5	42.8	31	M4	3/8 X 7/32	5	25	0.1320	1 pieces
14	18	2.8	46.5	42.8	31	M5	3/8 X 7/32	6	25	0.1240	1 pieces
15	12	1.8	49.5	45.81	34	M4	3/8 X 7/32	4	25	0.1820	1 pieces
15	14	2.3	49.5	45.81	34	M4	3/8 X 7/32	5	25	0.1730	1 pieces
15	15	2.3	49.5	45.81	34	M4	3/8 X 7/32	5	25	0.1700	1 pieces
15	16	2.3	49.5	45.81	34	M4	3/8 X 7/32	5	25	0.1650	1 pieces
15	18	2.8	49.5	45.81	34	M5	3/8 X 7/32	6	25	0.1570	1 pieces
15	19	2.8	49.5	45.81	34	M5	3/8 X 7/32	6	25	0.1520	1 pieces
15	20	2.8	49.5	45.81	34	M5	3/8 X 7/32	6	25	0.1440	1 pieces
16	12	1.8	52.5	48.82	37	M4	3/8 X 7/32	4	28	0.2454	1 pieces
16	14	2.3	52.5	48.82	37	M4	3/8 X 7/32	5	28	0.2366	1 pieces
16	15	2.3	52.5	48.82	37	M4	3/8 X 7/32	5	28	0.2337	1 pieces
16	16	2.3	52.5	48.82	37	M4	3/8 X 7/32	5	28	0.2266	1 pieces
16	18	2.8	52.5	48.82	37	M5	3/8 X 7/32	6	28	0.2173	1 pieces
16	19	2.8	52.5	48.82	37	M5	3/8 X 7/32	6	28	0.2093	1 pieces
16	20	2.8	52.5	48.82	37	M5	3/8 X 7/32	6	28	0.2008	1 pieces
16	22	2.8	52.5	48.82	37	M5	3/8 X 7/32	6	28	0.1873	1 pieces
17	12	1.8	55.5	51.83	40	M4	3/8 X 7/32	4	28	0.2910	1 pieces
17	14	2.3	55.5	51.83	40	M4	3/8 X 7/32	5	28	0.2809	1 pieces
17	15	2.3	55.5	51.83	40	M4	3/8 X 7/32	5	28	0.2770	1 pieces
17	16	2.3	55.5	51.83	40	M4	3/8 X 7/32	5	28	0.2660	1 pieces
17	18	2.8	55.5	51.83	40	M5	3/8 X 7/32	6	28	0.2520	1 pieces
17	19	2.8	55.5	51.83	40	M5	3/8 X 7/32	6	28	0.2500	1 pieces
17	20	2.8	55.5	51.83	40	M5	3/8 X 7/32	6	28	0.2390	1 pieces
17	22	2.8	55.5	51.83	40	M5	3/8 X 7/32	6	28	0.2310	1 pieces
18	12	1.8	58.6	54.85	40	M4	3/8 X 7/32	4	28	0.2930	1 pieces
18	14	2.3	58.6	54.85	40	M4	3/8 X 7/32	5	28	0.2850	1 pieces
18	15	2.3	58.6	54.85	43	M4	3/8 X 7/32	5	28	0.3180	1 pieces
18	16	2.3	58.6	54.85	43	M4	3/8 X 7/32	5	28	0.3100	1 pieces
18	18	2.8	58.6	54.85	43	M5	3/8 X 7/32	6	28	0.3010	1 pieces
18	19	2.8	58.6	54.85	43	M5	3/8 X 7/32	6	28	0.2950	1 pieces
18	20	2.8	58.6	54.85	43	M5	3/8 X 7/32	6	28	0.2830	1 pieces
18	22	2.8	58.6	54.85	43	M5	3/8X7/32	6	28	0.2740	1 pieces
18	24	3.3	58.6	54.85	43	M6	3/8 X 7/32	8	28	0.2480	1 pieces
18	25	3.3	58.6	54.85	43	M6	3/8 X 7/32	8	28	0.2460	1 pieces
19	12	1.8	61.6	57.87	40	M4	3/8 X 7/32	4	28	0.3062	1 pieces
19	14	2.3	61.6	57.87	40	M4	3/8 X 7/32	5	28	0.2941	1 pieces
19	15	2.3	61.6	57.87	45	M4	3/8 X 7/32	5	28	0.3552	1 pieces
19	16	2.3	61.6	57.87	45	M4	3/8 X 7/32	5	28	0.3487	1 pieces
19	18	2.8	61.6	57.87	45	M5	3/8 X 7/32	6	28	0.3313	1 pieces
19	19	2.8	61.6	57.87	45	M5	3/8 X 7/32	6	28	0.3293	1 pieces
19	20	2.8	61.6	57.87	45	M5	3/8 X 7/32	6	28	0.3216	1 pieces
19	22	2.8	61.6	57.87	45	M5	3/8 X 7/32	6	28	0.3051	1 pieces
19	24	3.3	61.6	57.87	45	M6	3/8 X 7/32	8	28	0.2871	1 pieces
19	25	3.3	61.6	57.87	45	M6	3/8 X 7/32	8	28	0.2763	1 pieces
20	12	1.8	64.6	60.89	40	M4	3/8 X 7/32	4	28	0.3190	1 pieces
20	14	2.3	64.6	60.89	40	M4	3/8 X 7/32	5	28	0.3100	1 pieces
20	15	2.3	64.6	60.89	46	M4	3/8 X 7/32	5	28	0.3770	1 pieces
20	16	2.3	64.6	60.89	46	M4	3/8 X 7/32	5	28	0.3710	1 pieces
20	18	2.8	64.6	60.89	46	M5	3/8 X 7/32	6	28	0.3580	1 pieces
20	19	2.8	64.6	60.89	46	M5	3/8 X 7/32	6	28	0.3520	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

10.68 € ( 12.71 € )	4 working days
11.91 € ( 14.17 € )	4 working days
11.91 € ( 14.17 € )	4 working days
11.91 € ( 14.17 € )	4 working days
11.91 € ( 14.17 € )	4 working days
13.77 € ( 16.39 € )	4 working days
13.77 € ( 16.39 € )	4 working days
13.77 € ( 16.39 € )	4 working days
13.77 € ( 16.39 € )	4 working days
13.77 € ( 16.39 € )	4 working days
13.77 € ( 16.39 € )	4 working days
14.39 € ( 17.12 € )	4 working days
14.39 € ( 17.12 € )	4 working days
14.39 € ( 17.12 € )	4 working days
14.39 € ( 17.12 € )	4 working days
14.39 € ( 17.12 € )	4 working days
14.39 € ( 17.12 € )	4 working days
14.39 € ( 17.12 € )	4 working days
16.53 € ( 19.67 € )	4 working days
16.53 € ( 19.67 € )	4 working days
16.53 € ( 19.67 € )	4 working days
16.53 € ( 19.67 € )	4 working days
16.53 € ( 19.67 € )	4 working days
16.53 € ( 19.67 € )	4 working days
16.53 € ( 19.67 € )	4 working days
16.53 € ( 19.67 € )	4 working days
19.95 € ( 23.74 € )	4 working days
19.95 € ( 23.74 € )	4 working days
19.95 € ( 23.74 € )	4 working days
19.95 € ( 23.74 € )	4 working days
19.95 € ( 23.74 € )	4 working days
19.95 € ( 23.74 € )	4 working days
19.95 € ( 23.74 € )	4 working days
19.95 € ( 23.74 € )	4 working days
22.11 € ( 26.31 € )	4 working days
22.11 € ( 26.31 € )	4 working days
22.11 € ( 26.31 € )	4 working days
22.11 € ( 26.31 € )	4 working days
22.11 € ( 26.31 € )	4 working days
22.11 € ( 26.31 € )	4 working days
22.11 € ( 26.31 € )	4 working days
22.11 € ( 26.31 € )	4 working days
22.11 € ( 26.31 € )	4 working days
22.11 € ( 26.31 € )	4 working days
23.50 € ( 27.96 € )	4 working days
23.50 € ( 27.96 € )	4 working days
23.50 € ( 27.96 € )	4 working days
23.50 € ( 27.96 € )	4 working days
23.50 € ( 27.96 € )	4 working days
23.50 € ( 27.96 € )	4 working days
23.50 € ( 27.96 € )	4 working days
23.50 € ( 27.96 € )	4 working days
23.50 € ( 27.96 € )	4 working days
23.50 € ( 27.96 € )	4 working days
23.65 € ( 28.14 € )	4 working days
23.65 € ( 28.14 € )	4 working days
23.65 € ( 28.14 € )	4 working days
23.65 € ( 28.14 € )	4 working days
23.65 € ( 28.14 € )	4 working days
23.65 € ( 28.14 € )	4 working days

Basic information

Basic information

· Suitable for roller chains acc. to DIN ISO 606

· Teeth inductively hardened, HRC 50

· With pre-boring and keyway acc. to DIN 6885

· With hub on one side

Catalog

Products homepage

Catalog (2-page spread)

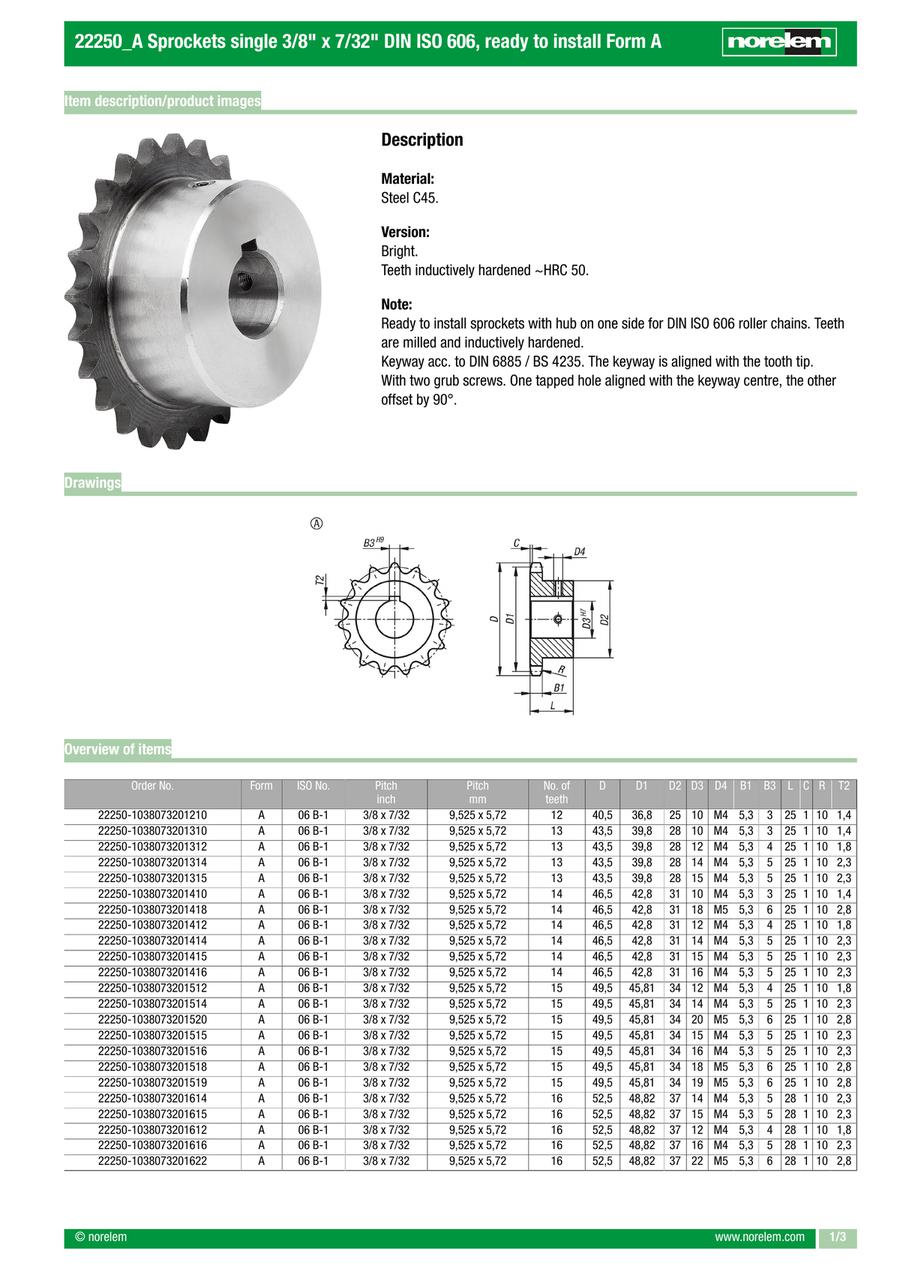

Sprockets single 3/8" x 7/32" DIN ISO 606, ready to install Form A (22250)
