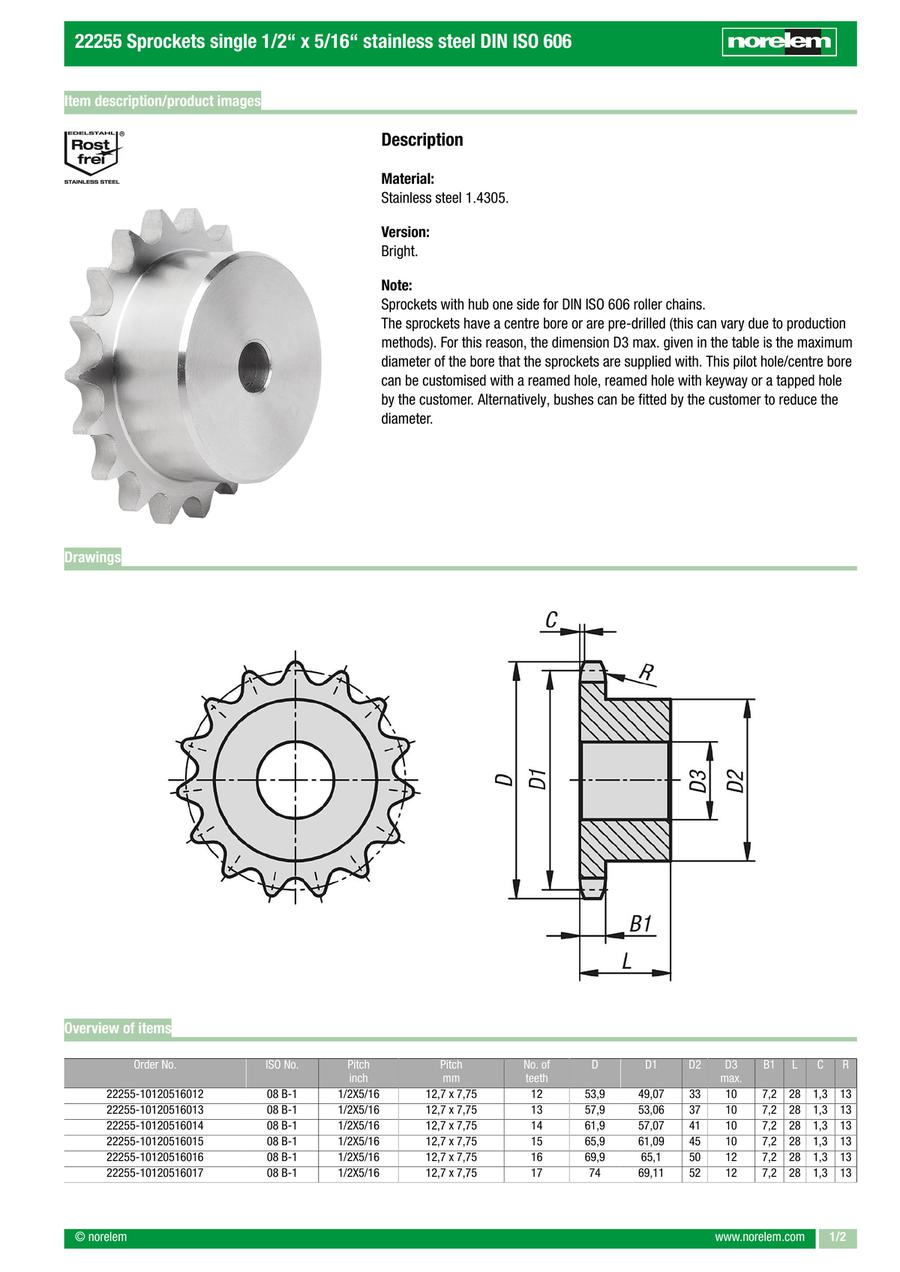

Sprocket single, stainless steel, pre-drilled, ISO=08B-1 (22255)
· Pre-drilled
· With hub on one side
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | D | D2 | L | N=No. of teeth | D3 | D1=Pitch circle diameter | D3 max. | |
|---|---|---|---|---|---|---|---|---|---|---|---|
30.14 € | 1 | 4 Days | 53.9 | 33 | 28 | 12 | 10 | 49.07 | 10 | ||
33.18 € | 1 | 4 Days | 57.9 | 37 | 28 | 13 | 10 | 53.06 | 10 | ||
34.85 € | 1 | 4 Days | 61.9 | 41 | 28 | 14 | 10 | 57.07 | 10 | ||
37.81 € | 1 | 4 Days | 65.9 | 45 | 28 | 15 | 10 | 61.09 | 10 | ||
40.64 € | 1 | 4 Days | 69.9 | 50 | 28 | 16 | 12 | 65.1 | 12 | ||
43.11 € | 1 | 4 Days | 74 | 52 | 28 | 17 | 12 | 69.11 | 12 | ||
47.51 € | 1 | 4 Days | 78 | 56 | 28 | 18 | 12 | 73.14 | 12 | ||
52.83 € | 1 | 4 Days | 82 | 60 | 28 | 19 | 12 | 77.16 | 12 | ||
58.24 € | 1 | 4 Days | 86 | 64 | 28 | 20 | 12 | 81.19 | 12 | ||
64.18 € | 1 | 4 Days | 90.1 | 68 | 28 | 21 | 14 | 85.22 | 14 | ||
72.28 € | 1 | 4 Days | 98.1 | 70 | 28 | 23 | 14 | 93.27 | 14 | ||
76.96 € | 1 | 4 Days | 106.2 | 70 | 28 | 25 | 14 | 101.33 | 14 | ||
114.60 € | 1 | 4 Days | 126.3 | 80 | 30 | 30 | 16 | 121.5 | 16 |
Loading...
Basic information
| B1 | 7.2 | R | 13 | C | 1.3 |
|---|---|---|---|---|---|
| ISO No. | 08 B-1 | Version 2 | pre-drilled | Version 1 | single |
| Main material | stainless steel | Item | Sprocket | Division inches (PxB1) | 1/2X5/16 |
| Pitch(mm) | 12.7 x 7.75 | Surface finish body | bright | DIN ISO | DIN ISO 606 |
| RoHS | yes | PL Edelstahl | yes |
Configure
Basic Attributes
-
D
-
D2
-
L
-
N=No. of teeth
-
D3
-
D1=Pitch circle diameter
-
D3 max.
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
