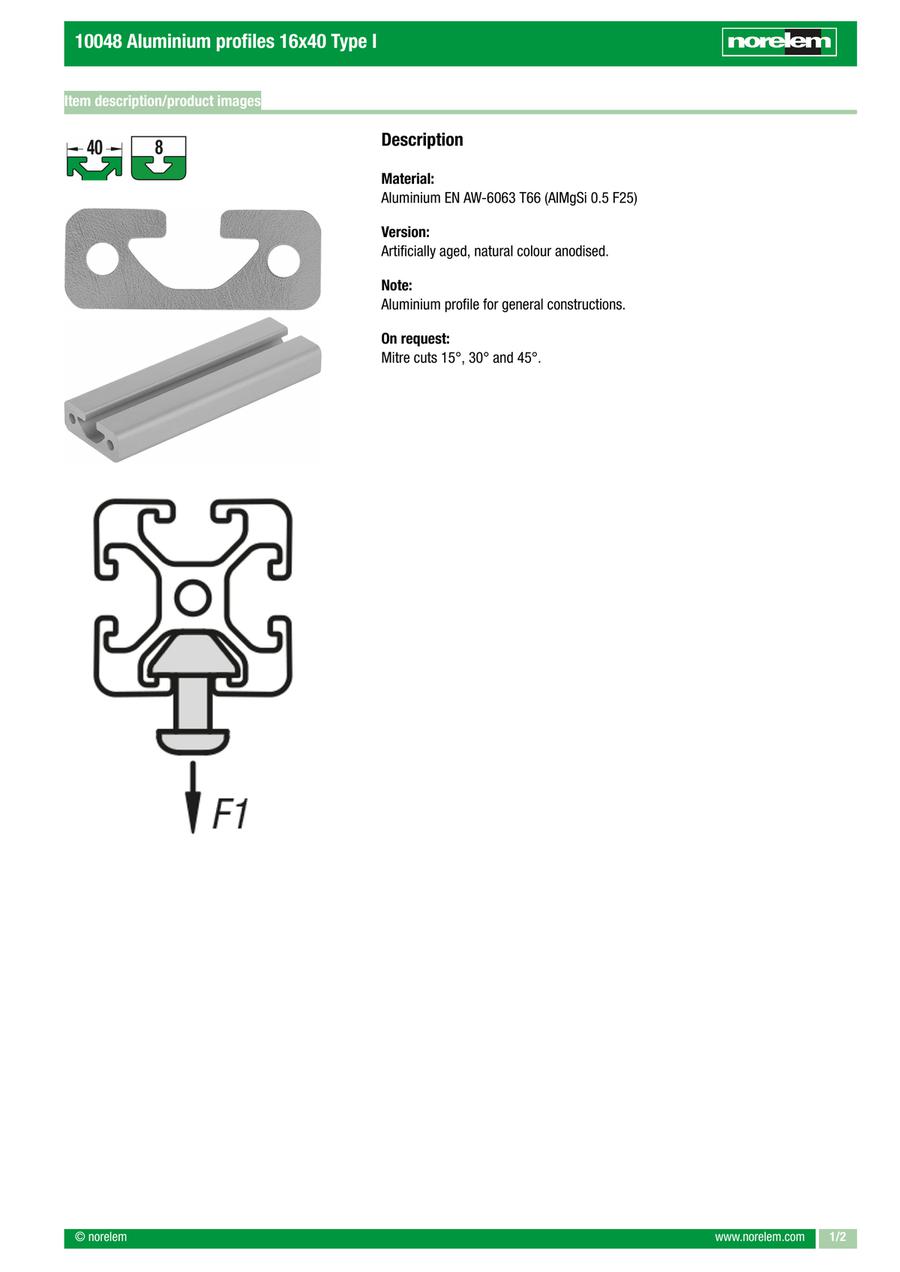

Aluminium profile, Type I (10048-081640X1000)
· For general structures
· Compatible with all common profile systems
· Scratchproof and corrosion protected
· Modular variety thanks to extensive accessories
· Artificially aged
· Compatible with all common profile systems
· Scratchproof and corrosion protected
· Modular variety thanks to extensive accessories
· Artificially aged
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
10048-081640X1000
- Product data
- CAD data not available
Basic information
| L=Length | 1000 | H=Height | 16 | B=Width | 40 |
|---|---|---|---|---|---|
| Item | Aluminium Profile | Profile area(cm²) | 4.15 | Iy(cm⁴) | 6.75 |
| Slot width | 8 | F1 max.(kN) | 5 | Profile | 16x40 |
| Type | I | Ix(cm⁴) | 1.06 | Wx(cm³) | 1.25 |
| Wy(cm³) | 3.37 | Version 2 | type i | RoHS | yes |
| Weight (ERP)(kg) | 1.1140 | Approx. weight(kg/m) | 1.12 |
This page is Aluminium profile, Type I (10048-081640X1000), part number 10048-081640X1000.
You can find the detail information about specifications and dimensions on part number 10048-081640X1000.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
