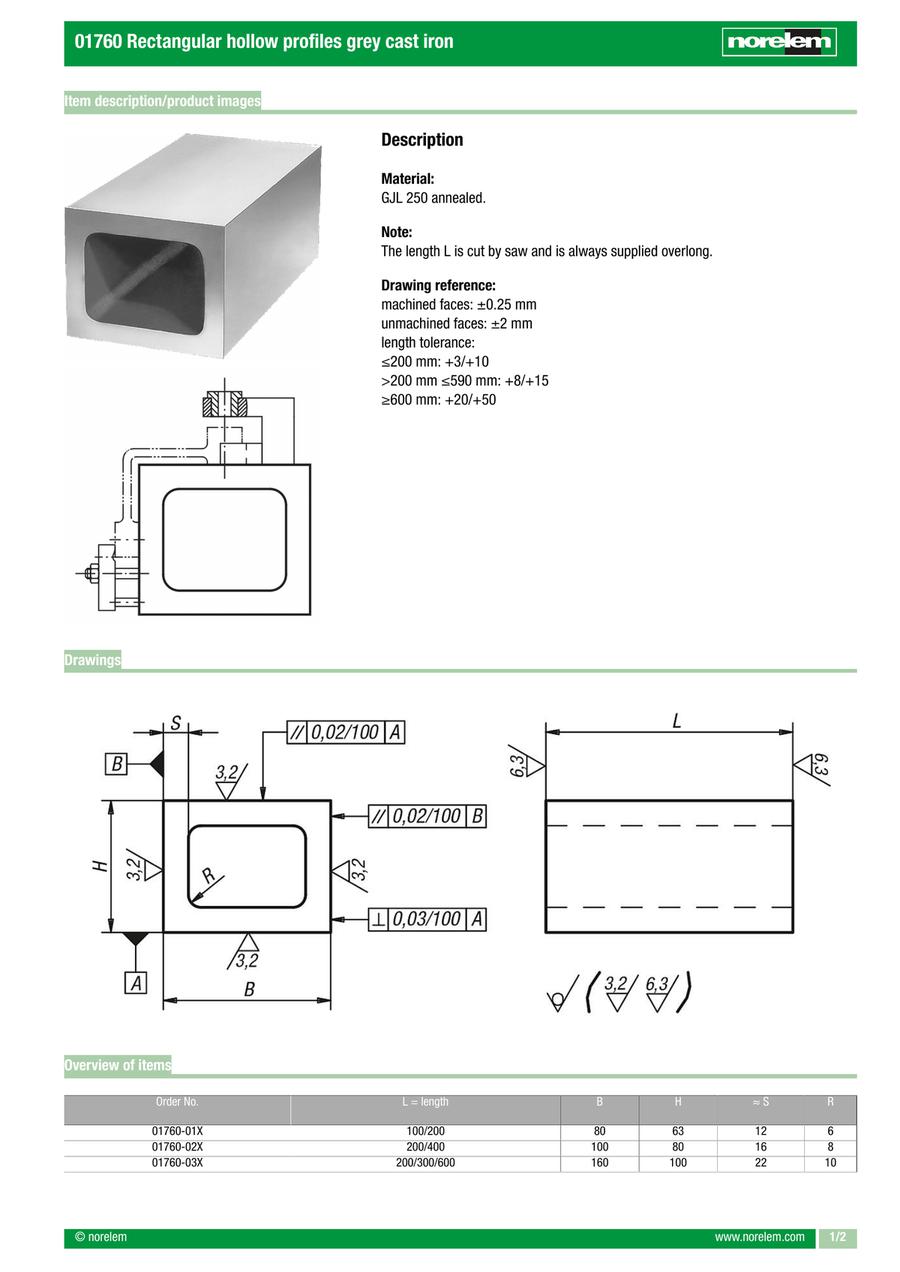

Hollow profile rectangular, grey cast iron (01760)
· Easy handling
· Versatile use
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 01760-01X100 |
| 01760-01X200 |
| 01760-02X200 |
| 01760-02X400 |
| 01760-03X200 |
| 01760-03X300 |
| 01760-03X600 |
| 01760-04X200 |
| 01760-04X300 |
| 01760-04X600 |
| 01760-05X300 |
| 01760-05X600 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | L=Length | H=Height | B=Width | R | ≈ S | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|
126.59 € | 1 | 4 Days | 100 | 63 | 80 | 6 | 12 | 2.0780 | ||
216.99 € | 1 | 4 Days | 200 | 63 | 80 | 6 | 12 | 4.2830 | ||
203.95 € | 1 | 4 Days | 200 | 80 | 100 | 8 | 16 | 6.9700 | ||
348.45 € | 1 | 4 Days | 400 | 80 | 100 | 8 | 16 | 14.0000 | ||
381.56 € | 1 | 4 Days | 200 | 100 | 160 | 10 | 22 | 13.5740 | ||
524.88 € | 1 | 4 Days | 300 | 100 | 160 | 10 | 22 | 21.5040 | ||
901.98 € | 1 | 4 Days | 600 | 100 | 160 | 10 | 22 | 44.0000 | ||
564.59 € | 1 | 4 Days | 200 | 160 | 200 | 16 | 25 | 22.4740 | ||
782.90 € | 1 | 4 Days | 300 | 160 | 200 | 16 | 25 | 34.9920 | ||
1,345.28 € | 1 | 4 Days | 600 | 160 | 200 | 16 | 25 | 72.0000 | ||
1,168.85 € | 1 | 4 Days | 300 | 200 | 250 | 20 | 28 | 49.9640 | ||
2,009.06 € | 1 | 4 Days | 600 | 200 | 250 | 20 | 28 | 100.0000 |
Loading...
Basic information
| Version 1 | rectangular | Main material | grey cast iron | Item | Hollow Profile |
|---|---|---|---|---|---|
| RoHS | yes |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
