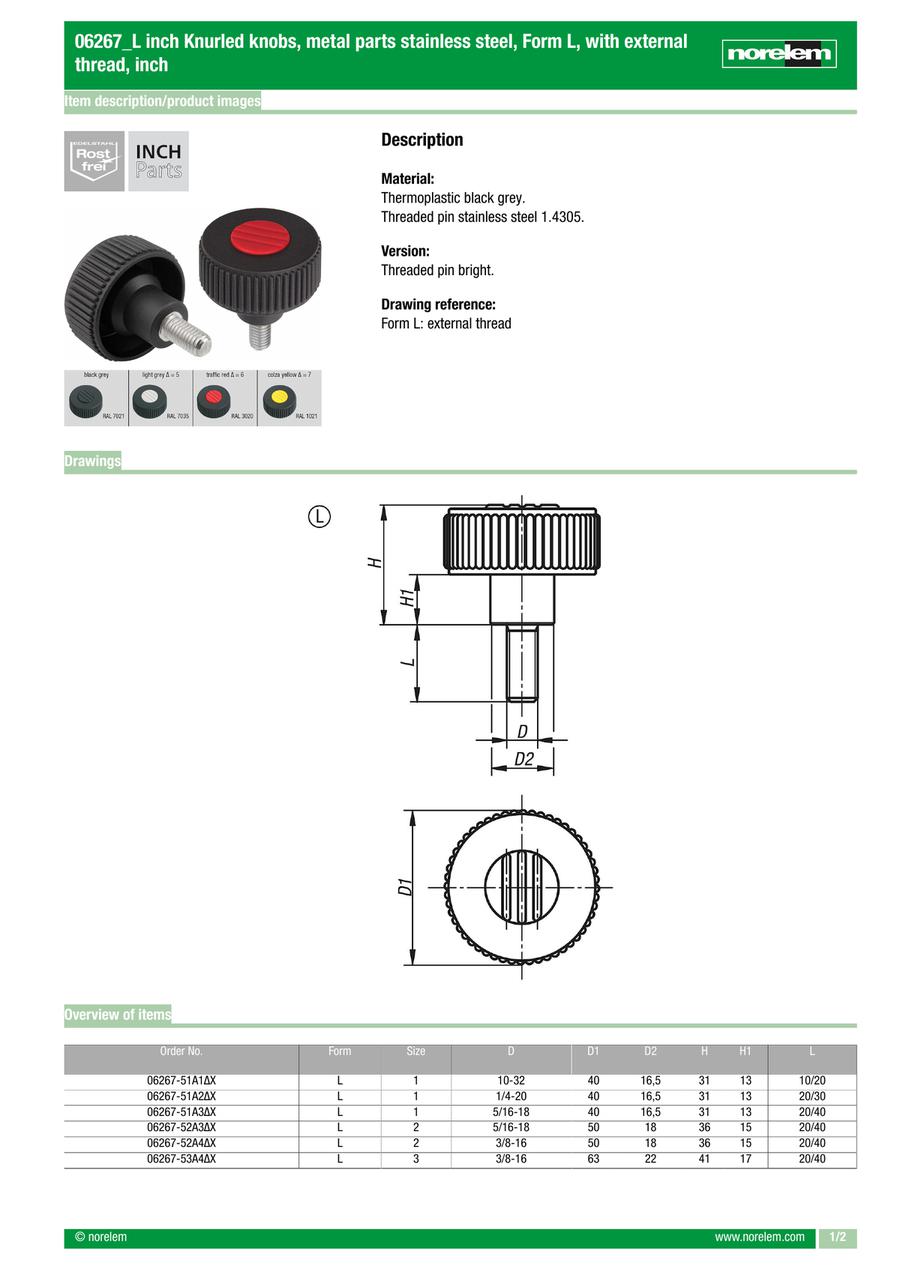

Knurled knob, form L, thermoplastic, inch (06267)
· Application fields: machine, plant and fixture construction, toolmaking
· Versatile application possibilities
· Various colours available
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | D2 | H1 | Colour Cap | D=Thread | D1=Outside diameter | H=Height | L=thread length | Size | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
4.51 € | 1 | 4 Days | 16.5 | 13 | black grey RAL 7021 | 10-32 | 40 | 31 | 10 | 1 | 0.0170 | ||
4.51 € | 1 | 4 Days | 16.5 | 13 | black grey RAL 7021 | 10-32 | 40 | 31 | 20 | 1 | 0.0181 | ||
4.51 € | 1 | 4 Days | 16.5 | 13 | black grey RAL 7021 | 1/4-20 | 40 | 31 | 20 | 1 | 0.0195 | ||
4.68 € | 1 | 4 Days | 16.5 | 13 | black grey RAL 7021 | 1/4-20 | 40 | 31 | 30 | 1 | 0.0221 | ||
4.75 € | 1 | 4 Days | 16.5 | 13 | black grey RAL 7021 | 5/16-18 | 40 | 31 | 20 | 1 | 0.0240 | ||
5.04 € | 1 | 4 Days | 16.5 | 13 | black grey RAL 7021 | 5/16-18 | 40 | 31 | 40 | 1 | 0.0294 | ||
4.51 € | 1 | 4 Days | 16.5 | 13 | light grey RAL 7035 | 10-32 | 40 | 31 | 10 | 1 | 0.0170 | ||
4.51 € | 1 | 4 Days | 16.5 | 13 | light grey RAL 7035 | 10-32 | 40 | 31 | 20 | 1 | 0.0170 | ||
4.51 € | 1 | 4 Days | 16.5 | 13 | traffic red RAL 3020 | 10-32 | 40 | 31 | 10 | 1 | 0.0170 | ||
4.51 € | 1 | 4 Days | 16.5 | 13 | traffic red RAL 3020 | 10-32 | 40 | 31 | 20 | 1 | 0.0170 | ||
4.51 € | 1 | 4 Days | 16.5 | 13 | colza yellow RAL 1021 | 10-32 | 40 | 31 | 10 | 1 | 0.0170 | ||
4.51 € | 1 | 4 Days | 16.5 | 13 | colza yellow RAL 1021 | 10-32 | 40 | 31 | 20 | 1 | 0.0170 | ||
4.51 € | 1 | 4 Days | 16.5 | 13 | light grey RAL 7035 | 1/4-20 | 40 | 31 | 20 | 1 | 0.0203 | ||
4.68 € | 1 | 4 Days | 16.5 | 13 | light grey RAL 7035 | 1/4-20 | 40 | 31 | 30 | 1 | 0.0203 | ||
4.51 € | 1 | 4 Days | 16.5 | 13 | traffic red RAL 3020 | 1/4-20 | 40 | 31 | 20 | 1 | 0.0203 | ||
4.68 € | 1 | 4 Days | 16.5 | 13 | traffic red RAL 3020 | 1/4-20 | 40 | 31 | 30 | 1 | 0.0203 | ||
4.51 € | 1 | 4 Days | 16.5 | 13 | colza yellow RAL 1021 | 1/4-20 | 40 | 31 | 20 | 1 | 0.0203 | ||
4.68 € | 1 | 4 Days | 16.5 | 13 | colza yellow RAL 1021 | 1/4-20 | 40 | 31 | 30 | 1 | 0.0203 | ||
4.75 € | 1 | 4 Days | 16.5 | 13 | light grey RAL 7035 | 5/16-18 | 40 | 31 | 20 | 1 | 0.0240 | ||
5.04 € | 1 | 4 Days | 16.5 | 13 | light grey RAL 7035 | 5/16-18 | 40 | 31 | 40 | 1 | 0.0240 | ||
4.75 € | 1 | 4 Days | 16.5 | 13 | traffic red RAL 3020 | 5/16-18 | 40 | 31 | 20 | 1 | 0.0240 | ||
5.04 € | 1 | 4 Days | 16.5 | 13 | traffic red RAL 3020 | 5/16-18 | 40 | 31 | 40 | 1 | 0.0240 | ||
4.75 € | 1 | 4 Days | 16.5 | 13 | colza yellow RAL 1021 | 5/16-18 | 40 | 31 | 20 | 1 | 0.0240 | ||
5.04 € | 1 | 4 Days | 16.5 | 13 | colza yellow RAL 1021 | 5/16-18 | 40 | 31 | 40 | 1 | 0.0240 | ||
5.85 € | 1 | 4 Days | 18 | 15 | black grey RAL 7021 | 5/16-18 | 50 | 36 | 20 | 2 | 0.0329 | ||
6.20 € | 1 | 4 Days | 18 | 15 | black grey RAL 7021 | 5/16-18 | 50 | 36 | 40 | 2 | 0.0375 | ||
5.96 € | 1 | 4 Days | 18 | 15 | black grey RAL 7021 | 3/8-16 | 50 | 36 | 20 | 2 | 0.0419 | ||
6.27 € | 1 | 4 Days | 18 | 15 | black grey RAL 7021 | 3/8-16 | 50 | 36 | 40 | 2 | 0.0503 | ||
5.85 € | 1 | 4 Days | 18 | 15 | light grey RAL 7035 | 5/16-18 | 50 | 36 | 20 | 2 | 0.0314 | ||
6.20 € | 1 | 4 Days | 18 | 15 | light grey RAL 7035 | 5/16-18 | 50 | 36 | 40 | 2 | 0.0374 | ||
5.85 € | 1 | 4 Days | 18 | 15 | traffic red RAL 3020 | 5/16-18 | 50 | 36 | 20 | 2 | 0.0314 | ||
6.20 € | 1 | 4 Days | 18 | 15 | traffic red RAL 3020 | 5/16-18 | 50 | 36 | 40 | 2 | 0.0374 | ||
5.85 € | 1 | 4 Days | 18 | 15 | colza yellow RAL 1021 | 5/16-18 | 50 | 36 | 20 | 2 | 0.0314 | ||
6.20 € | 1 | 4 Days | 18 | 15 | colza yellow RAL 1021 | 5/16-18 | 50 | 36 | 40 | 2 | 0.0374 | ||
5.96 € | 1 | 4 Days | 18 | 15 | light grey RAL 7035 | 3/8-16 | 50 | 36 | 20 | 2 | 0.0433 | ||
6.27 € | 1 | 4 Days | 18 | 15 | light grey RAL 7035 | 3/8-16 | 50 | 36 | 40 | 2 | 0.0484 | ||
5.96 € | 1 | 4 Days | 18 | 15 | traffic red RAL 3020 | 3/8-16 | 50 | 36 | 20 | 2 | 0.0422 | ||
6.27 € | 1 | 4 Days | 18 | 15 | traffic red RAL 3020 | 3/8-16 | 50 | 36 | 40 | 2 | 0.0484 | ||
5.96 € | 1 | 4 Days | 18 | 15 | colza yellow RAL 1021 | 3/8-16 | 50 | 36 | 20 | 2 | 0.0422 | ||
6.27 € | 1 | 4 Days | 18 | 15 | colza yellow RAL 1021 | 3/8-16 | 50 | 36 | 40 | 2 | 0.0484 | ||
7.26 € | 1 | 4 Days | 22 | 17 | black grey RAL 7021 | 3/8-16 | 63 | 41 | 20 | 3 | 0.0523 | ||
7.55 € | 1 | 4 Days | 22 | 17 | black grey RAL 7021 | 3/8-16 | 63 | 41 | 40 | 3 | 0.0604 | ||
7.26 € | 1 | 4 Days | 22 | 17 | light grey RAL 7035 | 3/8-16 | 63 | 41 | 20 | 3 | 0.0523 | ||
7.55 € | 1 | 4 Days | 22 | 17 | light grey RAL 7035 | 3/8-16 | 63 | 41 | 40 | 3 | 0.0523 | ||
7.26 € | 1 | 4 Days | 22 | 17 | traffic red RAL 3020 | 3/8-16 | 63 | 41 | 20 | 3 | 0.0523 | ||
7.55 € | 1 | 4 Days | 22 | 17 | traffic red RAL 3020 | 3/8-16 | 63 | 41 | 40 | 3 | 0.0523 | ||
7.26 € | 1 | 4 Days | 22 | 17 | colza yellow RAL 1021 | 3/8-16 | 63 | 41 | 20 | 3 | 0.0523 | ||
7.55 € | 1 | 4 Days | 22 | 17 | colza yellow RAL 1021 | 3/8-16 | 63 | 41 | 40 | 3 | 0.0523 |
Loading...
Basic information
| Component material | Stainless steel | Form | L | Item | Knurled Knob |
|---|---|---|---|---|---|
| Main colour | black grey RAL 7021 | Main material | Thermoplastic | Thread type | external thread |
| RoHS | yes | PL Edelstahl | yes |
Configure
Basic Attributes
-
D2
-
H1
-
Colour Cap
- colza yellow RAL 1021
- traffic red RAL 3020
- black grey RAL 7021
- light grey RAL 7035
-
D=Thread
-
D1=Outside diameter
-
H=Height
-
L=thread length
-
Size
- 1
- 2
- 3
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
