Knurled knobs Form K, with tapped bush, with cap, inch (06266)

Configure

D
Outside diameter(φ)
- 40
- 50
- 63
Main Body Height t(mm)
- 31
- 36
- 41
Size(mm)
- 1
- 2
- 3
D2(mm)
- 16.5
- 18
- 22
H1(Nm)
- 13
- 15
- 17
T=thread depth(mm)
- 10
- 14
- 18
Colour Cap
Est. shipping days
- All
- Within 4 working days

Knurled knobs Form K, with tapped bush, with cap, inch (06266)

Catalog

Part number:

Still undefined. 28 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Outside diameter

(φ)

Main Body Height t

(mm)

Size

(mm)

(Nm)

T=thread depth

(mm)

Colour Cap

Weight (ERP)

(kg)

Minimum order quantity

10-32	40	31	1	16.5	13	10	Black grey RAL 7021	0.0177	1 pieces
1/4-20	40	31	1	16.5	13	10	Black grey RAL 7021	0.0167	1 pieces
5/16-18	40	31	1	16.5	13	14	Black grey RAL 7021	0.0219	1 pieces
10-32	40	31	1	16.5	13	10	Light grey RAL 7035	0.0177	1 pieces
10-32	40	31	1	16.5	13	10	Traffic red RAL 3020	0.0177	1 pieces
10-32	40	31	1	16.5	13	10	Colza yellow RAL 1021	0.0177	1 pieces
1/4-20	40	31	1	16.5	13	10	Light grey RAL 7035	0.0167	1 pieces
1/4-20	40	31	1	16.5	13	10	Traffic red RAL 3020	0.0167	1 pieces
1/4-20	40	31	1	16.5	13	10	Colza yellow RAL 1021	0.0167	1 pieces
5/16-18	40	31	1	16.5	13	14	Light grey RAL 7035	0.0217	1 pieces
5/16-18	40	31	1	16.5	13	14	Traffic red RAL 3020	0.0217	1 pieces
5/16-18	40	31	1	16.5	13	14	Colza yellow RAL 1021	0.0217	1 pieces
5/16-18	50	36	2	18	15	14	Black grey RAL 7021	0.0296	1 pieces
3/8-16	50	36	2	18	15	14	Black grey RAL 7021	0.0272	1 pieces
5/16-18	50	36	2	18	15	14	Light grey RAL 7035	0.0299	1 pieces
5/16-18	50	36	2	18	15	14	Traffic red RAL 3020	0.0297	1 pieces
5/16-18	50	36	2	18	15	14	Colza yellow RAL 1021	0.0302	1 pieces
3/8-16	50	36	2	18	15	14	Light grey RAL 7035	0.0282	1 pieces
3/8-16	50	36	2	18	15	14	Traffic red RAL 3020	0.0272	1 pieces
3/8-16	50	36	2	18	15	14	Colza yellow RAL 1021	0.0282	1 pieces
3/8-16	63	41	3	22	17	14	Black grey RAL 7021	0.0373	1 pieces
1/2-13	63	41	3	22	17	18	Black grey RAL 7021	0.0533	1 pieces
3/8-16	63	41	3	22	17	14	Light grey RAL 7035	0.0383	1 pieces
3/8-16	63	41	3	22	17	14	Traffic red RAL 3020	0.0383	1 pieces
3/8-16	63	41	3	22	17	14	Colza yellow RAL 1021	0.0383	1 pieces
1/2-13	63	41	3	22	17	18	Light grey RAL 7035	0.0533	1 pieces
1/2-13	63	41	3	22	17	18	Traffic red RAL 3020	0.0533	1 pieces
1/2-13	63	41	3	22	17	18	Colza yellow RAL 1021	0.0533	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

3.22 € ( 3.83 € )	4 working days
3.22 € ( 3.83 € )	4 working days
3.49 € ( 4.15 € )	4 working days
3.22 € ( 3.83 € )	4 working days
3.22 € ( 3.83 € )	4 working days
3.22 € ( 3.83 € )	4 working days
3.22 € ( 3.83 € )	4 working days
3.22 € ( 3.83 € )	4 working days
3.22 € ( 3.83 € )	4 working days
3.49 € ( 4.15 € )	4 working days
3.49 € ( 4.15 € )	4 working days
3.49 € ( 4.15 € )	4 working days
4.20 € ( 5.00 € )	4 working days
4.21 € ( 5.01 € )	4 working days
4.20 € ( 5.00 € )	4 working days
4.20 € ( 5.00 € )	4 working days
4.20 € ( 5.00 € )	4 working days
4.21 € ( 5.01 € )	4 working days
4.21 € ( 5.01 € )	4 working days
4.21 € ( 5.01 € )	4 working days
5.16 € ( 6.14 € )	4 working days
5.60 € ( 6.66 € )	4 working days
5.16 € ( 6.14 € )	4 working days
5.16 € ( 6.14 € )	4 working days
5.16 € ( 6.14 € )	4 working days
5.60 € ( 6.66 € )	4 working days
5.60 € ( 6.66 € )	4 working days
5.60 € ( 6.66 € )	4 working days

More Information

Basic information

Basic information

· Secure handling due to ergonomically shaped knurled knob

· Application fields: machine, plant and fixture construction, toolmaking

· Versatile application possibilities

· Various colours available

Catalog

Products homepage

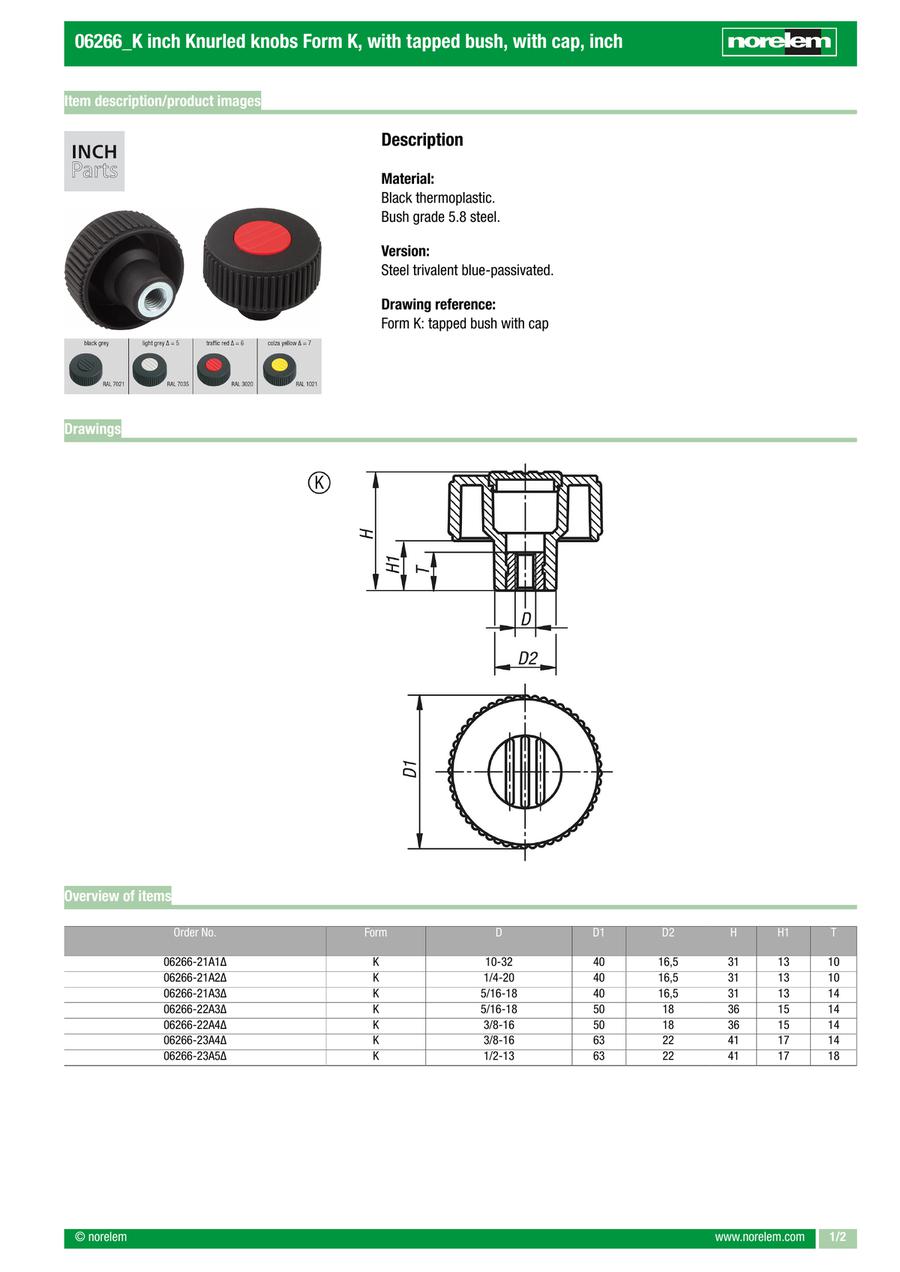

Catalog (2-page spread)
