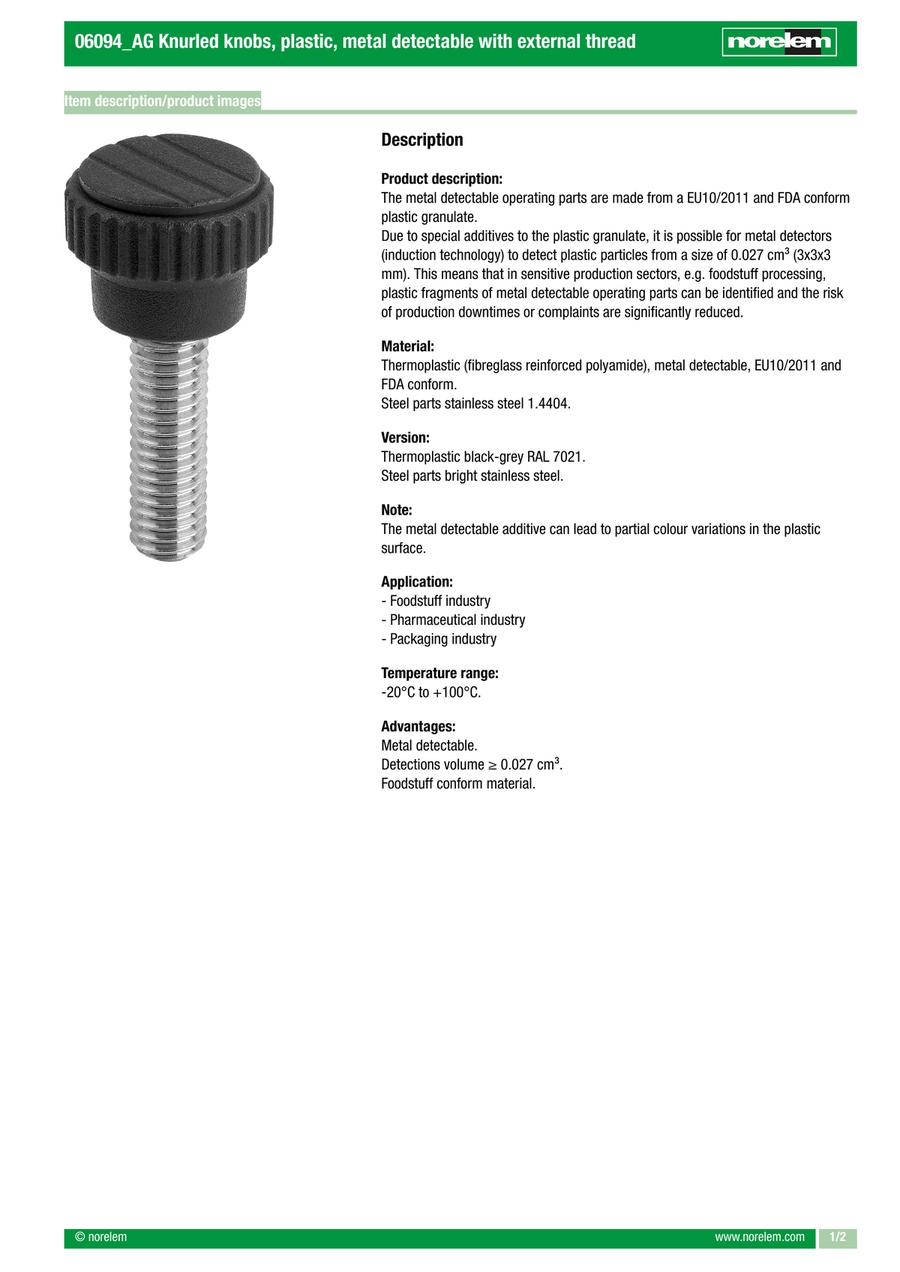

Knurled knob with external thread, metal detectable, polyamide (06094)
· Metal detectable
· Detections volume ≥ 0.027 cm³.
· Foodstuff conform material
· Detections volume ≥ 0.027 cm³.
· Foodstuff conform material
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 06094-140005X10 |
| 06094-140006X20 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | D=Thread | L=thread length | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|
8.53 € | 1 | 4 Days | M5 | 10 | 0.0180 | ||
9.33 € | 1 | 4 Days | M6 | 20 | 0.0240 |
Loading...
Basic information
| D1 | 15 | D2 | 11 | D3 | 13 |
|---|---|---|---|---|---|
| H1 | 4.3 | Steel code | 1.4404 | Approval / Certification | FDA + EU10/2011 |
| Component material | Stainless steel | H=Height | 11.5 | Item | Knurled Knob |
| Main colour | black grey RAL 7021 | Main material | polyamide | Size | 0 |
| Surface finish component | bright | Thread type | external thread | Version 1 | metal detectable |
| RoHS | yes | PL Edelstahl | yes |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
