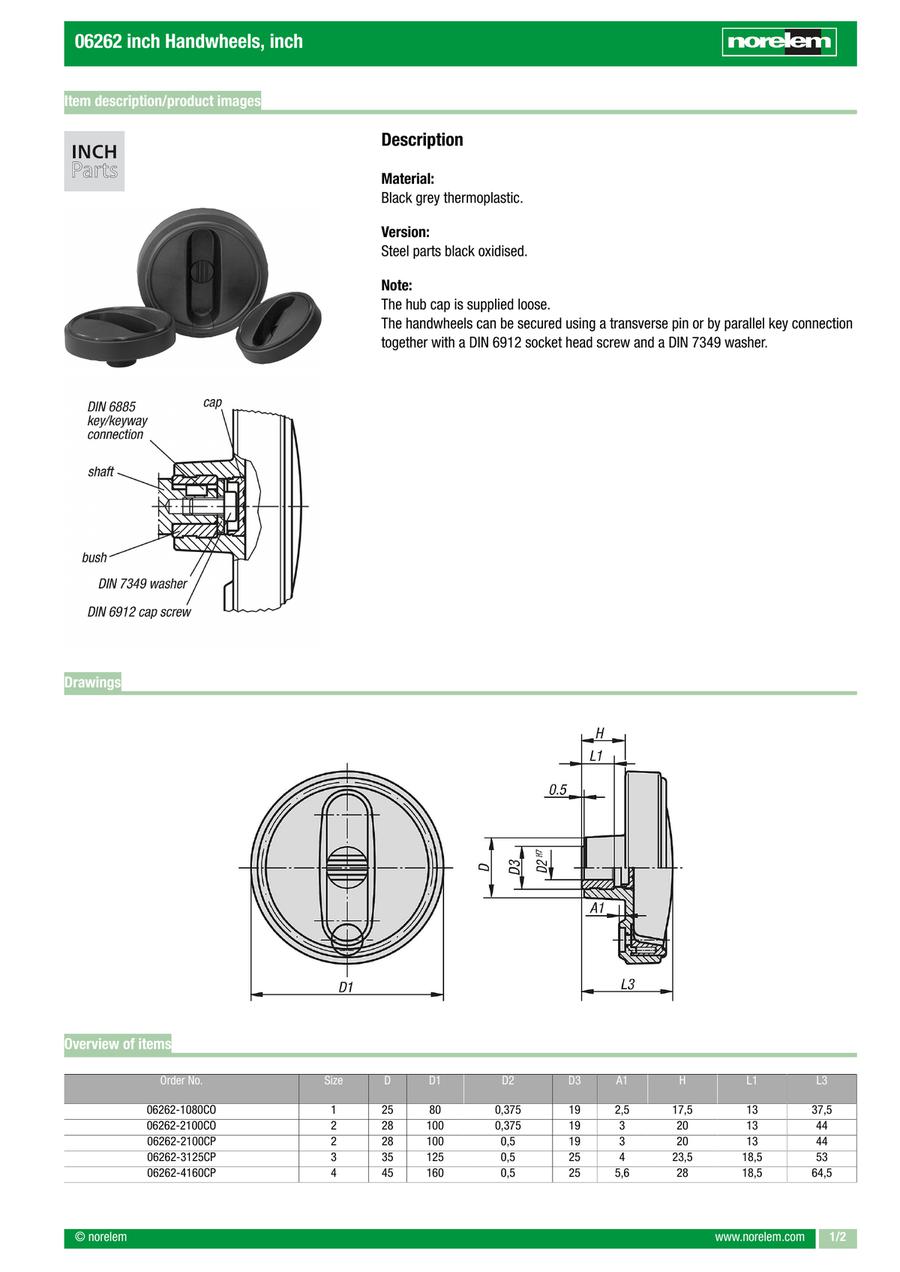

Handwheels, inch (06262)
· Application sectors: machine, plant, equipment construction and measuring devices
· For opening, closing and operating valves in fittings, machine tools
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 06262-1080CO |
| 06262-2100CO |
| 06262-2100CP |
| 06262-3125CP |
| 06262-4160CP |
| 06262-4160CQ |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Outside diameter (Ø) | Size | L1 (mm) | L3=height (mm) | D (mm) | D2=Fastening hole (mm) | D3 (mm) | A1 (mm) | H (mm) | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
14.79 € | 1 | 4 Days | 80 | 1 | 13 | 37.5 | 25 | 0.375 | 19 | 2.5 | 17.5 | 0.0730 | ||
18.91 € | 1 | 4 Days | 100 | 2 | 13 | 44 | 28 | 0.375 | 19 | 3 | 20 | 0.0720 | ||
18.91 € | 1 | 4 Days | 100 | 2 | 13 | 44 | 28 | 0.5 | 19 | 3 | 20 | 0.0690 | ||
26.34 € | 1 | 4 Days | 125 | 3 | 18.5 | 53 | 35 | 0.5 | 25 | 4 | 23.5 | 0.2270 | ||
30.06 € | 1 | 4 Days | 160 | 4 | 18.5 | 64.5 | 45 | 0.5 | 25 | 5.6 | 28 | 0.3590 | ||
30.06 € | 1 | 4 Days | 160 | 4 | 18.5 | 64.5 | 45 | 0.625 | 25 | 5.6 | 28 | 0.3557 |
Loading...
Basic information
| Handwheel Type | Related Components | Main material | Thermoplastic | Main colour | Black grey |
|---|---|---|---|---|---|
| Version 1 | Reamed hole | Version 2 | Without transverse hole | Form | E |
| Item | Handwheel | Form definition | With reamed hole | Form-Type | With reamed hole |
| Grip | Without | Product type | Without grip | RoHS | Yes |
Configure
Basic Attributes
-
Outside diameter(Ø)
-
Size
- 1
- 2
- 3
- 4
-
L1(mm)
-
L3=height(mm)
-
D(mm)
- 25
- 28
- 35
- 45
-
D2=Fastening hole(mm)
-
D3(mm)
-
A1(mm)
- 2.5
- 3
- 4
- 5.6
-
H(mm)
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
