Configure
- Outside diameter(Ø)
- 80
- 100
- 125
- 140
- 160
- 200
- 250
- L1(mm)
- 16
- 17
- 18
- 19
- 20
- 24
- 28
- L3=height(mm)
- 31
- 34
- 37
- 40
- 46
- 49
- D2=Fastening hole(mm)
- 0.312
- 0.375
- 0.5
- 0.625
- 0.75
- 0.875
- D3(mm)
- 26
- 30
- 31
- 34
- 40
- 50
- Est. shipping days
- All
- Within 4 working days

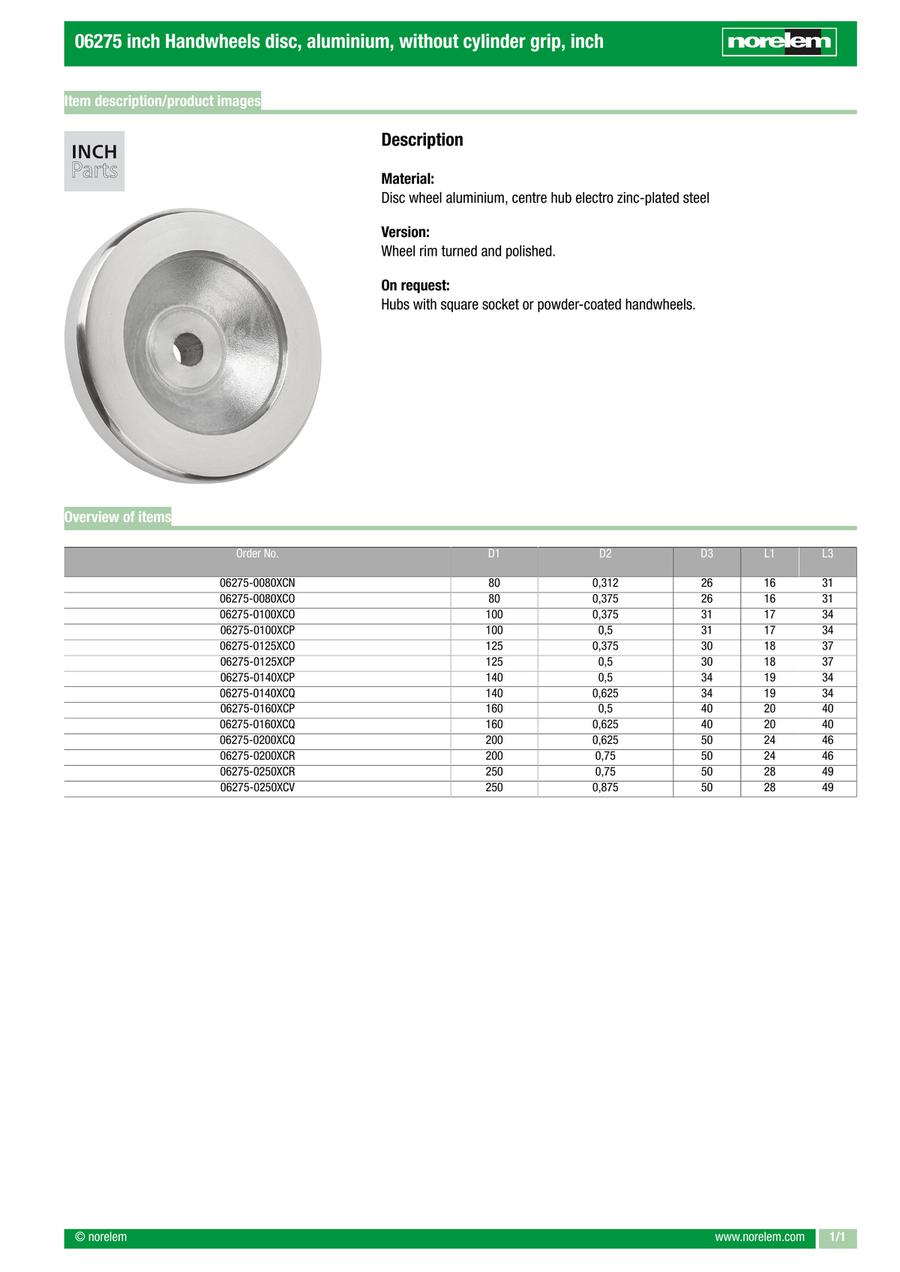

Handwheels disc, aluminium, without cylinder grip, inch (06275)
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
15.06 € ( 17.92 € ) | 4 working days |
15.06 € ( 17.92 € ) | 4 working days |
17.71 € ( 21.07 € ) | 4 working days |
17.71 € ( 21.07 € ) | 4 working days |
22.69 € ( 27.00 € ) | 4 working days |
22.69 € ( 27.00 € ) | 4 working days |
26.50 € ( 31.54 € ) | 4 working days |
26.50 € ( 31.54 € ) | 4 working days |
36.46 € ( 43.39 € ) | 4 working days |
36.46 € ( 43.39 € ) | 4 working days |
46.58 € ( 55.43 € ) | 4 working days |
46.58 € ( 55.43 € ) | 4 working days |
83.48 € ( 99.34 € ) | 4 working days |
83.48 € ( 99.34 € ) | 4 working days |
More Information
Basic information
· Control element for positioning and adjusting shafts and spindles
· Application sectors: machine, plant, equipment construction and measuring devices
· For opening, closing and operating valves in fittings, machine tools
· Wheel rim concentricity and axial run-out less than ISO tolerance (IT) 12
