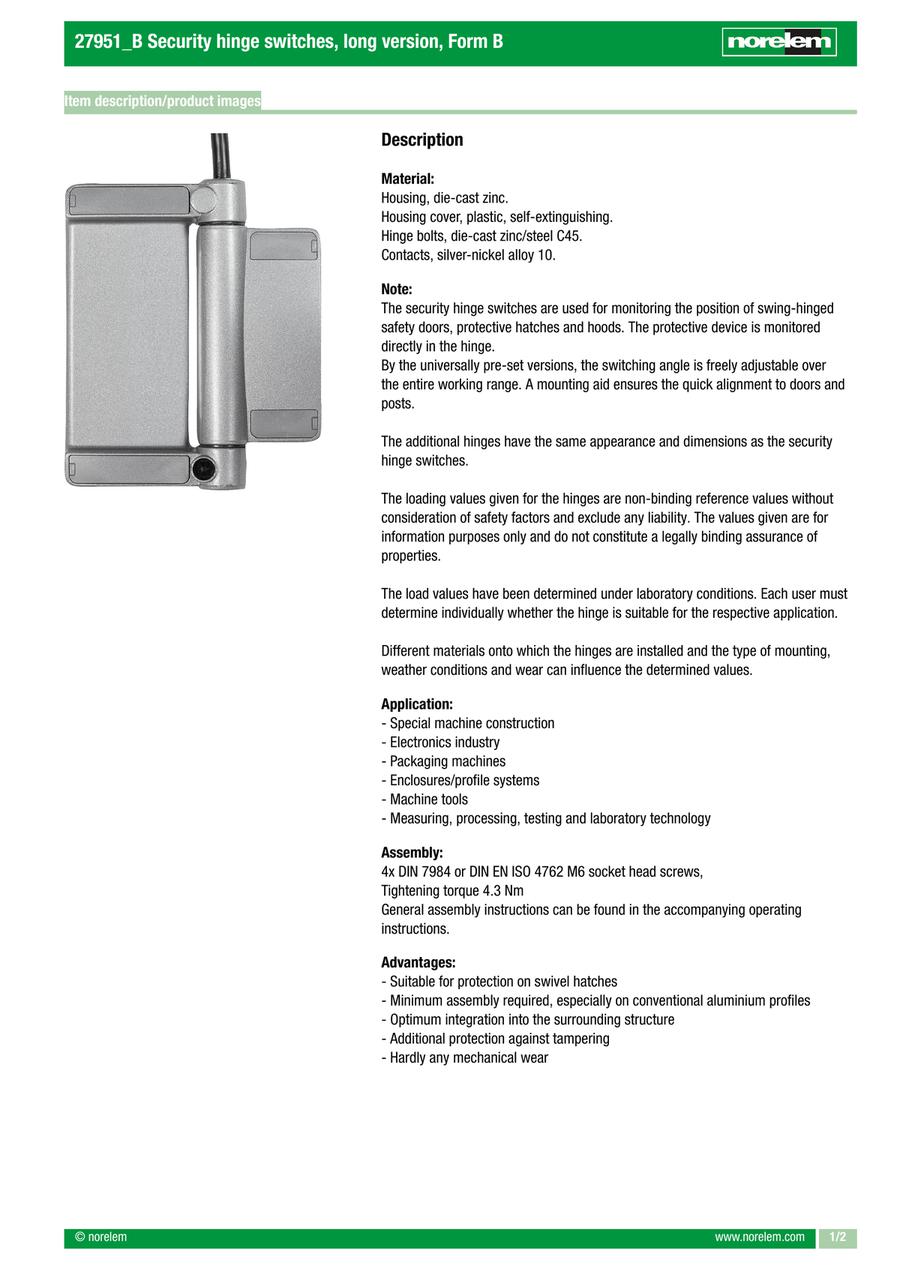

Security hinge switch, form B, zinc, long version (27951)
· For monitoring the position of safety doors, protective covers and protective hoods
· Optimal integration into the surrounding construction
· Switching angle freely adjustable
· With mounting aid
· Greater protection against manipulation
· Optimal integration into the surrounding construction
· Switching angle freely adjustable
· With mounting aid
· Greater protection against manipulation
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 27951-981161121 |
| 27951-981161122 |
| 27951-981162121 |
| 27951-981162122 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Pre-setting | Connection position | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|---|
187.02 € | 1 | 4 Days | external mounting | bottom | 0.5565 | ||
187.02 € | 1 | 4 Days | external mounting | top | 0.5565 | ||
187.02 € | 1 | 4 Days | universal | bottom | 0.5630 | ||
187.02 € | 1 | 4 Days | universal | top | 0.5630 |
Loading...
Basic information
| Main material | zinc | Form | B | Version 2 | long |
|---|---|---|---|---|---|
| Kind of fastening | elongated holes | B=Width | 116 | A=Length | 98 |
| Item | Security Hinge Switch | Product type | hinge with electric switch function | Component material | plastic |
| F1(N) | 5000 | F2(N) | 5000 | Contacts | 1C / 2O |
| Connection type | cable |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
