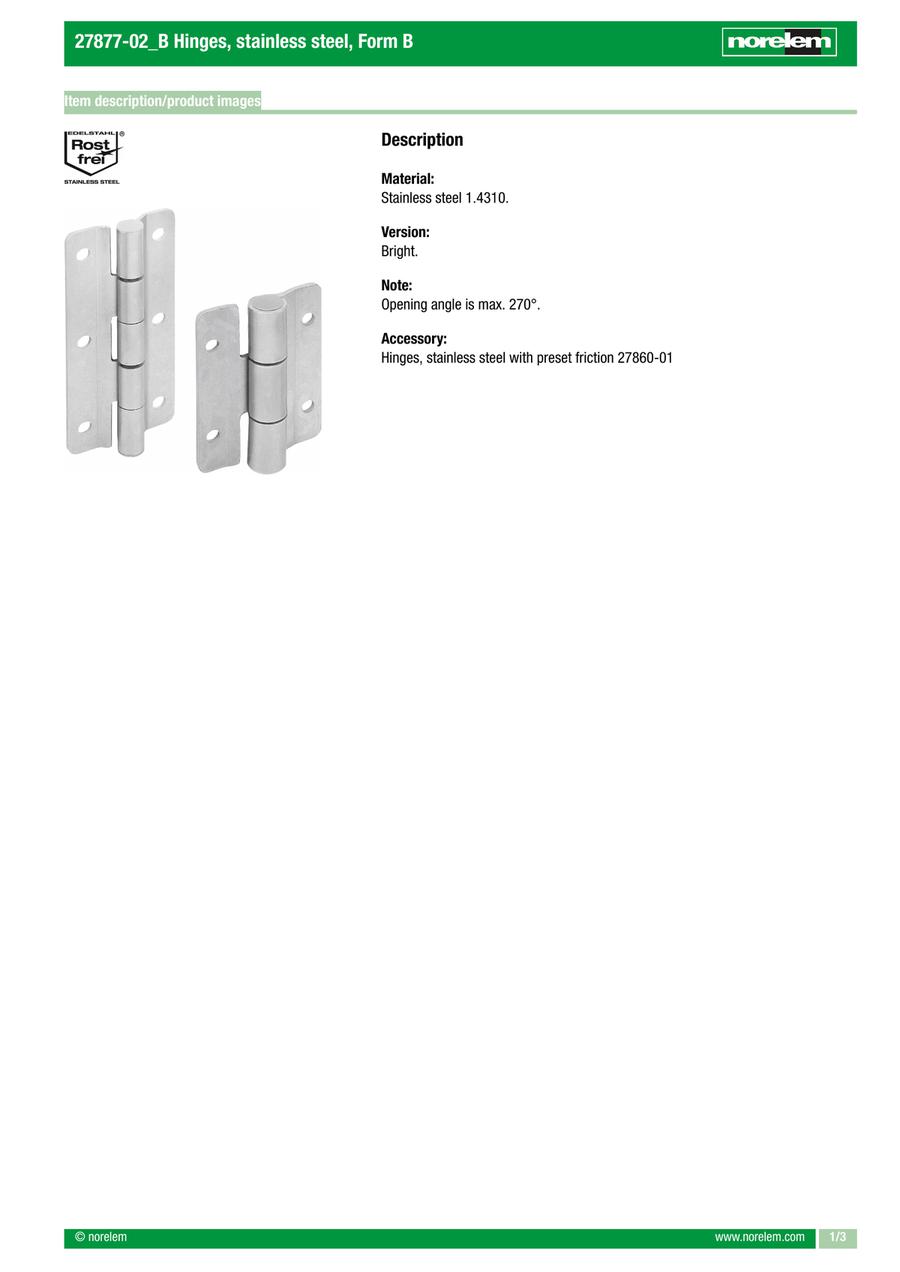

Hinge screw on, form B fastening holes, stainless steel (27877)
· Corrosion-resistant
· Simple assembly
· For right or left use.
· Simple assembly
· For right or left use.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
27877-02-658515
- Product data
- CAD data not available
Basic information
| A1 | 50 | Main material | stainless steel A2 | Steel code | 1.4301 |
|---|---|---|---|---|---|
| Form | B | Kind of fastening | fastening holes | B=Width | 85 |
| B1 | 48 | D | 6.3 | D1 | 15 |
| S | 3 | A=Length | 65 | Item | Hinge |
| Version 1 | screw on | Product type | hinge | RoHS | yes |
| PL Edelstahl | yes | Weight in kg (ERP)(kg) | 0.2300 |
This page is Hinge screw on, form B fastening holes, stainless steel (27877), part number 27877-02-658515.
You can find the detail information about specifications and dimensions on part number 27877-02-658515.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
