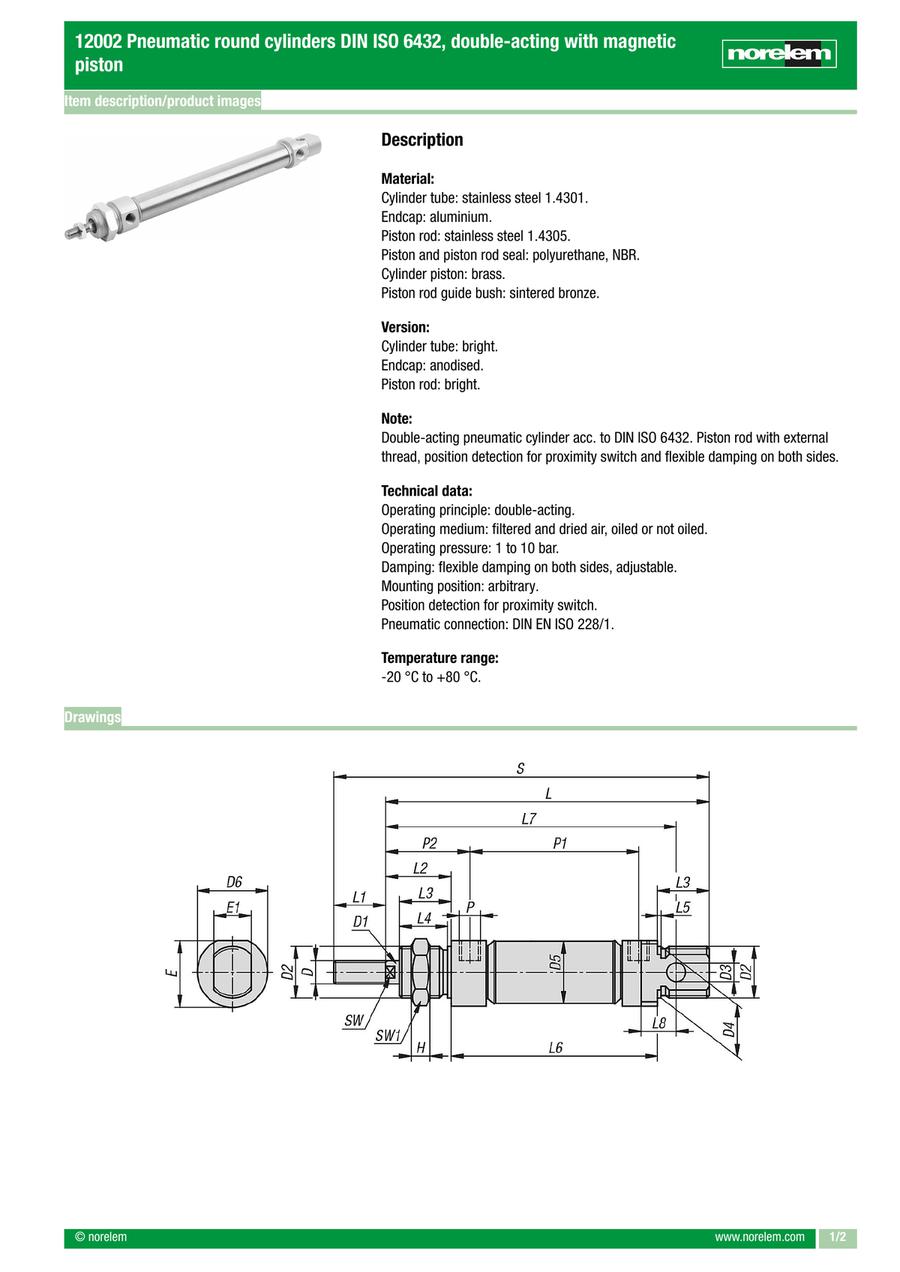

Pneumatic cylinder, round cylinder DIN ISO 6432, double-acting, external thread (12002)
· Stainless steel cylinder
· Flexible damping integrated on both sides
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Cylinder Ø | D | D1 | D2 | D3 | D4 | D5 | D6 | E | E1 | H | L | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | P | P1 | P2 | Piston force at 6 bar (N) | Retraction force at 6 bar (N) | SW | SW1 | Travel S | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
56.29 € | 1 | 4 Days | 10 | M4 | 4 | M12x1.5 | 4 | 12 | 11.3 | 16 | 15 | 8 | 7 | 84 | 12 | 16 | 12 | 11 | 1 | 56 | 74 | 6 | M5 | 46 | 21 | 40 | 32 | - | 19 | 10 | 0.0452 | ||
56.64 € | 1 | 4 Days | 10 | M4 | 4 | M12x1.5 | 4 | 12 | 11.3 | 16 | 15 | 8 | 7 | 99 | 12 | 16 | 12 | 11 | 1 | 71 | 89 | 6 | M5 | 61 | 21 | 40 | 32 | - | 19 | 25 | 0.0495 | ||
60.00 € | 1 | 4 Days | 12 | M6 | 6 | M16x1.5 | 6 | 16 | 13.3 | 19 | 18 | 12 | 5 | 98 | 16 | 22 | 18 | 16.5 | 1.5 | 58 | 85 | 9 | M5 | 48 | 27 | 54 | 37 | 5 | 22 | 10 | 0.0722 | ||
60.33 € | 1 | 4 Days | 12 | M6 | 6 | M16x1.5 | 6 | 16 | 13.3 | 19 | 18 | 12 | 5 | 113 | 16 | 22 | 18 | 16.5 | 1.5 | 73 | 100 | 9 | M5 | 63 | 27 | 54 | 37 | 5 | 22 | 25 | 0.0783 | ||
67.95 € | 1 | 4 Days | 16 | M6 | 6 | M16x1.5 | 6 | 16 | 17.3 | 19 | 18 | 12 | 5 | 103 | 16 | 22 | 18 | 16.5 | 1.5 | 63 | 92 | 9 | M5 | 54 | 27 | 105 | 88 | 5 | 22 | 10 | 0.0908 | ||
68.24 € | 1 | 4 Days | 16 | M6 | 6 | M16x1.5 | 6 | 16 | 17.3 | 19 | 18 | 12 | 5 | 118 | 16 | 22 | 18 | 16.5 | 1.5 | 78 | 107 | 9 | M5 | 69 | 27 | 105 | 88 | 5 | 22 | 25 | 0.0981 | ||
68.94 € | 1 | 4 Days | 16 | M6 | 6 | M16x1.5 | 6 | 16 | 17.3 | 19 | 18 | 12 | 5 | 143 | 16 | 22 | 18 | 16.5 | 1.5 | 103 | 132 | 9 | M5 | 94 | 27 | 105 | 88 | 5 | 22 | 50 | 0.1117 | ||
73.82 € | 1 | 4 Days | 20 | M8 | 8 | M22x1.5 | 8 | 22 | 21.3 | 27 | 25.5 | 16 | 8 | 121 | 20 | 24 | 20 | 18.5 | 1.5 | 77 | 105 | 12 | G1/8 | 61.5 | 32 | 172 | 142 | 7 | 27 | 10 | 0.1780 | ||
74.31 € | 1 | 4 Days | 20 | M8 | 8 | M22x1.5 | 8 | 22 | 21.3 | 27 | 25.5 | 16 | 8 | 136 | 20 | 24 | 20 | 18.5 | 1.5 | 92 | 120 | 12 | G1/8 | 76.5 | 32 | 172 | 142 | 7 | 27 | 25 | 0.1894 | ||
75.32 € | 1 | 4 Days | 20 | M8 | 8 | M22x1.5 | 8 | 22 | 21.3 | 27 | 25.5 | 16 | 8 | 161 | 20 | 24 | 20 | 18.5 | 1.5 | 117 | 145 | 12 | G1/8 | 101.5 | 32 | 172 | 142 | 7 | 27 | 50 | 0.2076 | ||
76.34 € | 1 | 4 Days | 20 | M8 | 8 | M22x1.5 | 8 | 22 | 21.3 | 27 | 25.5 | 16 | 8 | 191 | 20 | 24 | 20 | 18.5 | 1.5 | 147 | 175 | 12 | G1/8 | 131.5 | 32 | 172 | 142 | 7 | 27 | 80 | 0.2271 | ||
81.28 € | 1 | 4 Days | 20 | M8 | 8 | M22x1.5 | 8 | 22 | 21.3 | 27 | 25.5 | 16 | 8 | 211 | 20 | 24 | 20 | 18.5 | 1.5 | 167 | 195 | 12 | G1/8 | 151.5 | 32 | 172 | 142 | 7 | 27 | 100 | 0.2422 | ||
82.21 € | 1 | 4 Days | 20 | M8 | 8 | M22x1.5 | 8 | 22 | 21.3 | 27 | 25.5 | 16 | 8 | 236 | 20 | 24 | 20 | 18.5 | 1.5 | 192 | 220 | 12 | G1/8 | 176.5 | 32 | 172 | 142 | 7 | 27 | 125 | 0.2601 | ||
87.80 € | 1 | 4 Days | 20 | M8 | 8 | M22x1.5 | 8 | 22 | 21.3 | 27 | 25.5 | 16 | 8 | 271 | 20 | 24 | 20 | 18.5 | 1.5 | 227 | 255 | 12 | G1/8 | 211.5 | 32 | 172 | 142 | 7 | 27 | 160 | 0.2866 | ||
89.33 € | 1 | 4 Days | 20 | M8 | 8 | M22x1.5 | 8 | 22 | 21.3 | 27 | 25.5 | 16 | 8 | 311 | 20 | 24 | 20 | 18.5 | 1.5 | 267 | 295 | 12 | G1/8 | 251.5 | 32 | 172 | 142 | 7 | 27 | 200 | 0.3127 | ||
78.37 € | 1 | 4 Days | 25 | M10x1.25 | 10 | M22x1.5 | 8 | 22 | 26.5 | 30 | 28.5 | 16 | 8 | 128 | 22 | 28 | 22 | 20.5 | 1.5 | 78 | 114 | 12 | G1/8 | 62 | 36 | 265 | 218 | 9 | 27 | 10 | 0.2520 | ||
78.88 € | 1 | 4 Days | 25 | M10x1.25 | 10 | M22x1.5 | 8 | 22 | 26.5 | 30 | 28.5 | 16 | 8 | 143 | 22 | 28 | 22 | 20.5 | 1.5 | 93 | 129 | 12 | G1/8 | 77 | 36 | 265 | 218 | 9 | 27 | 25 | 0.2687 | ||
79.87 € | 1 | 4 Days | 25 | M10x1.25 | 10 | M22x1.5 | 8 | 22 | 26.5 | 30 | 28.5 | 16 | 8 | 168 | 22 | 28 | 22 | 20.5 | 1.5 | 118 | 154 | 12 | G1/8 | 102 | 36 | 265 | 218 | 9 | 27 | 50 | 0.2967 | ||
85.57 € | 1 | 4 Days | 25 | M10x1.25 | 10 | M22x1.5 | 8 | 22 | 26.5 | 30 | 28.5 | 16 | 8 | 198 | 22 | 28 | 22 | 20.5 | 1.5 | 148 | 184 | 12 | G1/8 | 132 | 36 | 265 | 218 | 9 | 27 | 80 | 0.3290 | ||
86.48 € | 1 | 4 Days | 25 | M10x1.25 | 10 | M22x1.5 | 8 | 22 | 26.5 | 30 | 28.5 | 16 | 8 | 218 | 22 | 28 | 22 | 20.5 | 1.5 | 168 | 204 | 12 | G1/8 | 152 | 36 | 265 | 218 | 9 | 27 | 100 | 0.3507 | ||
87.49 € | 1 | 4 Days | 25 | M10x1.25 | 10 | M22x1.5 | 8 | 22 | 26.5 | 30 | 28.5 | 16 | 8 | 243 | 22 | 28 | 22 | 20.5 | 1.5 | 193 | 229 | 12 | G1/8 | 177 | 36 | 265 | 218 | 9 | 27 | 125 | 0.3784 | ||
93.62 € | 1 | 4 Days | 25 | M10x1.25 | 10 | M22x1.5 | 8 | 22 | 26.5 | 30 | 28.5 | 16 | 8 | 278 | 22 | 28 | 22 | 20.5 | 1.5 | 228 | 264 | 12 | G1/8 | 212 | 36 | 265 | 218 | 9 | 27 | 160 | 0.4167 | ||
95.50 € | 1 | 4 Days | 25 | M10x1.25 | 10 | M22x1.5 | 8 | 22 | 26.5 | 30 | 28.5 | 16 | 8 | 318 | 22 | 28 | 22 | 20.5 | 1.5 | 268 | 304 | 12 | G1/8 | 252 | 36 | 265 | 218 | 9 | 27 | 200 | 0.4631 |
Loading...
Basic information
| Component material | stainless steel | DIN ISO | DIN ISO 6432 | Item | Pneumatic Cylinder |
|---|---|---|---|---|---|
| Main material | stainless steel | Version 1 | Round cylinder | RoHS | yes |
Configure
Basic Attributes
-
Cylinder Ø
-
D
-
D1
-
D2
-
D3
-
D4
- 12
- 16
- 22
-
D5
- 11.3
- 13.3
- 17.3
- 21.3
- 26.5
-
D6
- 16
- 19
- 27
- 30
-
E
- 15
- 18
- 25.5
- 28.5
-
E1
- 8
- 12
- 16
-
H
-
L
- 84
- 98
- 99
- 103
- 113
- 118
- 121
- 128
- 136
- 143
- 161
- 168
- 191
- 198
- 211
- 218
- 236
- 243
- 271
- 278
- 311
- 318
-
L1
-
L2
-
L3
-
L4
-
L5
- 1
- 1.5
-
L6
-
L7
-
L8
- 6
- 9
- 12
-
P
- G1/8
- M5
-
P1
-
P2
-
Piston force at 6 bar(N)
-
Retraction force at 6 bar(N)
-
SW
-
SW1
-
Travel S
- 10
- 25
- 50
- 80
- 100
- 125
- 160
- 200
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
