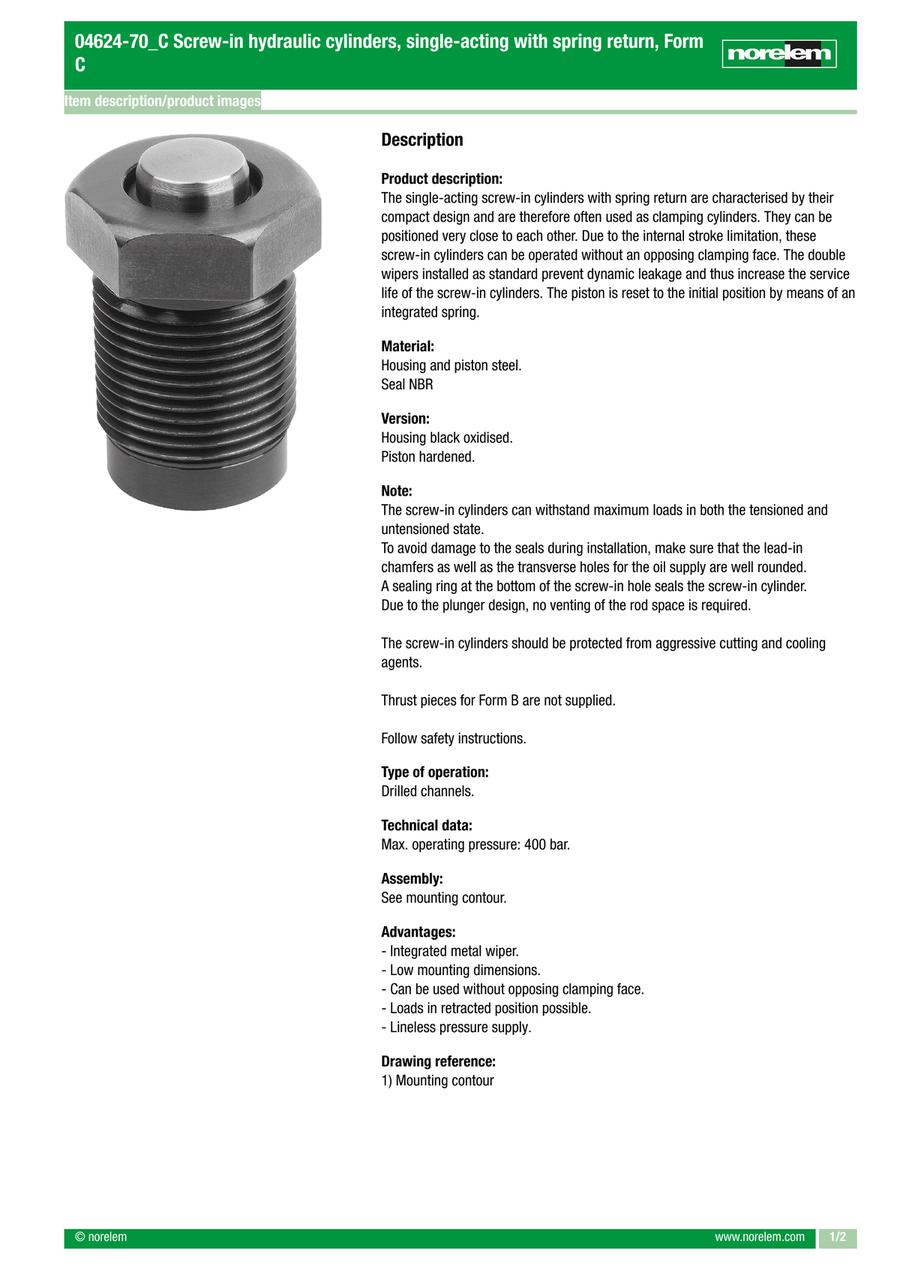

Screw-in hydraulic cylinders, form C single-acting (04624)
· Double wiper
· High load rating
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 04624-70-1210230911 |
| 04624-70-1612230911 |
| 04624-70-2015230911 |
| 04624-70-2516230911 |
| 04624-70-3220230911 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Clamping force at 100 bar (kN) | Clamping force at 400 bar (kN) | D | G | H | H1 | H10 | H2 | H3 | H8 | H9 | Item | L | Oil requirement / 10mm travel (cm³) | Piston Ø | Spring return force min. (N) | SW | Tightening torque max. (Nm) | travel | Version 1 | RoHS | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
138.41 € | 1 | 4 Days | 1.1 | 4.5 | 6 | M22x1.5 | 45.5 | 27 | 26.5 | 7 | 10.5 | 15 | 6 | Screw-in cylinder | 31 | 1.13 | 12 | 30 | 24 | 40 | 10 | hydraulic | yes | 0.1000 | ||
139.84 € | 1 | 4 Days | 2 | 8 | 6 | M26x1.5 | 54 | 34 | 33.5 | 8 | 11 | 19 | 7 | - | 34 | 2.01 | 16 | 50 | 27 | 50 | 12 | - | - | 0.1600 | ||
171.23 € | 1 | 4 Days | 3.1 | 12.5 | 7 | M30x1.5 | 69.5 | 43 | 42.5 | 8 | 17.5 | 23 | 7 | Screw-in cylinder | 40 | 3.14 | 20 | 75 | 32 | 60 | 15 | hydraulic | yes | 0.2600 | ||
191.21 € | 1 | 4 Days | 4.9 | 19.6 | 7 | M38x1.5 | 72.5 | 45.5 | 45 | 11 | 18 | 26.5 | 10 | Screw-in cylinder | 52 | 4.91 | 25 | 125 | 41 | 80 | 16 | hydraulic | yes | 0.4300 | ||
279.67 € | 1 | 4 Days | 8 | 32 | 8 | M48x1.5 | 100 | 71.5 | 71 | 12 | 20 | 40 | 11 | Screw-in cylinder | 62 | 8.04 | 32 | 200 | 50 | 225 | 20 | hydraulic | yes | 1.0300 |
Loading...
Basic information
| Connection type | drilled channels | Form | C | Form definition | single-acting |
|---|---|---|---|---|---|
| Main material | steel | Surface finish body | black oxidised | PL Edelstahl | no |
Configure
Basic Attributes
-
Clamping force at 100 bar(kN)
- 1.1
- 2
- 3.1
- 4.9
- 8
-
Clamping force at 400 bar(kN)
- 4.5
- 8
- 12.5
- 19.6
- 32
-
D
-
G
-
H
-
H1
-
H10
- 26.5
- 33.5
- 42.5
- 45
- 71
-
H2
- 7
- 8
- 11
- 12
-
H3
-
H8
- 15
- 19
- 23
- 26.5
- 40
-
H9
- 6
- 7
- 10
- 11
-
Item
- Screw-in cylinder
-
L
- 31
- 34
- 40
- 52
- 62
-
Oil requirement / 10mm travel(cm³)
- 1.13
- 2.01
- 3.14
- 4.91
- 8.04
-
Piston Ø
- 12
- 16
- 20
- 25
- 32
-
Spring return force min.(N)
- 30
- 50
- 75
- 125
- 200
-
SW
-
Tightening torque max.(Nm)
- 40
- 50
- 60
- 80
- 225
-
travel
- 10
- 12
- 15
- 16
- 20
-
Version 1
- hydraulic
-
RoHS
- yes
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
