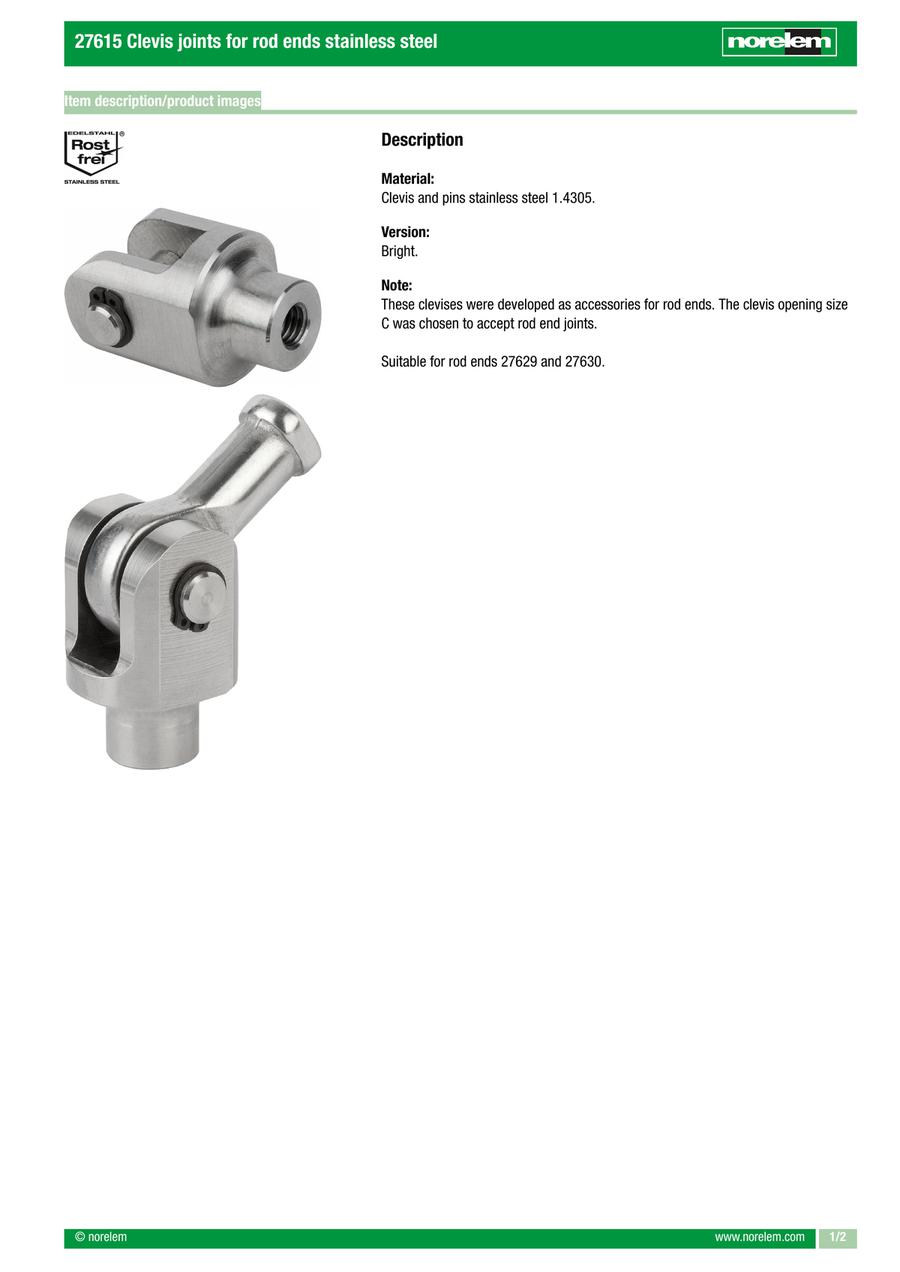

Clevis joint for rod ends, stainless steel (27615)
· Application sectors: machine and vehicle construction, material handling
· Suitable for rod ends 27629 & 27630
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 27615-05080516 |
| 27615-06090618 |
| 27615-08120820 |
| 27615-10141025 |
| 27615-12161229 |
| 27615-16211638 |
| 27615-20252045 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | D1 | L3 | L2 | L4 | L1 | F static (kN) | D2 | D3 | B | L | R1 | C | D | W | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
27.30 € | 1 | 4 Days | 5 | 10.5 | 21.5 | 0.5 | 20.5 | 8 | M5 | 18 | 16 | 29.5 | 8.5 | 8 | 13 | 6.5 | 0.0293 | ||
26.68 € | 1 | 4 Days | 6 | 11.5 | 25 | 0.5 | 22.9 | 9 | M6 | 20 | 18 | 33.5 | 9 | 9 | 15 | 7 | 0.0432 | ||
28.86 € | 1 | 4 Days | 8 | 13.5 | 31.5 | 1 | 24.9 | 14.5 | M8 | 24 | 20 | 41 | 10.5 | 12 | 17 | 8 | 0.0656 | ||
30.93 € | 1 | 4 Days | 10 | 16 | 38 | 1 | 30.3 | 19.5 | M10 | 28 | 25 | 49.5 | 12.5 | 14 | 21 | 8 | 0.1180 | ||
37.22 € | 1 | 4 Days | 12 | 18 | 44 | 1.5 | 34.3 | 23.5 | M12 | 32 | 29 | 57.5 | 15 | 16 | 25 | 8 | 0.1870 | ||
65.87 € | 1 | 4 Days | 16 | 23.5 | 58 | 1.5 | 43.3 | 32 | M16 | 42 | 38 | 76.5 | 20 | 21 | 30 | 99 | 0.3918 | ||
119.65 € | 1 | 4 Days | 20 | 29.5 | 68 | - | 51.9 | 43 | M20 | 50 | 45 | 90.5 | 22.5 | 25 | 38 | 99 | 0.6760 |
Loading...
Basic information
| Main material | stainless steel | Version 1 | for rod ends | Item | Clevis Joint |
|---|---|---|---|---|---|
| RoHS | yes | PL Edelstahl | yes |
