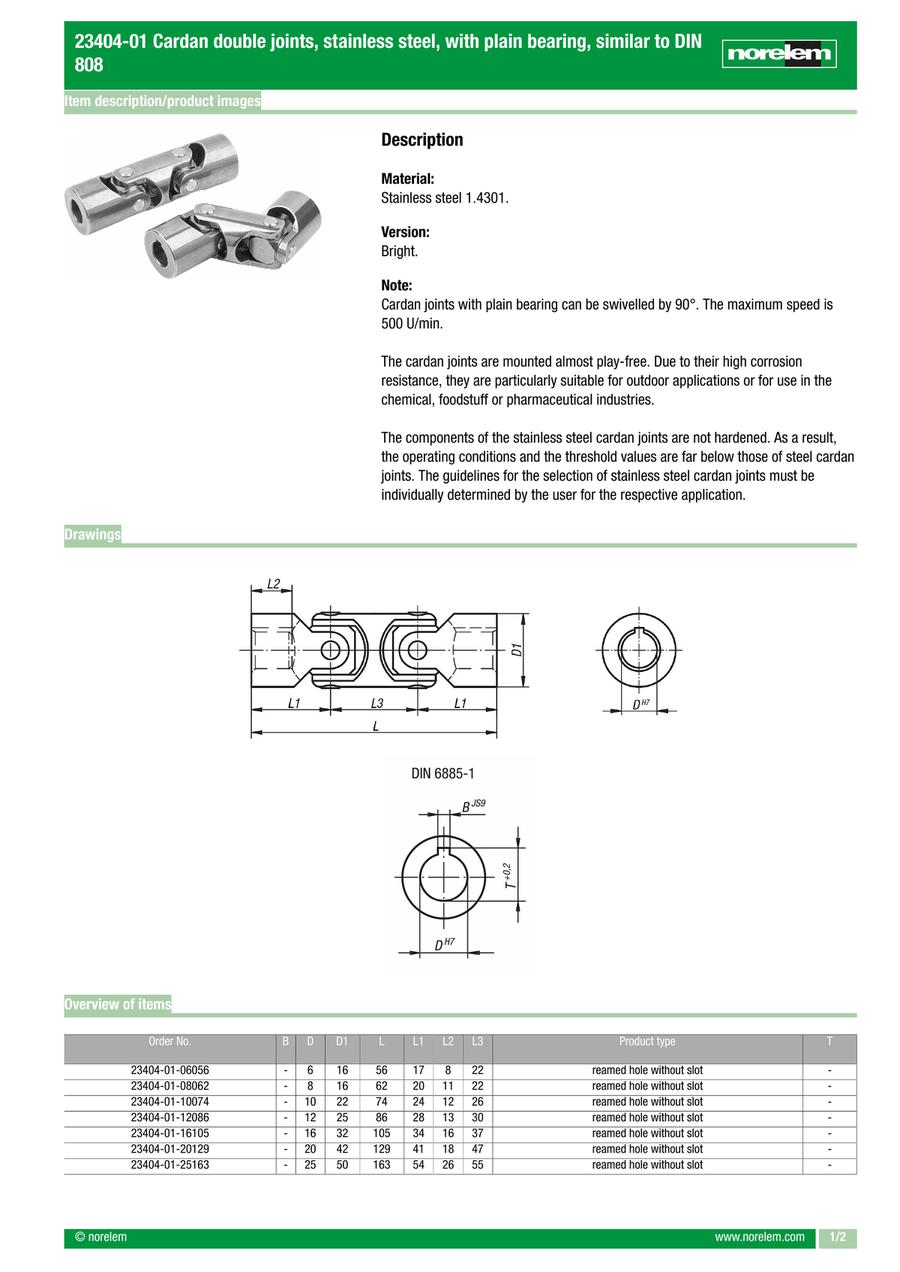

Cardan double joints, stainless steel, with plain bearing, similar to DIN 808 (23404-01)
· Max. deflection angle 90°
· High wear resistance, long service life
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | D1 (Ø) | Overall Length W (mm) | L1 (mm) | L2 (mm) | L3 (mm) | D=Fastening hole | T (mm) | B (mm) | Product type | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
103.50 € | 1 | 4 Days | 16 | 56 | 17 | 8 | 22 | 6 | - | - | Reamed hole without slot | 0.0800 | ||
95.92 € | 1 | 4 Days | 16 | 62 | 20 | 11 | 22 | 8 | - | - | Reamed hole without slot | 0.0800 | ||
95.50 € | 1 | 4 Days | 22 | 74 | 24 | 12 | 26 | 10 | - | - | Reamed hole without slot | 0.1500 | ||
106.91 € | 1 | 4 Days | 16 | 56 | 17 | 8 | 22 | 6 | 7 | 2 | Reamed hole with slot | 0.0800 | ||
99.47 € | 1 | 4 Days | 16 | 62 | 20 | 11 | 22 | 8 | 9 | 2 | Reamed hole with slot | 0.0800 | ||
105.09 € | 1 | 4 Days | 22 | 74 | 24 | 12 | 26 | 10 | 11.4 | 3 | Reamed hole with slot | 0.1500 | ||
118.96 € | 1 | 4 Days | 25 | 86 | 28 | 13 | 30 | 12 | 13.8 | 4 | Reamed hole with slot | 0.2500 | ||
141.56 € | 1 | 4 Days | 32 | 105 | 34 | 16 | 37 | 16 | 18.3 | 5 | Reamed hole with slot | 0.4500 | ||
109.85 € | 1 | 4 Days | 25 | 86 | 28 | 13 | 30 | 12 | - | - | Reamed hole without slot | 0.2222 | ||
174.27 € | 1 | 4 Days | 42 | 129 | 41 | 18 | 47 | 20 | 22.8 | 6 | Reamed hole with slot | 1.0000 | ||
231.38 € | 1 | 4 Days | 50 | 163 | 54 | 26 | 55 | 25 | 28.3 | 8 | Reamed hole with slot | 2.0000 | ||
122.70 € | 1 | 4 Days | 32 | 105 | 34 | 16 | 37 | 16 | - | - | Reamed hole without slot | 0.4500 | ||
167.79 € | 1 | 4 Days | 42 | 129 | 41 | 18 | 47 | 20 | - | - | Reamed hole without slot | 1.0000 | ||
233.25 € | 1 | 4 Days | 50 | 163 | 54 | 26 | 55 | 25 | - | - | Reamed hole without slot | 2.0000 |
Loading...
Basic information
| Body Material | Stainless Steel | Version 1 | Double | Version 2 | With plain bearing |
|---|---|---|---|---|---|
| Main material | Stainless steel | Item | Cardan joint | DIN | Similar to DIN 808 |
| Steel code | 1.4301 | RoHS | Yes | PL Edelstahl | Yes |
