HKP Series

HKP Series
  • Volume Discount
2.54 mm pitch, straight, right angle through hole type connector.

[Features]
· Based on our original design, the contacts have provide highly reliable contact.
· A wide range of connection combinations are possible from single circuit connections to multi-circuit connections.
· Wire connection work is performed using a crimping machine that can perform wire connections for 3, 000 terminals/H and a hand tool for small lots is also available.
· A UL-certified product is used as an insulator.
· Reworking wiring mistakes is also simplified using the removal tool.
▪ Mating with FFC, MFC, HSC, DIC series is supported

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number

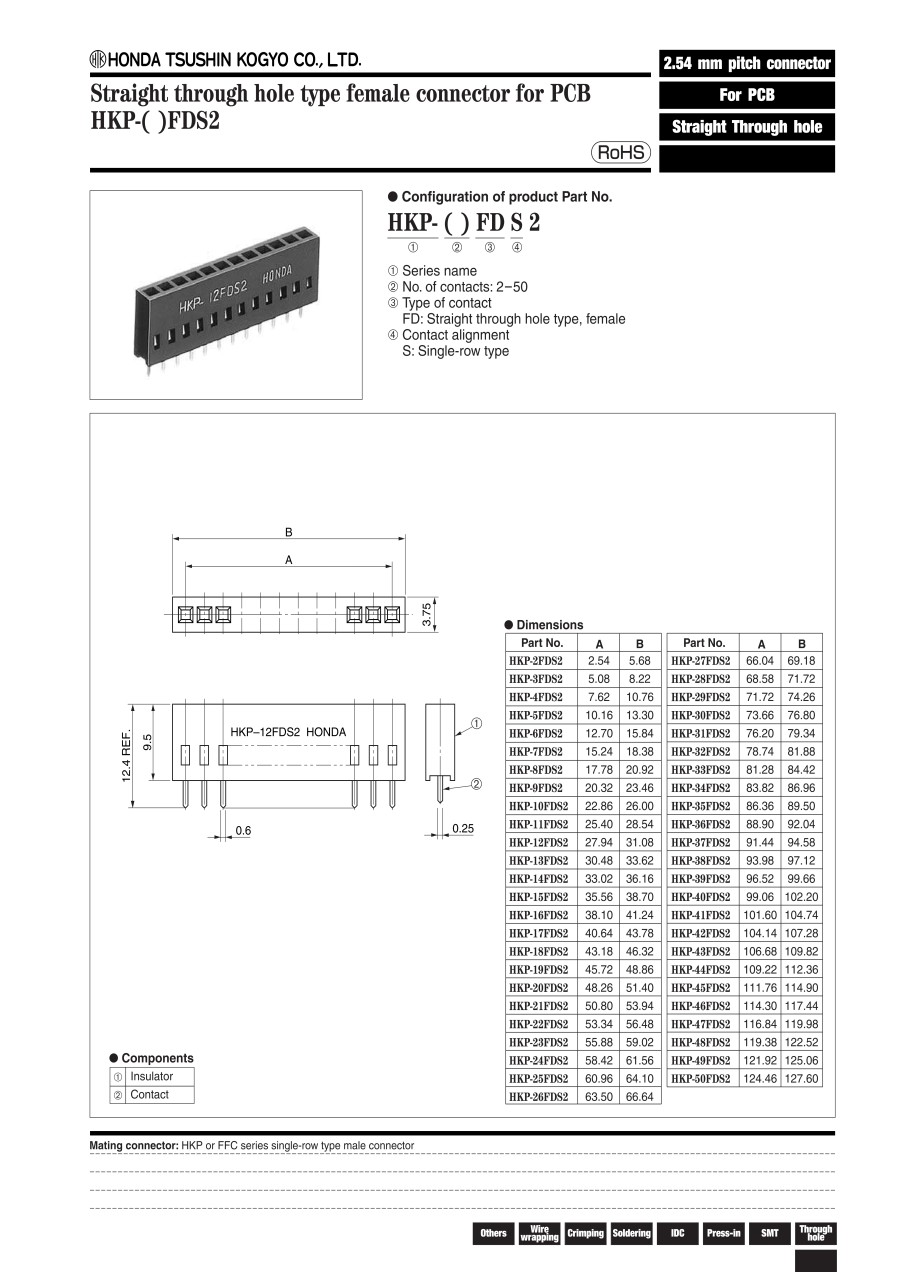

HKP-5FDS2
HKP-10FD2
HKP-20FD2
HKP-20M2
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Applicable pin/contact Number Of Cores Features Used pin/contact size
(mm)

2.32 €

100 12 Days Female5Dip type (1 columns)0.6 x 0.25

3.22 €

100 Available 6 Days Female10Dip type (2 columns)0.6 x 0.25

5.15 €

100 12 Days Female20Dip type (2 columns)0.6 x 0.25

3.25 €

100 12 Days Male20Dip type (2 columns)□0.635

Loading...

  1. 1

Basic information

Connector Shape Square shape Connector series initials G/H/I G/H/I HKP
Application For Circuit Boards Allowable Current(A) 3 Allowable Voltage(V) AC300
Connection direction Straight Protection function (environmentally resistant) N/A Contact surface treatment Gold Plating
Quantity of units ordered(Piece) 100
