Discrete Wire for Connection, DF1E Series (2.5 mm Pitch)【1-100 Pieces Per Package】
- Promotional pricing
- Volume Discount
In-stock items are custom products, therefore returns and cancellations are not possible. Thank you.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Number of pc(s). included in pkg. | Minimum order quantity | Volume Discount | Applicable pin/contact | Number Of Cores | Connector Type | Rated Current (A) | Wiring Method | Connection direction | Plating of part touching terminal | Product Category | Specifications | Features | Conforming wire size (AWG) | Contact Pitch (mm) | Wire connection form | Terminal pitch (mm) | Special Notes | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
24.04 € 10.82 € | 100 Pieces Per Package | 1 pack | Available |
Same day

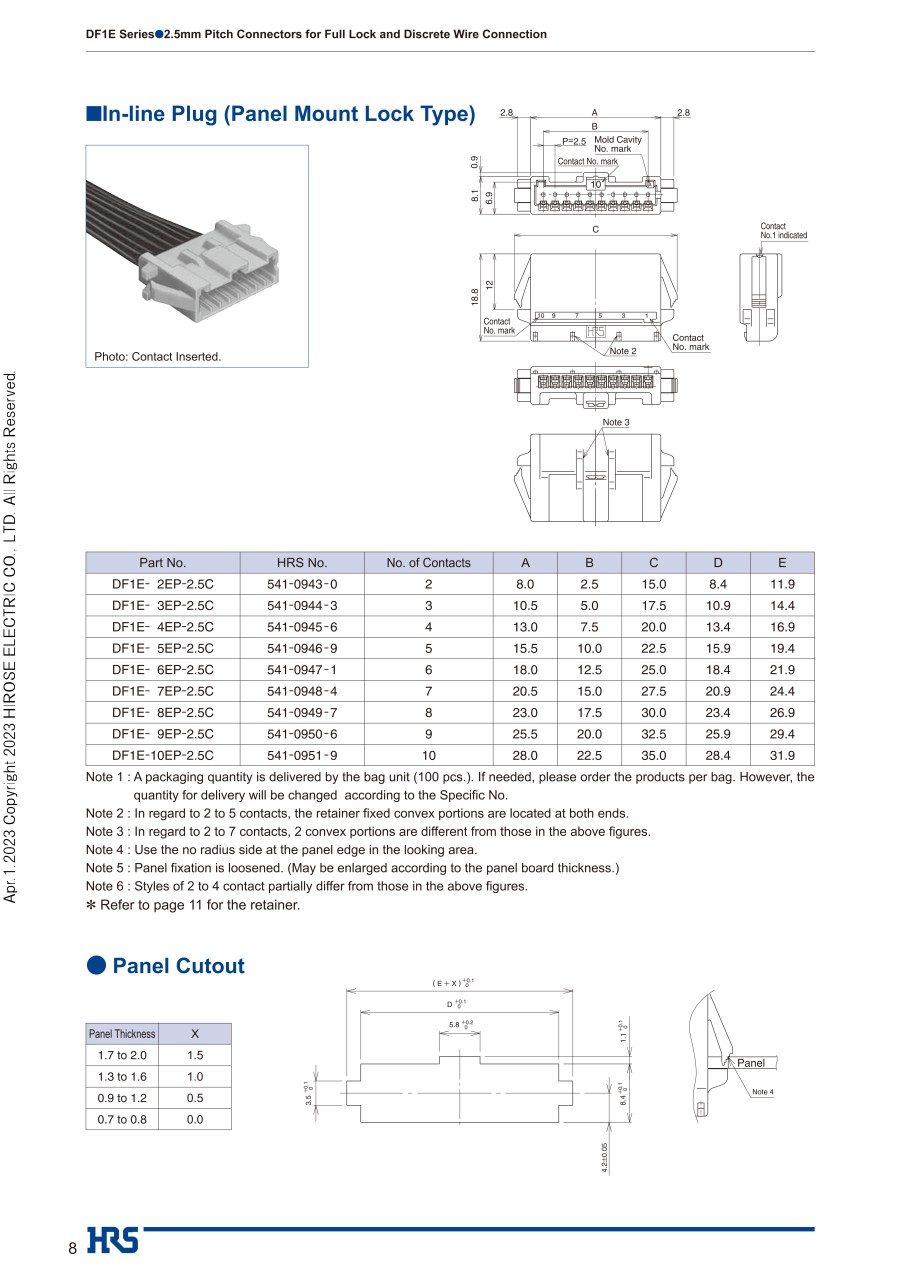

Stock | Male | 2 | Panel Mount | 3 | Crimp | Straight | No terminal | Plug | With panel lock | NA | NA | 2.5 | Crimp case | 2.5 | - | |
5.61 € 2.69 € | 100 Pieces Per Package | 1 pack | Available |
Same day
Stock | Female | 2 | [Cable Connection] Cable Connection | 3 | Crimp | Straight | No terminal | Socket | NA | NA | NA | 2.5 | Crimp case | 2.5 | Use DF1B series terminals for the female crimp terminals. If mounting a retainer using wires of AWG#22 or greater, use a DF1E crimp terminal. | |
26.22 € 12.32 € | 100 Pieces Per Package | 1 pack | Available |
Same day
Stock | Male | 3 | Panel Mount | 3 | Crimp | Straight | No terminal | Plug | With panel lock | NA | NA | 2.5 | Crimp case | 2.5 | - | |
31.89 € | 100 Pieces Per Package | 1 pack | Available | 6 Days | Male | 3 | For PCB | 3 | [Other] Circuit Board Mounting (DIP) | Angle | Tin | Pin Header | NA | NA | NA | 2.5 | Right angle dip | 2.5 | - | |
9.45 € 5.20 € | 100 Pieces Per Package | 1 pack | Available |
Same day
Stock | Female | 3 | [Cable Connection] Cable Connection | 3 | Crimp | Straight | No terminal | Socket | NA | NA | NA | 2.5 | Crimp case | 2.5 | Use DF1B series terminals for the female crimp terminals. If mounting a retainer using wires of AWG#22 or greater, use a DF1E crimp terminal. | |
28.14 € | 100 Pieces Per Package | 1 pack | 5 Days | Male | 4 | Panel Mount | 3 | Crimp | Straight | No terminal | Plug | With panel lock | NA | NA | 2.5 | Crimp case | 2.5 | - | ||
6.91 € 3.39 € | 100 Pieces Per Package | 1 pack | Available |
Same day
Stock | Female | 4 | [Cable Connection] Cable Connection | 3 | Crimp | Straight | No terminal | Socket | NA | NA | NA | 2.5 | Crimp case | 2.5 | Use DF1B series terminals for the female crimp terminals. If mounting a retainer using wires of AWG#22 or greater, use a DF1E crimp terminal. | |
34.62 € | 100 Pieces Per Package | 1 pack | 5 Days | Male | 5 | Panel Mount | 3 | Crimp | Straight | No terminal | Plug | With panel lock | NA | NA | 2.5 | Crimp case | 2.5 | - | ||
7.59 € 3.72 € | 100 Pieces Per Package | 1 pack | Available |
Same day
Stock | Female | 5 | [Cable Connection] Cable Connection | 3 | Crimp | Straight | No terminal | Socket | NA | NA | NA | 2.5 | Crimp case | 2.5 | Use DF1B series terminals for the female crimp terminals. If mounting a retainer using wires of AWG#22 or greater, use a DF1E crimp terminal. | |
32.38 € 15.22 € | 100 Pieces Per Package | 1 pack | Available |
Same day
Stock | Male | 6 | Panel Mount | 3 | Crimp | Straight | No terminal | Plug | With panel lock | NA | NA | 2.5 | Crimp case | 2.5 | - | |
11.07 € 5.31 € | 100 Pieces Per Package | 1 pack | Available |
Same day
Stock | Female | 6 | [Cable Connection] Cable Connection | 3 | Crimp | Straight | No terminal | Socket | NA | NA | NA | 2.5 | Crimp case | 2.5 | Use DF1B series terminals for the female crimp terminals. If mounting a retainer using wires of AWG#22 or greater, use a DF1E crimp terminal. | |
14.96 € 6.58 € | 100 Pieces Per Package | 1 pack | Available |
Same day
Stock | Female | 7 | [Cable Connection] Cable Connection | 3 | Crimp | Straight | No terminal | Socket | NA | NA | NA | 2.5 | Crimp case | 2.5 | Use DF1B series terminals for the female crimp terminals. If mounting a retainer using wires of AWG#22 or greater, use a DF1E crimp terminal. | |
42.02 € | 100 Pieces Per Package | 1 pack | 5 Days | Male | 8 | Panel Mount | 3 | Crimp | Straight | No terminal | Plug | With panel lock | NA | NA | 2.5 | Crimp case | 2.5 | - | ||
15.67 € 6.27 € | 100 Pieces Per Package | 1 pack | Available |
Same day
Stock | Female | 8 | [Cable Connection] Cable Connection | 3 | Crimp | Straight | No terminal | Socket | NA | NA | NA | 2.5 | Crimp case | 2.5 | Use DF1B series terminals for the female crimp terminals. If mounting a retainer using wires of AWG#22 or greater, use a DF1E crimp terminal. | |
44.18 € | 100 Pieces Per Package | 1 pack | 5 Days | Male | 9 | Panel Mount | 3 | Crimp | Straight | No terminal | Plug | With panel lock | NA | NA | 2.5 | Crimp case | 2.5 | - | ||
16.85 € 7.08 € | 100 Pieces Per Package | 1 pack | Available |
Same day
Stock | Female | 9 | [Cable Connection] Cable Connection | 3 | Crimp | Straight | No terminal | Socket | NA | NA | NA | 2.5 | Crimp case | 2.5 | Use DF1B series terminals for the female crimp terminals. If mounting a retainer using wires of AWG#22 or greater, use a DF1E crimp terminal. | |
0.47 € | 5 | Available | 5 Days | Male | 10 | Panel Mount | 3 | Crimp | Straight | No terminal | Plug | With panel lock | NA | NA | 2.5 | Crimp case | 2.5 | - | ||
57.00 € | 100 Pieces Per Package | 1 pack | Available | 6 Days | Male | 10 | For PCB | 3 | [Other] Circuit Board Mounting (DIP) | Angle | Tin | Pin Header | NA | NA | NA | 2.5 | Right angle dip | 2.5 | - | |
14.65 € 7.33 € | 100 Pieces Per Package | 1 pack | Available |
Same day
Stock | Female | 10 | [Cable Connection] Cable Connection | 3 | Crimp | Straight | No terminal | Socket | NA | NA | NA | 2.5 | Crimp case | 2.5 | Use DF1B series terminals for the female crimp terminals. If mounting a retainer using wires of AWG#22 or greater, use a DF1E crimp terminal. | |
26.03 € | 100 Pieces Per Package | 1 pack | Available | 5 Days | Female | 11 | [Cable Connection] Cable Connection | 3 | Crimp | Straight | No terminal | Socket | NA | NA | NA | 2.5 | Crimp case | 2.5 | Use DF1B series terminals for the female crimp terminals. If mounting a retainer using wires of AWG#22 or greater, use a DF1E crimp terminal. | |
26.52 € | 100 Pieces Per Package | 1 pack | Available | 5 Days | Female | 12 | [Cable Connection] Cable Connection | 3 | Crimp | Straight | No terminal | Socket | NA | NA | NA | 2.5 | Crimp case | 2.5 | Use DF1B series terminals for the female crimp terminals. If mounting a retainer using wires of AWG#22 or greater, use a DF1E crimp terminal. | |
27.68 € | 100 Pieces Per Package | 1 pack | 5 Days | Female | 13 | [Cable Connection] Cable Connection | 3 | Crimp | Straight | No terminal | Socket | NA | NA | NA | 2.5 | Crimp case | 2.5 | Use DF1B series terminals for the female crimp terminals. If mounting a retainer using wires of AWG#22 or greater, use a DF1E crimp terminal. | ||
28.65 € | 100 Pieces Per Package | 1 pack | Available | 5 Days | Female | 14 | [Cable Connection] Cable Connection | 3 | Crimp | Straight | No terminal | Socket | NA | NA | NA | 2.5 | Crimp case | 2.5 | Use DF1B series terminals for the female crimp terminals. If mounting a retainer using wires of AWG#22 or greater, use a DF1E crimp terminal. | |
29.38 € | 100 Pieces Per Package | 1 pack | Available | 5 Days | Female | 15 | [Cable Connection] Cable Connection | 3 | Crimp | Straight | No terminal | Socket | NA | NA | NA | 2.5 | Crimp case | 2.5 | Use DF1B series terminals for the female crimp terminals. If mounting a retainer using wires of AWG#22 or greater, use a DF1E crimp terminal. | |
4.55 € 2.18 € | 100 Pieces Per Package | 1 pack | Available |
Same day
Stock | Male | - | [Cable Connection] Cable Connection | 3 | Crimp | - | Tin | Terminal | NA | Loose terminal | 20–22 | NA | Male terminal | NA | - | |
4.59 € 1.93 € | 100 Pieces Per Package | 1 pack | Available |
Same day
Stock | Female | - | [Cable Connection] Cable Connection | 3 | Crimp | - | Tin | Terminal | NA | Loose terminal | 20–22 | NA | Female terminal | NA | Use if mounting a retainer. | |
6.63 € 2.06 € | 100 Pieces Per Package | 1 pack | Available |
Same day
Stock | Male | - | [Cable Connection] Cable Connection | 1 | Crimp | - | Tin | Terminal | NA | Loose terminal | 28 to 24 | NA | Male terminal | NA | - | |
0.27 € 0.12 € | 5 | Available |
Same day
Stock | Male | 2 | [Cable Connection] Cable Connection | 3 | Crimp | Straight | No terminal | Plug | NA | NA | NA | 2.5 | Crimp case | 2.5 | - | ||
31.62 € 14.23 € | 100 Pieces Per Package | 1 pack | Available |
Same day
Stock | Male | 3 | [Cable Connection] Cable Connection | 3 | Crimp | Straight | No terminal | Plug | NA | NA | NA | 2.5 | Crimp case | 2.5 | - | |
0.33 € | 5 | Available | 5 Days | Male | 4 | [Cable Connection] Cable Connection | 3 | Crimp | Straight | No terminal | Plug | NA | NA | NA | 2.5 | Crimp case | 2.5 | - | ||
0.34 € | 3 | Available | 5 Days | Male | 5 | [Cable Connection] Cable Connection | 3 | Crimp | Straight | No terminal | Plug | NA | NA | NA | 2.5 | Crimp case | 2.5 | - | ||
37.49 € | 100 Pieces Per Package | 1 pack | Available | 5 Days | Male | 6 | [Cable Connection] Cable Connection | 3 | Crimp | Straight | No terminal | Plug | NA | NA | NA | 2.5 | Crimp case | 2.5 | - | |
0.47 € | 5 | Available | 5 Days | Male | 10 | [Cable Connection] Cable Connection | 3 | Crimp | Straight | No terminal | Plug | NA | NA | NA | 2.5 | Crimp case | 2.5 | - | ||
63.91 € | 100 Pieces Per Package | 1 pack | 6 Days | Male | 7 | For PCB | 3 | [Other] Circuit Board Mounting (DIP) | Straight | Tin | Pin Header | NA | NA | NA | 2.5 | Straight dip | 2.5 | - | ||
69.25 € | 100 Pieces Per Package | 1 pack | 6 Days | Male | 9 | For PCB | 3 | [Other] Circuit Board Mounting (DIP) | Straight | Tin | Pin Header | NA | NA | NA | 2.5 | Straight dip | 2.5 | - | ||
82.70 € | 100 Pieces Per Package | 1 pack | 6 Days | Male | 11 | For PCB | 3 | [Other] Circuit Board Mounting (DIP) | Straight | Tin | Pin Header | NA | NA | NA | 2.5 | Straight dip | 2.5 | - | ||
87.44 € | 100 Pieces Per Package | 1 pack | 6 Days | Male | 13 | For PCB | 3 | [Other] Circuit Board Mounting (DIP) | Straight | Tin | Pin Header | NA | NA | NA | 2.5 | Straight dip | 2.5 | - |
Loading...
Basic information
| Connector Shape | Rectangular | Connector series initials | D/E/F | D/E/F | DF |
|---|---|---|---|---|---|
| Allowable Voltage(V) | AC250 | Representative Standard | UL / CUL | Operating Temperature Range(°C) | -35 to +85 |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Applicable pin/contact
- Male
- Female
-
Number Of Cores
-
Connector Type
- Cable Connection
- For PCB
- Panel Mount
- Cable Connection
-
Rated Current(A)
-
Wiring Method
- Crimp
- Other
-
Connection direction
- Straight
- Angle
-
Plating of part touching terminal
- No terminal
- Tin
-
Product Category
-
Specifications
- NA
- With panel lock
-
Features
- Loose terminal
- NA
-
Conforming wire size(AWG)
- 20–22
- 28 to 24
- NA
-
Contact Pitch(mm)
-
Wire connection form
- Crimp case
- Female terminal
- Male terminal
- Right angle dip
- Straight dip
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
