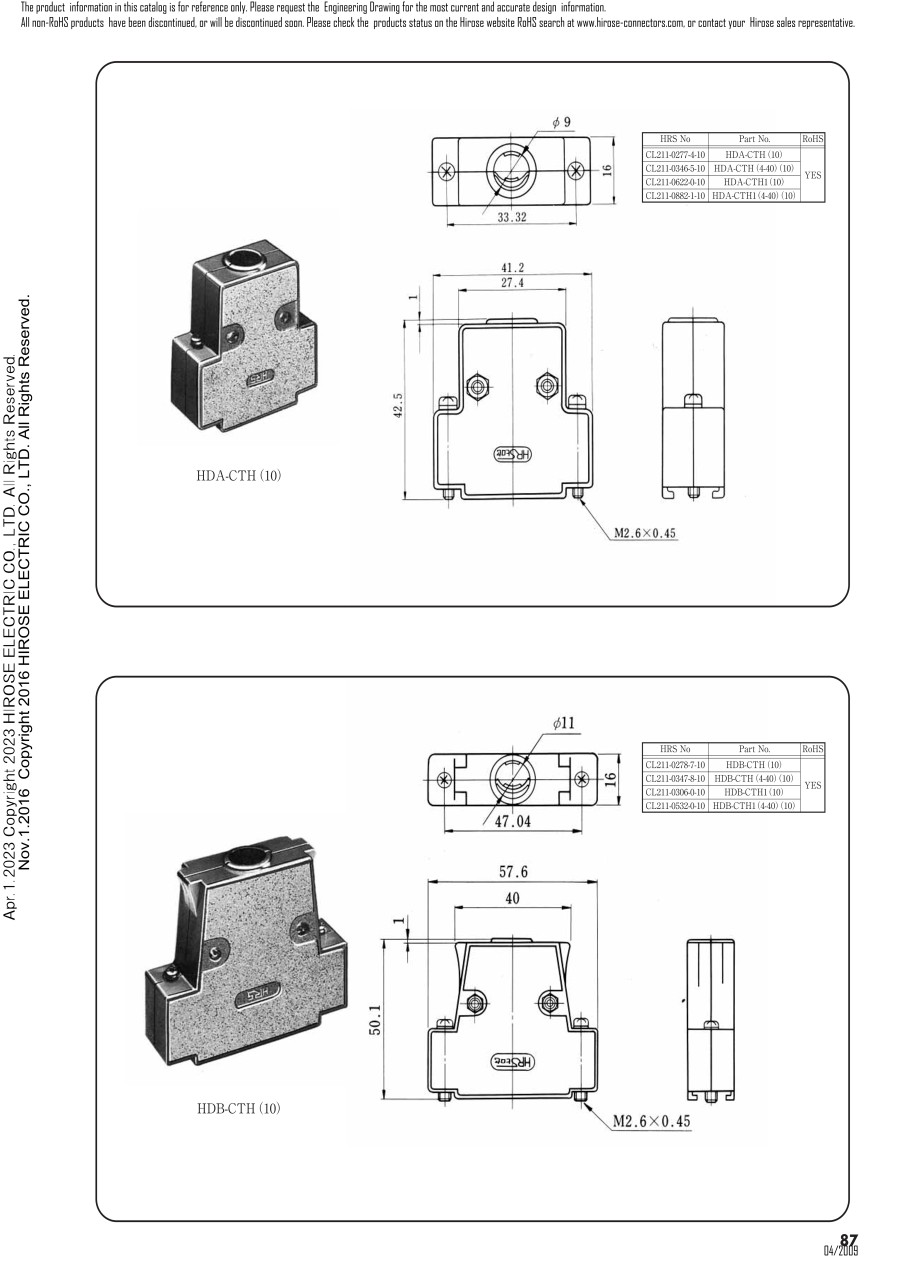

D-Sub Connector Plug Cases (EMI Shielded), CTH Series
- Volume Discount
[Features]
· Because the lock mechanism is a screw type mechanism it is rugged and reliable.
· Because the material properties call for plating a tough ABS resin, the resin is lightweight, solid, and provides an improved electromagnetic wave shielding effect.
· In order to improve the shield effect, the cable clamp is secured using 2 types of clamps on the shield part and the clamp has a configuration for pinching the plug cases together.
• Use screws to ground the drain wire of the cable with a clamp.
• Easily incorporated using solder (HD type), pressure contact (FD*D type) or crimping (CD type).
• For FD*D, however, wire a fused I/O cable when using the case.
• CTH-type plug cases use UL94HB ABS resin and the plating conforms to the UL746C standard.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Number Of Cores | Specifications | Features | |
|---|---|---|---|---|---|---|---|---|
19.19 € | 1 | Available | 5 Days | 10 | 15 | Rotating lock screw | Screw type: inch type | |
14.78 € | 1 | 6 Days | - | 15 | Rotating lock screw | Screw type M2.6 type | ||
14.71 € | 1 | Available | 5 Days | 10 | 15 | Lock screw for screwdrivers | Screw type: inch type | |
13.21 € | 1 | Available | 6 Days | - | 15 | Lock screw for screwdrivers | Screw type M2.6 type | |
20.77 € | 1 | Available | 6 Days | - | 25 | Rotating lock screw | Screw type: inch type | |
16.62 € | 1 | 6 Days | - | 25 | Rotating lock screw | Screw type M2.6 type | ||
15.44 € | 1 | Available | 5 Days | 10 | 25 | Lock screw for screwdrivers | Screw type: inch type | |
13.37 € | 2 | 6 Days | - | 25 | Lock screw for screwdrivers | Screw type M2.6 type | ||
22.28 € | 1 | Available | 6 Days | - | 37 | Rotating lock screw | Screw type: inch type | |
18.89 € | 1 | Available | 6 Days | - | 37 | Rotating lock screw | Screw type M2.6 type | |
14.47 € | 1 | Available | 5 Days | 10 | 37 | Lock screw for screwdrivers | Screw type: inch type | |
17.37 € | 1 | 6 Days | - | 37 | Lock screw for screwdrivers | Screw type M2.6 type | ||
16.78 € | 1 | Available | 5 Days | 10 | 9 | Rotating lock screw | Screw type: inch type | |
13.63 € | 1 | 6 Days | - | 9 | Rotating lock screw | Screw type M2.6 type | ||
11.49 € | 1 | Available | 5 Days | 10 | 9 | Lock screw for screwdrivers | Screw type: inch type | |
13.22 € | 2 | 6 Days | - | 9 | Lock screw for screwdrivers | Screw type M2.6 type |
Loading...
Basic information
| Connector Shape | Rectangular | Connector series initials | A/B/C | A/B/C | CTH |
|---|---|---|---|---|---|
| D/E/F | Dsub | Connection direction | Straight | Product Category | Plug case |
| Operating Temperature Range(°C) | -55 to +65 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
