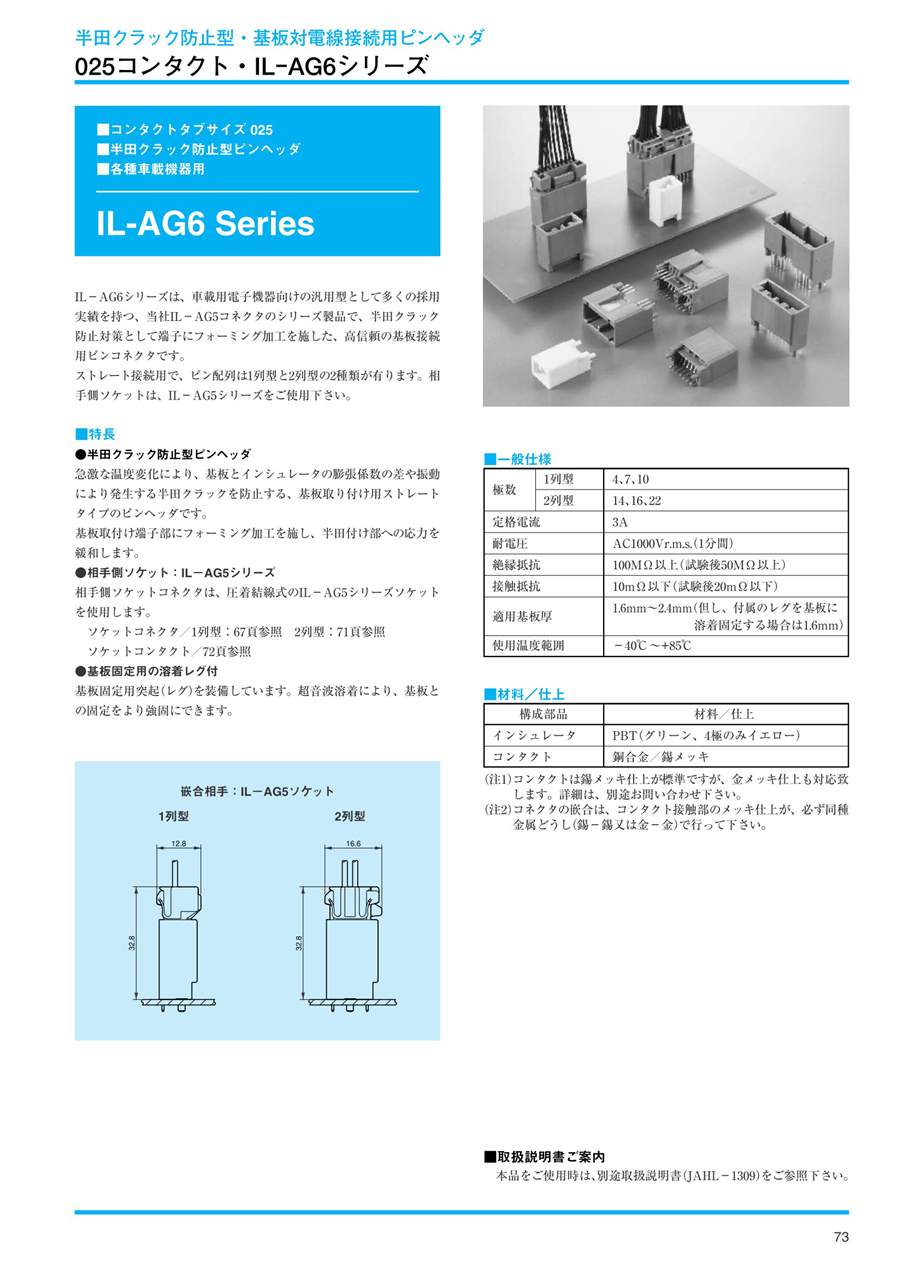

IL-AG6 Series
- Volume Discount
This is a pin connector for reliable connection to the circuit board, formed to the terminal as a measure to prevent solder joint cracking.
[Features]
・A pin header for prevention of solder joint cracking.
・A straight-type pin header for mounting to circuit boards. Prevents solder cracking that occurs due to extreme changes in temperature, board and insulator expansion coefficient, and vibration.
・This type is formed to a section of the terminal mounted to the circuit board for alleviating stress on the soldered section.
・ Mating sockets: IL-AG5 Series
・ IL-AG5 Series sockets with crimped wire connections are used for the mating socket connectors.
・ Comes with welded legs for securing the circuit board.
・ Equipped with protrusions (legs) for holding the circuit board in place.
・ Ultrasonic welding provides greater rigidity for securing the circuit board.
[Features]
・A pin header for prevention of solder joint cracking.
・A straight-type pin header for mounting to circuit boards. Prevents solder cracking that occurs due to extreme changes in temperature, board and insulator expansion coefficient, and vibration.
・This type is formed to a section of the terminal mounted to the circuit board for alleviating stress on the soldered section.
・ Mating sockets: IL-AG5 Series
・ IL-AG5 Series sockets with crimped wire connections are used for the mating socket connectors.
・ Comes with welded legs for securing the circuit board.
・ Equipped with protrusions (legs) for holding the circuit board in place.
・ Ultrasonic welding provides greater rigidity for securing the circuit board.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| IL-AG6-7P-S3T2 |
| IL-AG6-10P-S3T2 |
| IL-AG6-14P-D3T2 |
| IL-AG6-22P-D3T2 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Number Of Cores | Features | |
|---|---|---|---|---|---|---|
3.81 € | 1 | Available | 5 Days | 7 | 1-line type | |
4.47 € | 1 | Available | 5 Days | 10 | 1-line type | |
5.14 € | 1 | Available | 5 Days | 14 | 2-line type | |
5.79 € | 1 | Available | 5 Days | 22 | 2-line type |
Loading...
Basic information
| Connector Shape | Square shape | Connector series initials | G/H/I | Applicable pin/contact | Male (plug) |
|---|---|---|---|---|---|
| Application | For PCB | Connection direction | Straight | Protection function (environmentally resistant) | N/A |
| Type | For Automobile | Connector Type | Pin Header | Connector type | Trough hole type |
| Insulator material | PBT | Contact contacting part finish | Tin | Contact board packaging part finish | Tin |
| Special Notes | Insulator color: Green |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
