Configure

Applicable pin/contact
- Male (plug)
- Female (socket)
Number Of Cores
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 12
Wire connection method
- Solder
- Crimp
Connection direction
- Straight
- Angle
Connector Type
- Pin Header
- Socket Housing
Connector type
- 1-line type/NEW type
- Trough hole type
Contact contacting part finish
Contact wire connection finish
Est. shipping days
- All
- Within 5 working days
- Within 6 working days

IL Series

Catalog

Part number:

Still undefined. 43 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Applicable pin/contact	Number Of Cores	Wire connection method	Connection direction	Connector Type	Connector type	Contact contacting part finish	Contact wire connection finish	RoHS?	Minimum order quantity

Male (plug)	2	Solder	Straight	Pin Header	Trough hole type	Tin on nickel	Tin on nickel	10	10 pieces
Male (plug)	2	Solder	Straight	Pin Header	Trough hole type	Gold on nickel	Gold on nickel	10	5 pieces
Male (plug)	2	Solder	Angle	Pin Header	Trough hole type	Tin on nickel	Tin on nickel	10	5 pieces
Male (plug)	2	Solder	Angle	Pin Header	Trough hole type	Gold on nickel	Gold on nickel	10	10 pieces
Female (socket)	2	Crimp	Straight	Socket Housing	1-line type/NEW type	NA	NA	10	15 pieces
Male (plug)	3	Solder	Straight	Pin Header	Trough hole type	Tin on nickel	Tin on nickel	10	10 pieces
Male (plug)	3	Solder	Straight	Pin Header	Trough hole type	Gold on nickel	Gold on nickel	10	5 pieces
Male (plug)	3	Solder	Angle	Pin Header	Trough hole type	Tin on nickel	Tin on nickel	10	5 pieces
Male (plug)	3	Solder	Angle	Pin Header	Trough hole type	Gold on nickel	Gold on nickel	10	10 pieces
Female (socket)	3	Crimp	Straight	Socket Housing	1-line type/NEW type	NA	NA	10	15 pieces
Male (plug)	4	Solder	Straight	Pin Header	Trough hole type	Tin on nickel	Tin on nickel	10	10 pieces
Male (plug)	4	Solder	Straight	Pin Header	Trough hole type	Gold on nickel	Gold on nickel	10	5 pieces
Male (plug)	4	Solder	Angle	Pin Header	Trough hole type	Tin on nickel	Tin on nickel	10	10 pieces
Male (plug)	4	Solder	Angle	Pin Header	Trough hole type	Gold on nickel	Gold on nickel	10	10 pieces
Male (plug)	5	Solder	Straight	Pin Header	Trough hole type	Gold on nickel	Gold on nickel	10	10 pieces
Male (plug)	5	Solder	Straight	Pin Header	Trough hole type	Tin on nickel	Tin on nickel	10	10 pieces
Male (plug)	5	Solder	Angle	Pin Header	Trough hole type	Gold on nickel	Gold on nickel	10	5 pieces
Male (plug)	5	Solder	Angle	Pin Header	Trough hole type	Tin on nickel	Tin on nickel	10	10 pieces
Male (plug)	6	Solder	Straight	Pin Header	Trough hole type	Tin on nickel	Tin on nickel	10	5 pieces
Male (plug)	6	Solder	Straight	Pin Header	Trough hole type	Gold on nickel	Gold on nickel	10	10 pieces
Male (plug)	6	Solder	Angle	Pin Header	Trough hole type	Tin on nickel	Tin on nickel	10	10 pieces
Male (plug)	6	Solder	Angle	Pin Header	Trough hole type	Gold on nickel	Gold on nickel	10	5 pieces
Female (socket)	6	Crimp	Straight	Socket Housing	1-line type/NEW type	NA	NA	10	10 pieces
Male (plug)	7	Solder	Straight	Pin Header	Trough hole type	Tin on nickel	Tin on nickel	10	5 pieces
Male (plug)	7	Solder	Straight	Pin Header	Trough hole type	Gold on nickel	Gold on nickel	10	10 pieces
Male (plug)	7	Solder	Angle	Pin Header	Trough hole type	Tin on nickel	Tin on nickel	10	5 pieces
Male (plug)	7	Solder	Angle	Pin Header	Trough hole type	Gold on nickel	Gold on nickel	10	5 pieces
Female (socket)	7	Crimp	Straight	Socket Housing	1-line type/NEW type	NA	NA	10	10 pieces
Male (plug)	8	Solder	Straight	Pin Header	Trough hole type	Tin on nickel	Tin on nickel	10	5 pieces
Male (plug)	8	Solder	Straight	Pin Header	Trough hole type	Gold on nickel	Gold on nickel	10	10 pieces
Male (plug)	8	Solder	Angle	Pin Header	Trough hole type	Tin on nickel	Tin on nickel	10	10 pieces
Male (plug)	8	Solder	Angle	Pin Header	Trough hole type	Gold on nickel	Gold on nickel	10	5 pieces
Male (plug)	9	Solder	Straight	Pin Header	Trough hole type	Tin on nickel	Tin on nickel	10	10 pieces
Male (plug)	9	Solder	Straight	Pin Header	Trough hole type	Gold on nickel	Gold on nickel	10	10 pieces
Female (socket)	9	Crimp	Straight	Socket Housing	1-line type/NEW type	NA	NA	10	10 pieces
Male (plug)	10	Solder	Straight	Pin Header	Trough hole type	Tin on nickel	Tin on nickel	10	5 pieces
Male (plug)	10	Solder	Straight	Pin Header	Trough hole type	Gold on nickel	Gold on nickel	10	5 pieces
Male (plug)	10	Solder	Angle	Pin Header	Trough hole type	Tin on nickel	Tin on nickel	10	5 pieces
Male (plug)	10	Solder	Angle	Pin Header	Trough hole type	Gold on nickel	Gold on nickel	10	5 pieces
Male (plug)	12	Solder	Straight	Pin Header	Trough hole type	Tin on nickel	Tin on nickel	10	10 pieces
Male (plug)	12	Solder	Straight	Pin Header	Trough hole type	Gold on nickel	Gold on nickel	10	5 pieces
Male (plug)	12	Solder	Angle	Pin Header	Trough hole type	Gold on nickel	Gold on nickel	10	5 pieces
Female (socket)	12	Crimp	Straight	Socket Housing	1-line type/NEW type	NA	NA	10	10 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

0.71 € ( 0.84 € )	6 working days
0.54 € ( 0.64 € )	6 working days
0.73 € ( 0.87 € )	6 working days
1.10 € ( 1.31 € )	6 working days
1.15 € ( 1.37 € )	6 working days
1.71 € ( 2.03 € )	6 working days
1.20 € ( 1.43 € )	6 working days
0.84 € ( 1.00 € )	6 working days
2.67 € ( 3.18 € )	6 working days
1.37 € ( 1.63 € )	6 working days
1.63 € ( 1.94 € )	6 working days
1.23 € ( 1.46 € )	6 working days
0.93 € ( 1.11 € )	6 working days
0.60 € ( 0.71 € )	6 working days
1.65 € ( 1.96 € )	6 working days
1.04 € ( 1.24 € )	6 working days
1.98 € ( 2.36 € )	6 working days
1.03 € ( 1.23 € )	6 working days
0.98 € ( 1.17 € )	6 working days
1.42 € ( 1.69 € )	6 working days
1.84 € ( 2.19 € )	5 working days
0.80 € ( 0.95 € )	6 working days
1.38 € ( 1.64 € )	6 working days
1.14 € ( 1.36 € )	6 working days
0.83 € ( 0.99 € )	6 working days
0.59 € ( 0.70 € )	6 working days
2.51 € ( 2.99 € )	6 working days
0.61 € ( 0.73 € )	6 working days
1.09 € ( 1.30 € )	6 working days
1.42 € ( 1.69 € )	6 working days
1.24 € ( 1.48 € )	6 working days
4.36 € ( 5.19 € )	6 working days
1.21 € ( 1.44 € )	6 working days
0.70 € ( 0.83 € )	6 working days
1.46 € ( 1.74 € )	6 working days
0.40 € ( 0.48 € )	6 working days
0.79 € ( 0.94 € )	6 working days
1.32 € ( 1.57 € )	6 working days
3.31 € ( 3.94 € )	5 working days
1.29 € ( 1.54 € )	6 working days
0.80 € ( 0.95 € )	6 working days
3.79 € ( 4.51 € )	6 working days
0.21 € ( 0.25 € )	6 working days

More Information

Basic information

Basic information

[Features]
· An original 2.5-mm pitch Series connector with a track record of various uses in AV equipment and consumer electronics.

Catalog

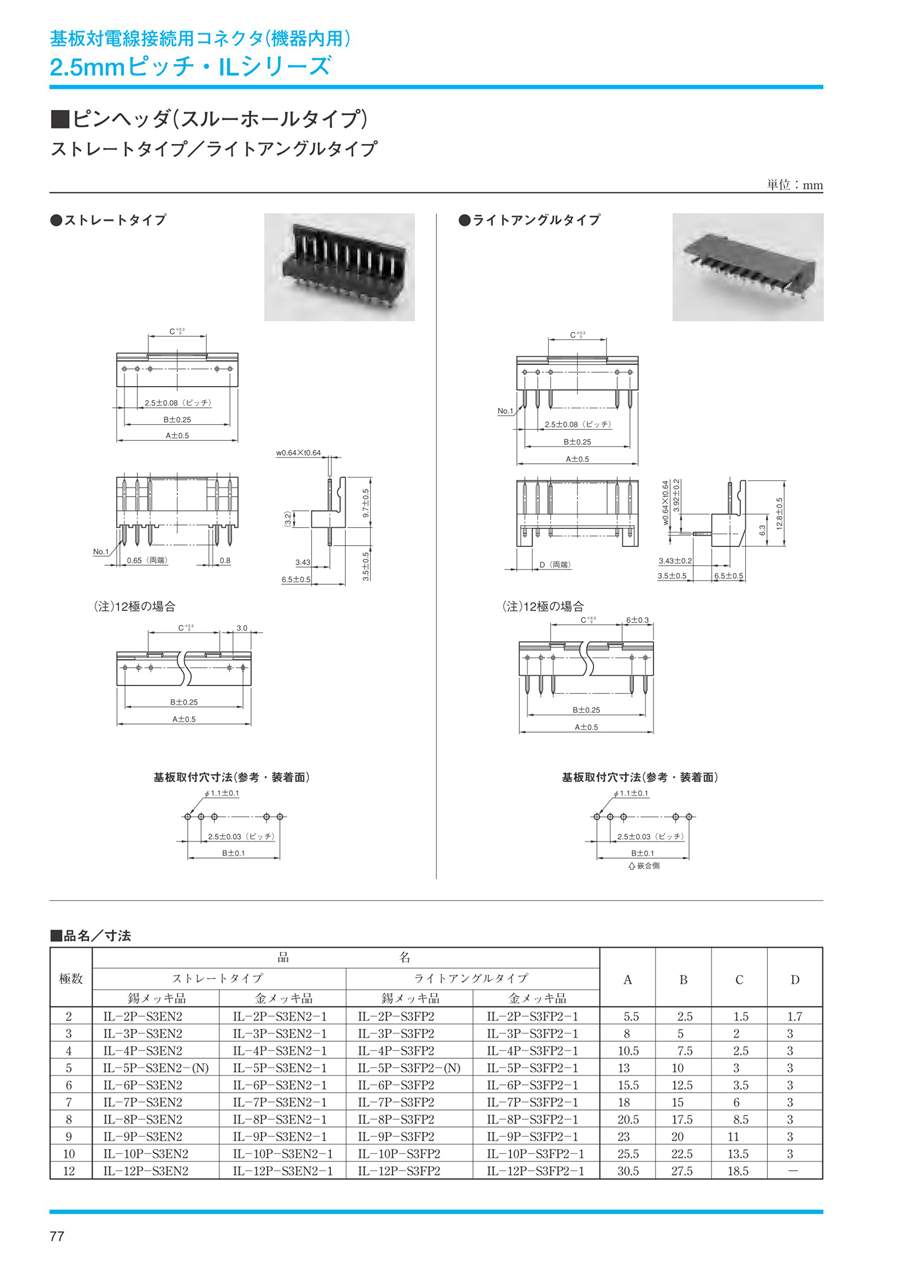

Catalog (2-page spread)
