Configure

Applicable pin/contact
- Male (plug)
- Female (socket)
Number Of Cores
- 12
- 18
- 26
- 34
- 36
- 40
Application
- Cable Connection
- For PCB
Wire connection method
- Crimp
Connection direction
- Straight
- Angle
Connector Type
- Pin Header
- Socket Housing
Connector type
- 2-line type
- 3-line type
Features
- Incorrect Assembly Prevention Type
- Standard Type
Contact contacting part finish
- Tin
Contact board packaging part finish
- Tin
Special Notes
- Through hole type (standard implementation type)
- Trough hole type (reverse implementation type)
Est. shipping days
- All
- Within 6 working days

MX23A Series, Contact

Catalog

Part number:

Still undefined. 16 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Applicable pin/contact	Number Of Cores	Application	Wire connection method	Connection direction	Connector Type	Connector type	Features	Contact contacting part finish	Contact board packaging part finish	Special Notes	Minimum order quantity

Male (plug)	12	For PCB	-	Angle	Pin Header	2-line type	Standard Type	Tin	Tin	Through hole type (standard implementation type)	1 pieces
Female (socket)	12	Cable Connection	Crimp	Straight	Socket Housing	2-line type	Standard Type	-	-	-	1 pieces
Male (plug)	18	For PCB	-	Angle	Pin Header	2-line type	Standard Type	Tin	Tin	Through hole type (standard implementation type)	1 pieces
Male (plug)	18	For PCB	-	Angle	Pin Header	2-line type	Standard Type	Tin	Tin	Trough hole type (reverse implementation type)	1 pieces
Female (socket)	18	Cable Connection	Crimp	Straight	Socket Housing	2-line type	Standard Type	-	-	-	1 pieces
Male (plug)	26	For PCB	-	Angle	Pin Header	2-line type	Standard Type	Tin	Tin	Through hole type (standard implementation type)	1 pieces
Male (plug)	26	For PCB	-	Angle	Pin Header	2-line type	Standard Type	Tin	Tin	Trough hole type (reverse implementation type)	1 pieces
Female (socket)	26	Cable Connection	Crimp	Straight	Socket Housing	2-line type	Standard Type	-	-	-	1 pieces
Male (plug)	34	For PCB	-	Angle	Pin Header	2-line type	Standard Type	Tin	Tin	Through hole type (standard implementation type)	1 pieces
Male (plug)	34	For PCB	-	Angle	Pin Header	2-line type	Standard Type	Tin	Tin	Trough hole type (reverse implementation type)	1 pieces
Male (plug)	34	For PCB	-	Angle	Pin Header	2-line type	Incorrect Assembly Prevention Type	Tin	Tin	Through hole type (standard implementation type)	1 pieces
Female (socket)	34	Cable Connection	Crimp	Straight	Socket Housing	2-line type	Standard Type	-	-	-	1 pieces
Female (socket)	34	Cable Connection	Crimp	Straight	Socket Housing	2-line type	Incorrect Assembly Prevention Type	-	-	-	1 pieces
Female (socket)	36	Cable Connection	Crimp	Straight	Socket Housing	3-line type	Standard Type	-	-	-	1 pieces
Male (plug)	40	For PCB	-	Angle	Pin Header	2-line type	Standard Type	Tin	Tin	Through hole type (standard implementation type)	1 pieces
Female (socket)	40	Cable Connection	Crimp	Straight	Socket Housing	2-line type	Standard Type	-	-	-	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

7.38 € ( 8.78 € )	6 working days
7.17 € ( 8.53 € )	6 working days
8.67 € ( 10.32 € )	6 working days
8.47 € ( 10.08 € )	6 working days
7.38 € ( 8.78 € )	6 working days
10.12 € ( 12.04 € )	6 working days
10.12 € ( 12.04 € )	6 working days
9.60 € ( 11.42 € )	6 working days
11.20 € ( 13.33 € )	6 working days
11.20 € ( 13.33 € )	6 working days
12.32 € ( 14.66 € )	6 working days
11.76 € ( 13.99 € )	6 working days
12.84 € ( 15.28 € )	6 working days
12.84 € ( 15.28 € )	6 working days
12.32 € ( 14.66 € )	6 working days
15.70 € ( 18.68 € )	6 working days

More Information

Basic information

Basic information

[Features]
· A small low-profile connector, which can be widely used in vehicles, motor bikes and other types of waterproof equipment.

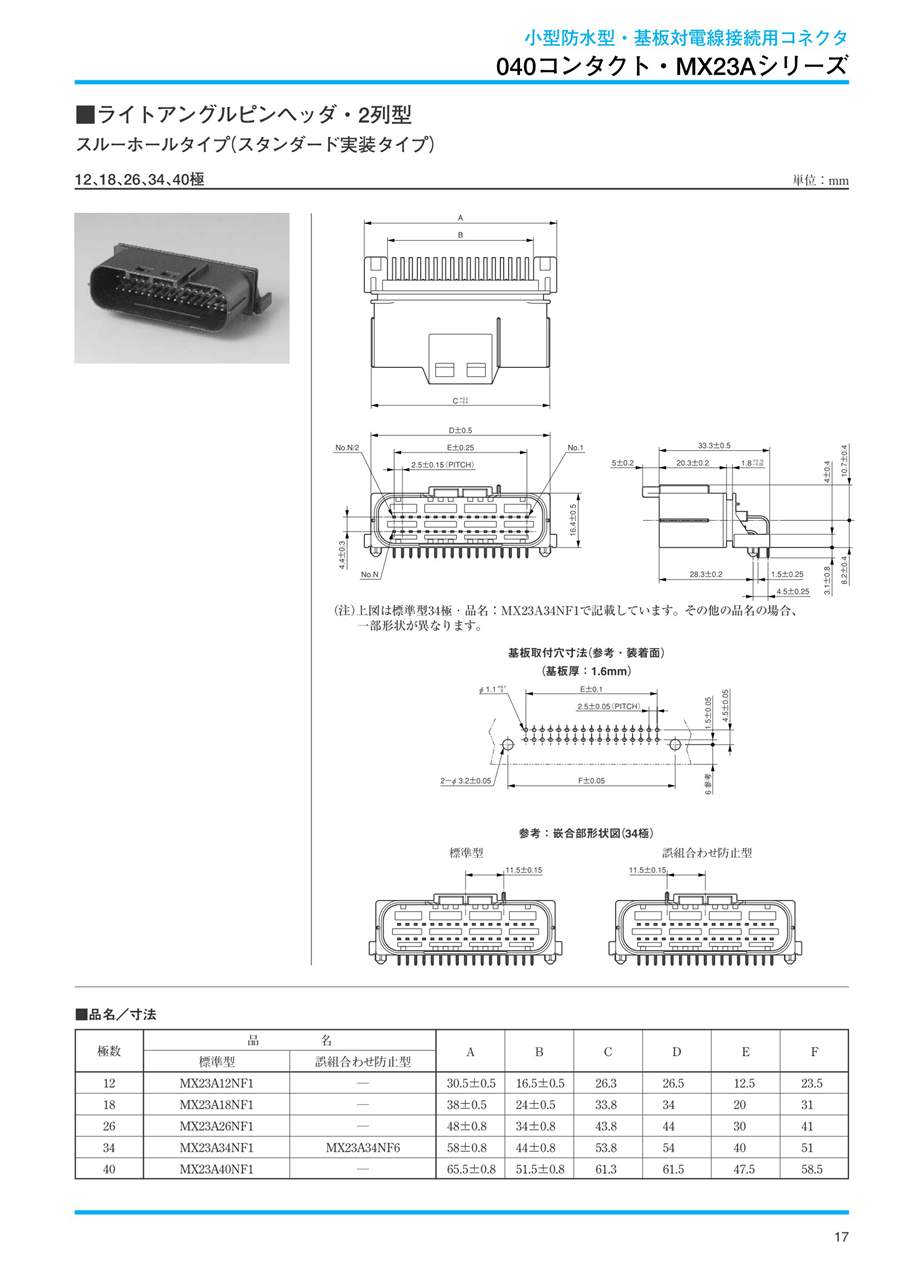

Catalog

Catalog (2-page spread)
