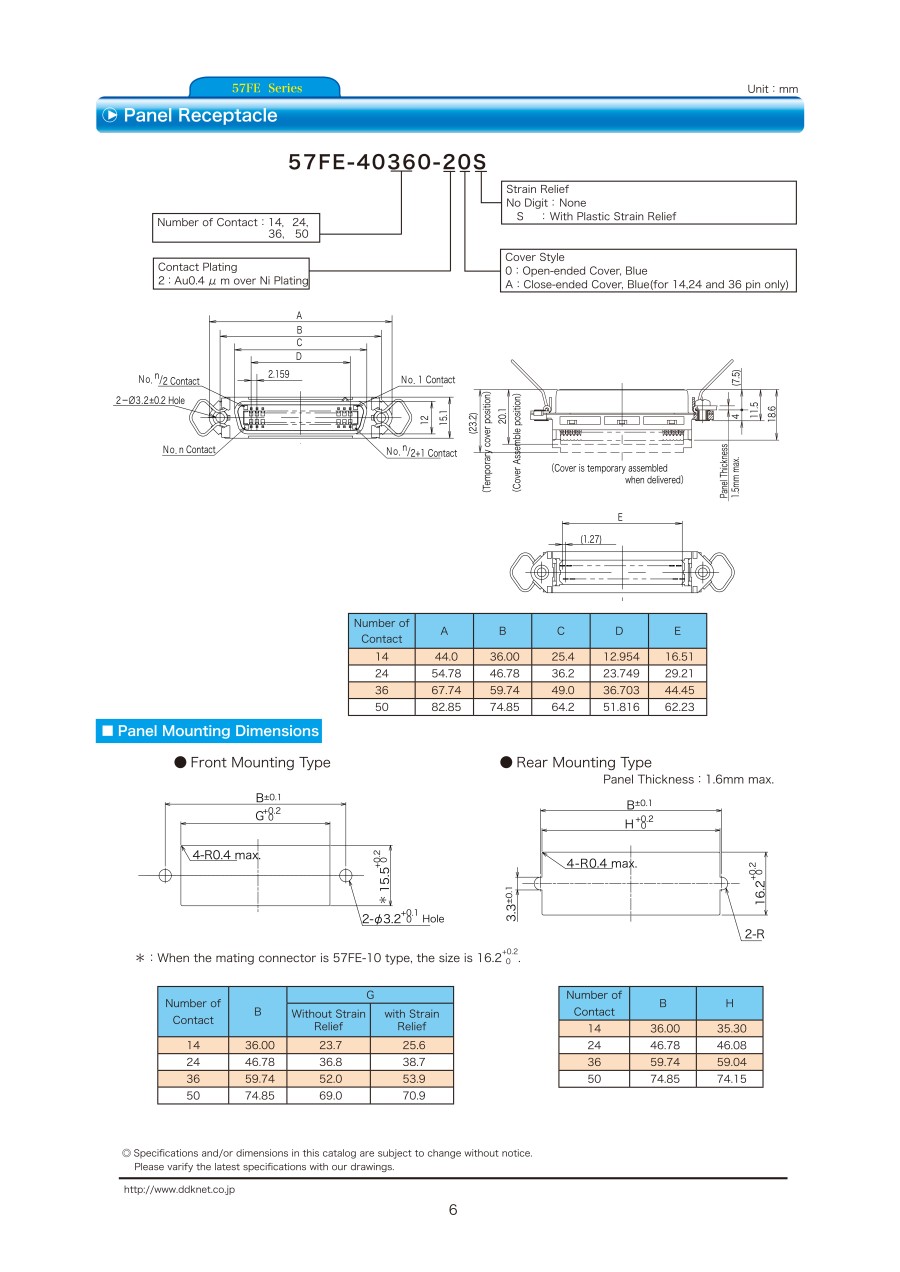

57FE Series Pressure Welded Type Flat Cable

57FE Series Pressure Welded Type Flat Cable
  • Volume Discount

[Features]
• The 57FE series is a flat cable pressure-welded connector that has fittings covered by a metal shell, which is a countermeasure for electromagnetic radiation that helps reduce noise.
• Basic varieties include 10, 20, 30, and 40 types.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
57FE-10240-20
57FE-10360-20
57FE-10500-20
57FE-20140-20SD35-CG
57FE-20240-20S
57FE-20240-20SD35-CG
57FE-20360-20D35-CG
57FE-20360-20S
57FE-20360-20SD35-CG
57FE-20500-20S
57FE-20500-20SD35-CG
57FE-30140-20
57FE-30140-20N(D8)-3F
57FE-30140-20S
57FE-30240-20
57FE-30240-20S
57FE-30360-20
57FE-30360-20S
57FE-30500-20
57FE-30500-20S
57FE-40140-20S
57FE-40240-20S
57FE-40360-20S
57FE-40500-20S
Part NumberStandard Unit PriceVolume DiscountShipping Days?RoHSConnector series initials Applicable pin/contact Number Of Cores Application Wire connection method Connection direction Product Category Deviation Features Surface treatment (shell) Strain relief Note

0.70 €

73 Days 10NumberMale (plug)24Cable ConnectionPressure WeldingAnglePlug for unit connectionNA10 types (for inside equipment)NANA-

0.70 €

73 Days 10NumberMale (plug)36Cable ConnectionPressure WeldingAnglePlug for unit connectionNA10 types (for inside equipment)NANA-

0.70 €

73 Days 10NumberMale (plug)50Cable ConnectionPressure WeldingAnglePlug for unit connectionNA10 types (for inside equipment)NANA-

0.70 €

73 Days 10NumberFemale (socket)14Panel Mount-AnglePanel receptacle (screw retained type)Jack socket mounted item20 types (for inside equipment)Ni platingResin strain relief attachmentLead free and Cd free-compliant items

0.70 €

73 Days 10NumberFemale (socket)24Cable ConnectionPressure WeldingAngleReceptacle for unit connectionNA20 types (for inside equipment)Ni platingResin strain relief attachment-

17.05 €

4 Days 10NumberFemale (socket)24Panel Mount-AnglePanel receptacle (screw retained type)Jack socket mounted item20 types (for inside equipment)Ni platingResin strain relief attachmentLead free and Cd free-compliant items

12.17 €

83 Days 10NumberFemale (socket)36Panel Mount-AnglePanel receptacle (screw retained type)Jack socket mounted item20 types (for inside equipment)Ni platingNALead free and Cd free-compliant items

0.70 €

73 Days 10NumberFemale (socket)36Cable ConnectionPressure WeldingAngleReceptacle for unit connectionNA20 types (for inside equipment)Ni platingResin strain relief attachment-

0.70 €

73 Days 10NumberFemale (socket)36Panel Mount-AnglePanel receptacle (screw retained type)Jack socket mounted item20 types (for inside equipment)Ni platingResin strain relief attachmentLead free and Cd free-compliant items

0.70 €

73 Days 10NumberFemale (socket)50Cable ConnectionPressure WeldingAngleReceptacle for unit connectionNA20 types (for inside equipment)Ni platingResin strain relief attachment-

0.70 €

73 Days 10NumberFemale (socket)50Panel Mount-AnglePanel receptacle (screw retained type)Jack socket mounted item20 types (for inside equipment)Ni platingResin strain relief attachmentLead free and Cd free-compliant items

7.86 €

83 Days 10NumberMale (plug)14Cable ConnectionPressure WeldingStraightPlugNA30 type (for I/F)NANA-

9.90 €

Available 4 Days -NumberMale (plug)14Cable ConnectionPressure WeldingStraightStraight plug with hoodWith hood, ground plate30 type (for I/F)NANALead-free product and chrome-free products

0.70 €

73 Days 10NumberMale (plug)14Cable ConnectionPressure WeldingStraightPlugNA30 type (for I/F)NAResin strain relief attachment-

9.29 €

83 Days 10NumberMale (plug)24Cable ConnectionPressure WeldingStraightPlugNA30 type (for I/F)NANA-

0.70 €

73 Days 10NumberMale (plug)24Cable ConnectionPressure WeldingStraightPlugNA30 type (for I/F)NAResin strain relief attachment-

9.79 €

83 Days 10NumberMale (plug)36Cable ConnectionPressure WeldingStraightPlugNA30 type (for I/F)NANA-

0.70 €

73 Days 10NumberMale (plug)36Cable ConnectionPressure WeldingStraightPlugNA30 type (for I/F)NAResin strain relief attachment-

13.72 €

Available 73 Days 10NumberMale (plug)50Cable ConnectionPressure WeldingStraightPlugNA30 type (for I/F)NANA-

0.70 €

73 Days 10NumberMale (plug)50Cable ConnectionPressure WeldingStraightPlugNA30 type (for I/F)NAResin strain relief attachment-

7.36 €

Available 4 Days 10NumberFemale (socket)14Cable ConnectionPressure WeldingAngleShield receptacleNA40 type (for F/F)Ni platingResin strain relief attachment-

8.24 €

Available 4 Days 10NumberFemale (socket)24Cable ConnectionPressure WeldingAngleShield receptacleNA40 type (for F/F)Ni platingResin strain relief attachment-

8.97 €

Available 4 Days 10NumberFemale (socket)36Cable ConnectionPressure WeldingAngleShield receptacleNA40 type (for F/F)Ni platingResin strain relief attachment-

9.26 €

Available 4 Days 10NumberFemale (socket)50Cable ConnectionPressure WeldingAngleShield receptacleNA40 type (for F/F)Ni platingResin strain relief attachment-

Loading...

  1. 1

Basic information

Connector Shape Square shape Number 57FE Allowable Current(A) 1
Allowable Voltage(V) AC250 Protection function (environmentally resistant) N/A Surface treatment (contact) Nickel underlay gold 0.4 μ plating
Cover Shape Open-end cover / Blue Special notes Shield Type
