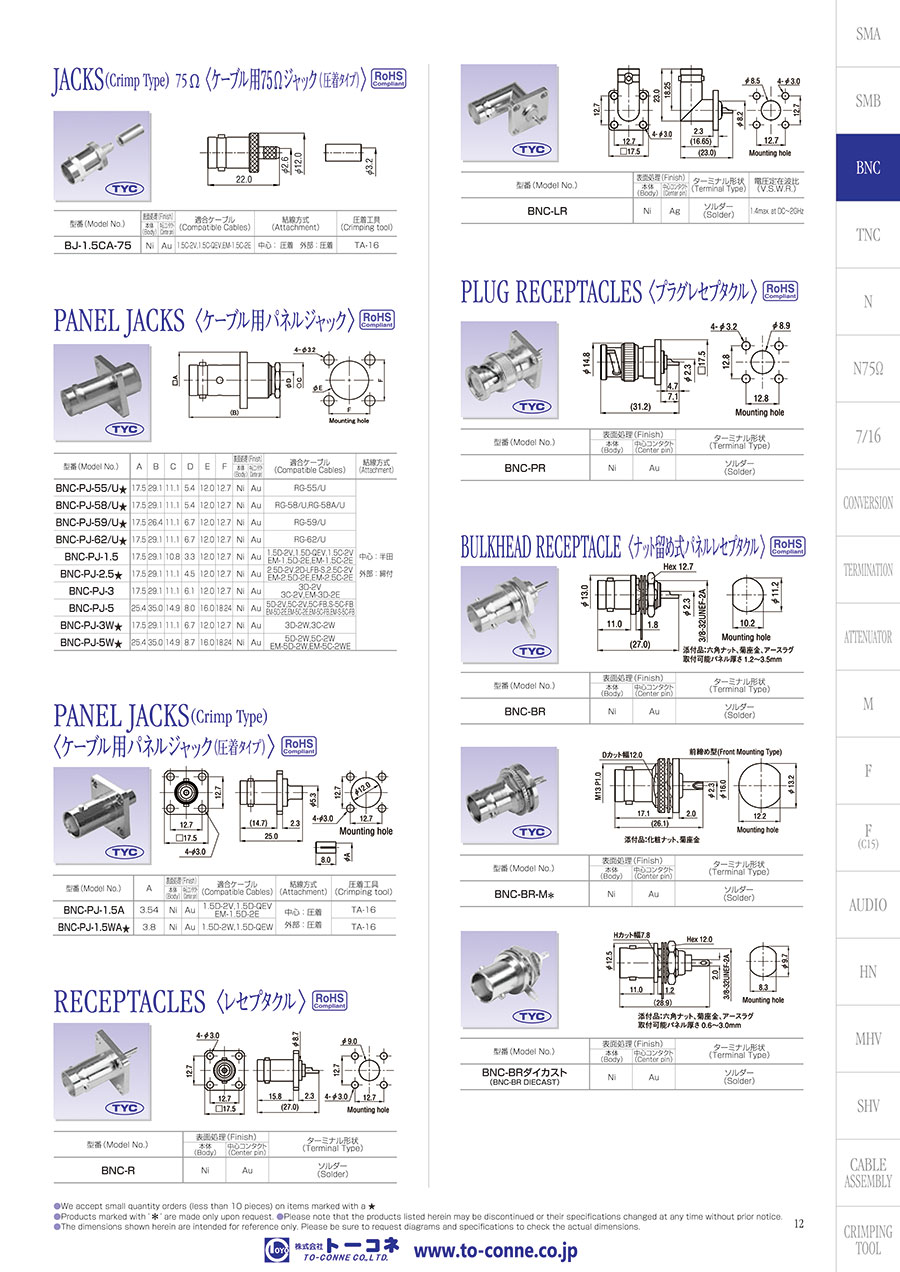

    BNC Connector Receptacle

    BNC Connector Receptacle

    Part number:

    Still undefined. 2 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    BNC-LR
    BNC-R

    Connection direction

    Surface treatment: Contact

    Voltage standing wave ratio

    Depth

    (mm)

    		RoHS?Minimum order quantity
    Angle
    Ag
    1.4 max. (DC up to 2 GHz)
    23
    10
    1 pieces
    Straight
    Au
    -
    27
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    32.60 €
    ( 38.79 € )
    6 working days
    7.92 €
    ( 9.42 € )
    Stock item: 1 working dayAvailable for same-day shipping
  • 1

    • More Information

    Basic information

    [Features]
    · Small and light weight using a bayonet locking method for simple coupling. Receptacles.
    ▪ When a 75 Ω cable is used with a 50 Ω type connector, and the frequency is 200 MHz or less, it can be used on a 75 Ω transmission line, but when the frequency exceeds 200 MHz, use of a BNC 75 Ω type is recommended.
