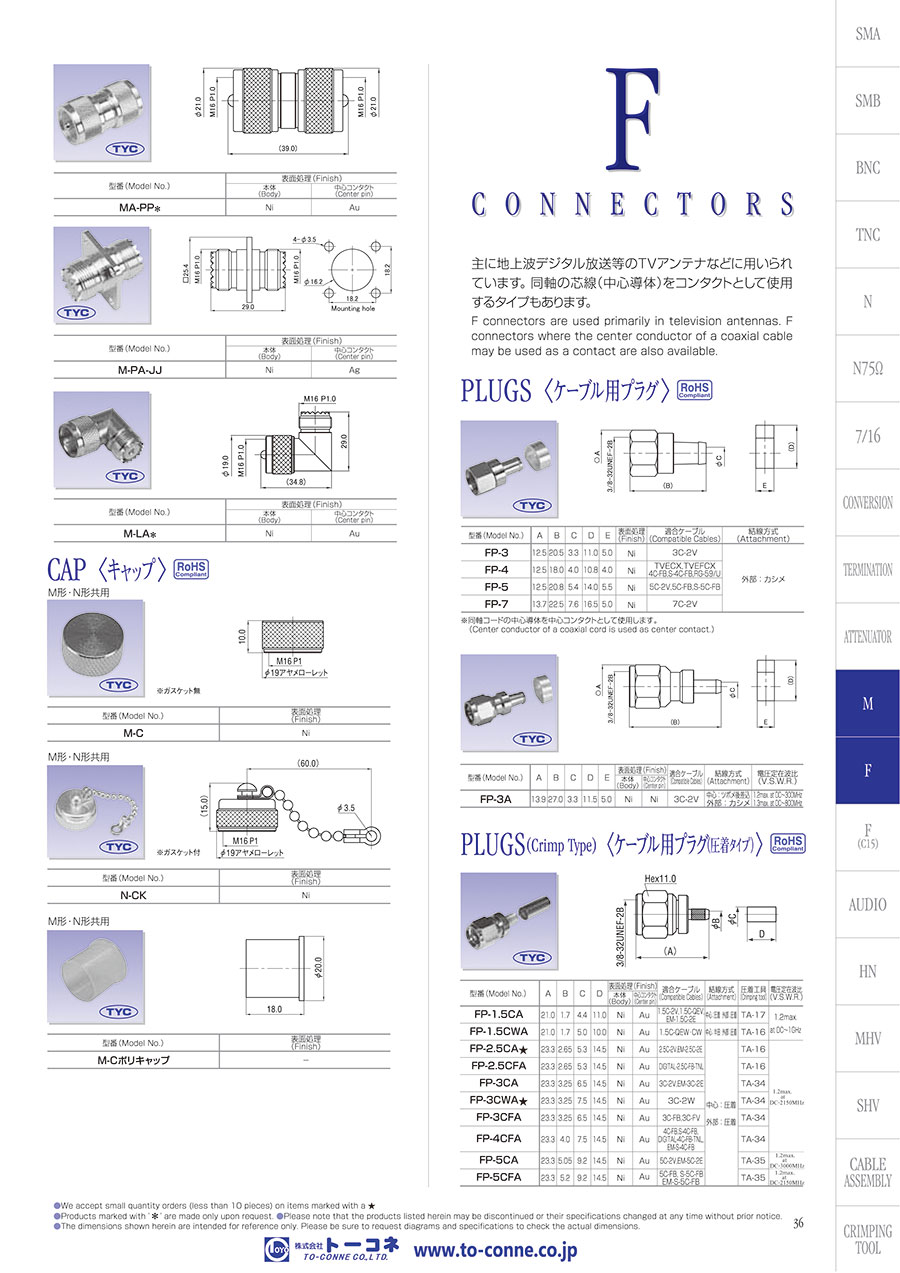

Plugs for F-Connector Cables
- Volume Discount
[Features]
• Used primarily in TV antennas used for terrestrial digital broadcasting.
• Uses a coaxial core wire (center conductor) as its contact.
• Uses the center conductor of the coaxial cord as its contact.
• Used primarily in TV antennas used for terrestrial digital broadcasting.
• Uses a coaxial core wire (center conductor) as its contact.
• Uses the center conductor of the coaxial cord as its contact.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Basic information
| Connector Shape | Coaxial | Connector series initials | D/E/F | D/E/F | F |
|---|---|---|---|---|---|
| Applicable pin/contact | Male (plug) | Number Of Cores | 1 | Application | Cable Connection |
| Wire connection method | Crimp | Connection direction | Straight | Protection function (environmentally resistant) | N/A |
| Surface treatment: Main body | Ni | Surface treatment: Contact | Au | Wire connection method: External | Crimp |
| Voltage standing wave ratio | 1.2 max. (DC up to 2,150 MHz) | Vertical(mm) | Hex11 | Horizontal(mm) | Hex11 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
