TWF Type Flame Retardant Plastic Case with Flange Foot
- Volume Discount
• With flange foot eases installation.
• 23 sizes of flame-retardant plastic cases, and available in two colors - off-white and dark gray.
· Equipped with a boss for mounting on a circuit board.
· May be used with a variety of devices, such as measuring instruments, communication devices, and controllers, etc.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price

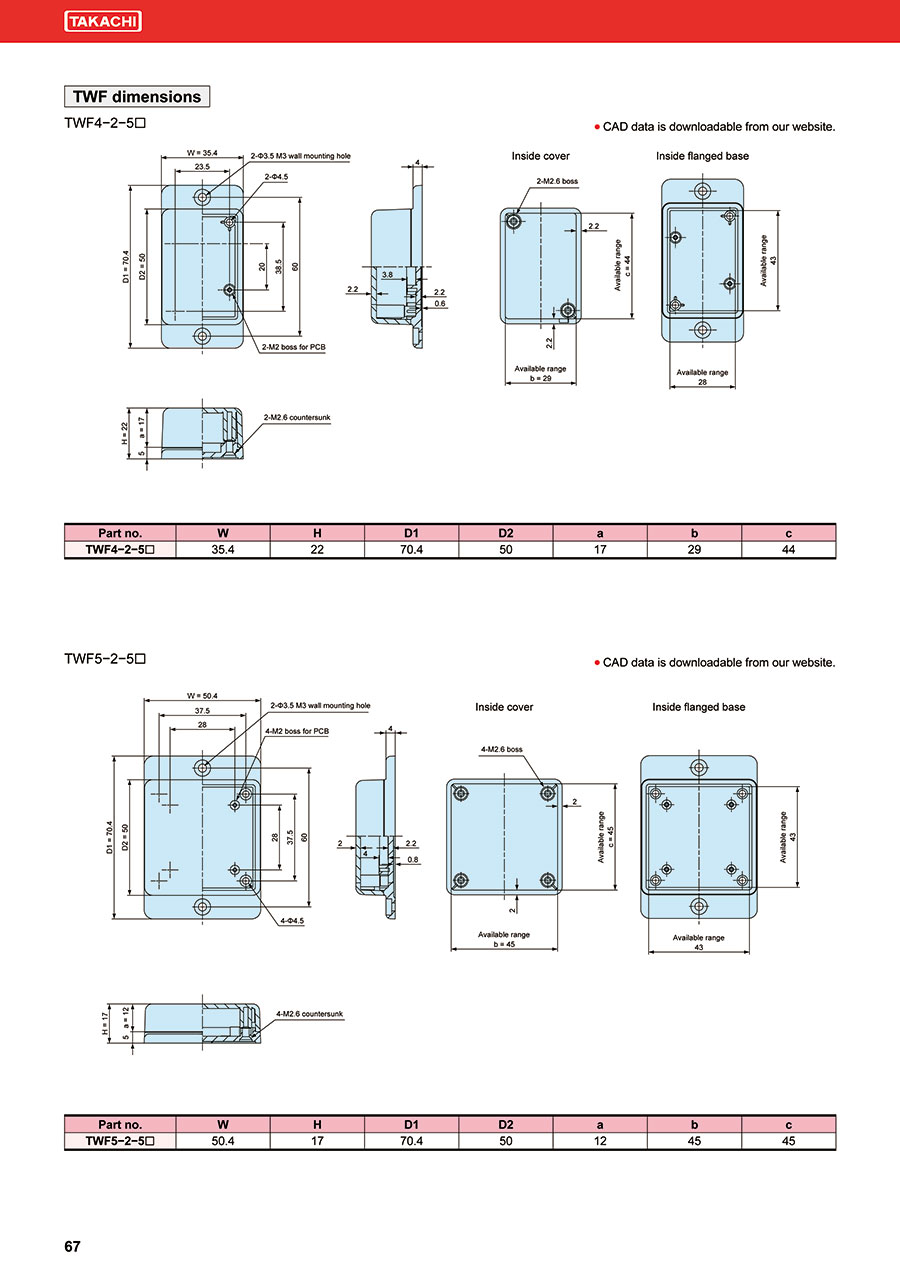

| Minimum order quantity | Volume Discount | RoHS | W (mm) | H (mm) | D (mm) | Color specifications (Body) | Screw length | Self-extinguishing (UL94) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
1.87 € | 1 | 6 Days | - | 35.4 | 22 | 70.4 | Dark gray | M2.6 x 12 | V-0 | ||
1.88 € | 1 | 6 Days | 10 | 50.4 | 17 | 70.4 | Dark gray | M2.6 x 12 | V-1 | ||
1.88 € | 1 | 5 Days | - | 50.4 | 17 | 70.4 | Off-White | M2.6 x 12 | V-1 | ||
2.26 € | 1 | 6 Days | - | 50.4 | 17 | 90.4 | Dark gray | M2.6 x 12 | V-1 | ||
2.26 € | 1 | 6 Days | 10 | 50.4 | 17 | 90.4 | Off-White | M2.6 x 12 | V-1 | ||
2.09 € | 1 | 6 Days | 10 | 50.4 | 27 | 70.4 | Dark gray | M2.6 x 12 | V-1 | ||
8.19 € | 1 | Available |
Same day
Stock | 10 | 50.4 | 27 | 70.4 | Off-White | M2.6 x 12 | V-1 | |
2.77 € | 1 | 5 Days | 10 | 50.4 | 29.5 | 90.4 | Dark gray | M2.6 x 12 | V-1 | ||
5.14 € | 1 | Available |
Same day
Stock | 10 | 50.4 | 29.5 | 90.4 | Off-White | M2.6 x 12 | V-1 | |
2.82 € | 1 | 6 Days | 10 | 45.6 | 27.5 | 111 | Dark gray | M2.6 x 12 | V-0 | ||
2.82 € | 1 | 6 Days | 10 | 45.6 | 27.5 | 111 | Off-White | M2.6 x 12 | V-0 | ||
2.97 € | 1 | 6 Days | 10 | 50.4 | 42 | 90.4 | Dark gray | M2.6 x 12 | V-1 | ||
5.40 € | 1 | Available |
Same day
Stock | 10 | 50.4 | 42 | 90.4 | Off-White | M2.6 x 12 | V-1 | |
3.47 € | 1 | 6 Days | 10 | 70.6 | 20.5 | 127 | Dark gray | M2.6 x 14 | V-0 | ||
3.47 € | 1 | 6 Days | - | 70.6 | 20.5 | 127 | Off-White | M2.6 x 14 | V-0 | ||
4.87 € | 1 | 6 Days | - | 65.5 | 25.5 | 150 | Dark gray | M3 x 16 | V-0 | ||
4.87 € | 1 | 6 Days | - | 65.5 | 25.5 | 150 | Off-White | M3 x 16 | V-0 | ||
4.22 € | 1 | 6 Days | 10 | 70.6 | 35.5 | 127 | Dark gray | M2.6 x 14 | V-0 | ||
4.22 € | 1 | 5 Days | 10 | 70.6 | 35.5 | 127 | Off-White | M2.6 x 14 | V-0 | ||
4.65 € | 1 | 6 Days | 10 | 70.6 | 50.5 | 127 | Dark gray | M2.6 x 14 | V-0 | ||
4.65 € | 1 | 6 Days | 10 | 70.6 | 50.5 | 127 | Off-White | M2.6 x 14 | V-0 | ||
5.87 € | 1 | 6 Days | 10 | 65.5 | 50 | 150 | Dark gray | M3 x 16 | V-0 | ||
5.87 € | 1 | 6 Days | 10 | 65.5 | 50 | 150 | Off-White | M3 x 16 | V-0 | ||
3.44 € | 1 | 6 Days | 10 | 80.6 | 23.5 | 100.6 | Dark gray | M2.6 x 14 | V-0 | ||
3.44 € | 1 | 6 Days | 10 | 80.6 | 23.5 | 100.6 | Off-White | M2.6 x 14 | V-0 | ||
4.06 € | 1 | 5 Days | 10 | 80.6 | 43.5 | 100.6 | Dark gray | M2.6 x 14 | V-0 | ||
4.06 € | 1 | 6 Days | 10 | 80.6 | 43.5 | 100.6 | Off-White | M2.6 x 14 | V-0 | ||
7.55 € | 1 | 6 Days | 10 | 86 | 35 | 190 | Dark gray | M3 x 16 | V-0 | ||
7.55 € | 1 | 5 Days | - | 86 | 35 | 190 | Off-White | M3 x 16 | V-0 | ||
8.75 € | 1 | 6 Days | 10 | 86 | 60 | 190 | Dark gray | M3 x 16 | V-0 | ||
8.75 € | 1 | 6 Days | 10 | 86 | 60 | 190 | Off-White | M3 x 16 | V-0 | ||
10.50 € | 1 | 6 Days | - | 110.3 | 45 | 250.6 | Dark gray | M3 x 16 | V-0 | ||
10.50 € | 1 | 6 Days | 10 | 110.3 | 45 | 250.6 | Off-White | M3 x 16 | V-0 | ||
12.48 € | 1 | 5 Days | 10 | 110.3 | 75 | 250.6 | Dark gray | M3 x 16 | V-0 | ||
12.48 € | 1 | 5 Days | 10 | 110.3 | 75 | 250.6 | Off-White | M3 x 16 | V-0 | ||
6.96 € | 1 | 6 Days | - | 125.6 | 25 | 155.6 | Dark gray | M3 x 16 | V-0 | ||
6.96 € | 1 | 6 Days | - | 125.6 | 25 | 155.6 | Off-White | M3 x 16 | V-0 | ||
11.81 € | 1 |
Same day
Stock | 10 | 125.6 | 25 | 205.6 | Dark gray | M3 x 16 | V-0 | ||
8.56 € | 1 | 6 Days | 10 | 125.6 | 25 | 205.6 | Off-White | M3 x 16 | V-0 | ||
8.17 € | 1 | 5 Days | 10 | 125.6 | 45 | 155.6 | Dark gray | M3 x 16 | V-0 | ||
8.17 € | 1 | 6 Days | 10 | 125.6 | 45 | 155.6 | Off-White | M3 x 16 | V-0 | ||
9.98 € | 1 | 6 Days | 10 | 125.6 | 45 | 205.6 | Dark gray | M3 x 16 | V-0 | ||
9.98 € | 1 | 6 Days | 10 | 125.6 | 45 | 205.6 | Off-White | M3 x 16 | V-0 | ||
11.52 € | 1 | 6 Days | - | 125.6 | 65 | 205.6 | Dark gray | M3 x 16 | V-0 | ||
11.52 € | 1 | 6 Days | 10 | 125.6 | 65 | 205.6 | Off-White | M3 x 16 | V-0 |
Loading...
Basic information
| Material | Flame retardant ABS Resin | Mounting Base | No mounting base | Installation location | Not Specified |
|---|---|---|---|---|---|
| Standard | UL | Operating Temperature Range(°C) | -10 – 60 |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
W(mm)
-
H(mm)
-
D(mm)
-
Color specifications(Body)
-
Screw length
- M2.6 x 12
- M2.6 x 14
- M3 x 16
-
Filter by CAD data type
- 2D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
