Second Generation PC Power Supply

Catalog

Part number:

Still undefined. 18 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Type

Capacity

(W)

Serial ATA

Removable cable for internal connector

Representative Standard

Dimension vertical

(mm)

Dimension width

(mm)

Dimension depth

(mm)

Product Type

Other standards

Note

RoHS?

Minimum order quantity

ATX power supply	300	Available	Applicable	CE / UL / CSA	150	86	120	-	EN	-	10	1 pieces
ATX power supply	300	N/A	Not Applicable	CE / UL / CSA	150	86	120	-	EN	-	10	1 pieces
ATX power supply	500	Available	Applicable	CE / UL / CCC / CSA	150	86	140	-	EN	-	10	1 pieces
ATX power supply	500	Available	Applicable	CE / UL / CSA	150	86	140	With Accessory	EN	Full option specification - buy and use immediately. Included accessories: Output harness set (6 types) / AC power cord (PS2753) / AC power cord fall-out protection clamp (PS2734) / 2P conversion plug / instruction manual	10	1 pieces
ATX power supply	650	Available	Applicable	CE / UL / CSA	150	86	180	-	EN	-	-	1 pieces
ATX power supply	400	Available	Applicable	CE / UL / CSA	100	41	190	-	-	-	-	1 pieces
[Other] 1 U/2U power supply	400	Available	Applicable	CE / UL / CSA	106	37	225	-	-	-	10	1 pieces
ATX power supply	1000	Available	Applicable	CE / UL / CSA	150	85	190	-	-	-	-	1 pieces
[Other] ATX/EPS power supply	1000	Available	Applicable	CE / UL / CSA	150	85	190	-	-	-	10	1 pieces
ATX power supply	570	Available	Applicable	CE / UL / CSA	150	86	140	-	-	-	10	1 pieces
SFX power supply	400	Available	Applicable	CE / UL / CCC / CSA	125	63.5	125	-	-	-	-	1 pieces
ATX power supply	180	Available	Applicable	CE / UL / CSA	93	55	160	-	EN	-	-	1 pieces
ATX power supply	180	Available	Applicable	CE / UL / CSA	93	55	160	-	EN	-	10	1 pieces
ATX power supply	220	Available	Not Applicable	CE / UL / CSA	81.5	41	150	-	-	-	-	1 pieces
[Other] AT power supply	250	N/A	Not Applicable	-	150	86	140	-	-	-	-	1 pieces
ATX power supply	370	Available	Not Applicable	CE / UL / CCC / CSA	150	86	140	-	-	-	-	1 pieces
ATX power supply	370	Available	Not Applicable	CE / UL / CCC / CSA	150	86	139	-	-	-	10	1 pieces
SFX power supply	350	Available	Applicable	CE / UL / CCC / CSA	125	63.5	125	-	-	-	-	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

292.25 € ( 347.78 € )	24 working days
274.95 € ( 327.19 € )	6 working days
348.97 € ( 415.27 € )	6 working days
471.02 € ( 560.51 € )	6 working days
344.19 € ( 409.59 € )	6 working days
209.13 € ( 248.86 € )	6 working days
211.27 € ( 251.41 € )	24 working days
435.40 € ( 518.13 € )	6 working days
718.49 € ( 855.00 € )	24 working days
351.09 € ( 417.80 € )	24 working days
224.33 € ( 266.95 € )	6 working days
239.08 € ( 284.51 € )	6 working days
227.19 € ( 270.36 € )	6 working days
195.56 € ( 232.72 € )	6 working days
304.85 € ( 362.77 € )	6 working days
239.68 € ( 285.22 € )	6 working days
298.91 € ( 355.70 € )	6 working days
272.79 € ( 324.62 € )	6 working days

More Information

Basic information

Basic information

Industrial PC power supply · Japan's top manufacturer's highly reliable power supply.

[Features]
· SFX power supply (APPENDIX C mounting surface compatible).
· Compatible with microATX cases / 350WSFX power supply.
· Features +12V dual output, allowing for more stable CPU operations.
· Stable operation with 0A full output minimum load current.
· Since the output harness is a connector system, specifications can be freely selected

Catalog

Products homepage

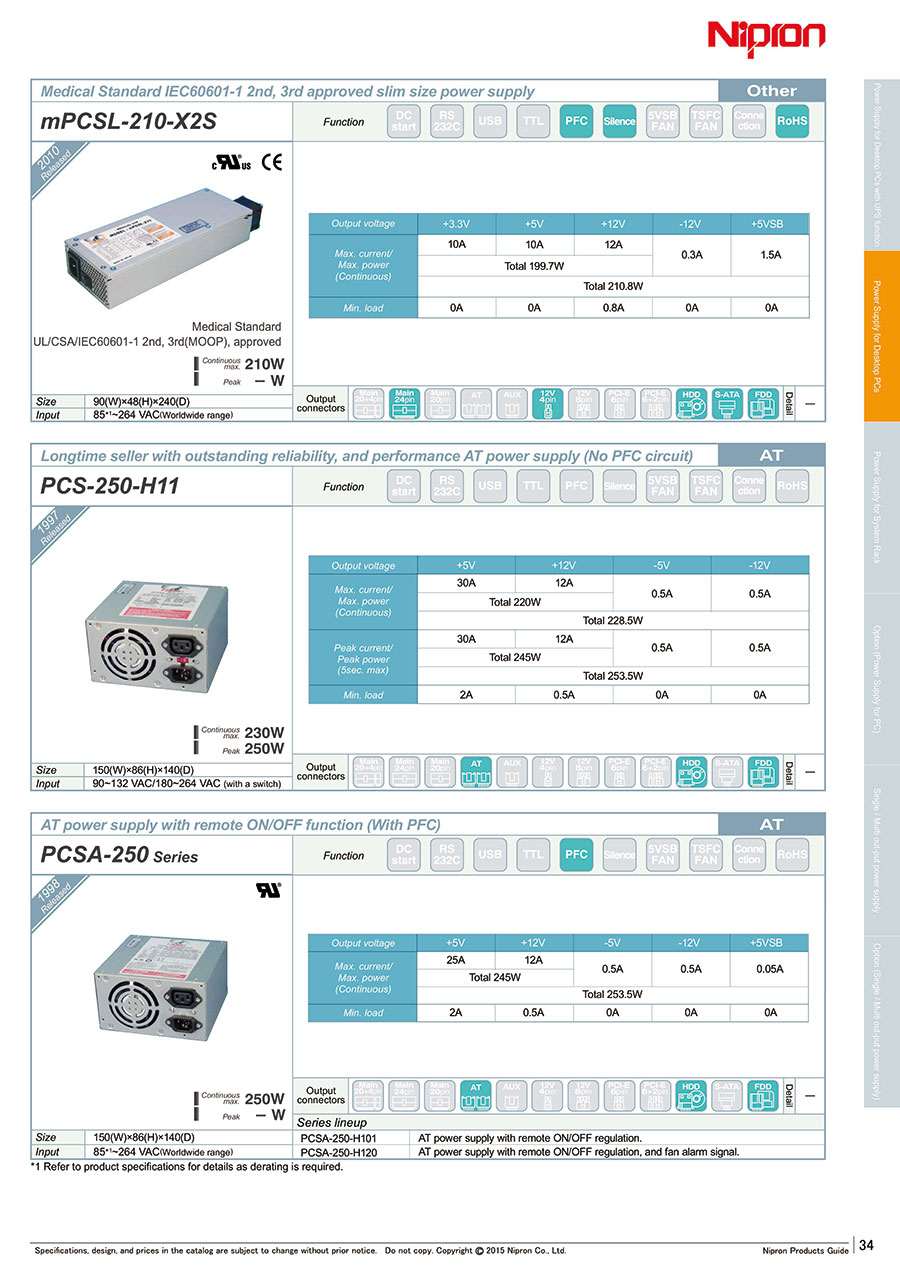

Catalog (2-page spread)
