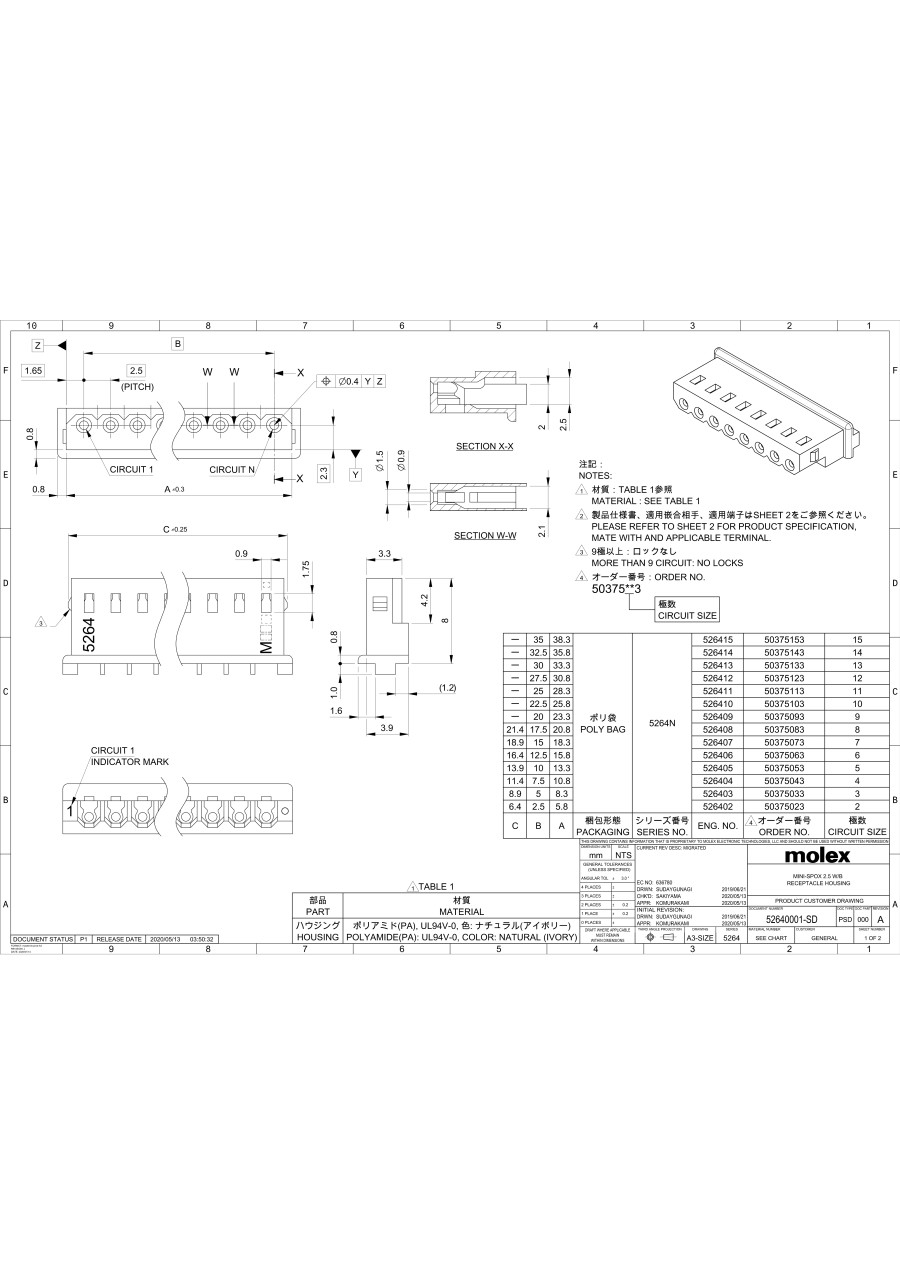

SPOX™ Housing（5264）
- Promotional pricing ends 30/11/2024
- Volume Discount
The Molex Spox family of wire-to-circuit board connectors have a structure that works within a pitch range of 2.50 mm to 5.08 mm. (Mating housing: 5267/5268, Compatible terminal: 5263)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 5264-02 |
| 5264-03 |
| 5264-04 |
| 5264-05 |
| 5264-06 |
| 5264-07 |
| 5264-08 |
| 5264-09 |
| 5264-10 |
| 5264-11 |
| 5264-12 |
| 5264-13 |
| 5264-14 |
| 5264-15 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Number Of Cores | |
|---|---|---|---|---|---|
0.09 € | 25 | Available | 5 Days | 2 | |
0.14 € | 10 | Available | 5 Days | 3 | |
0.11 € | 25 | Available | 5 Days | 4 | |
0.23 € | 10 | Available | 5 Days | 5 | |
1.63 € 1.14 € | 8 | Available |
Same day
Stock | 6 | |
0.19 € | 10 | Available | 5 Days | 7 | |
0.19 € | 10 | Available | 5 Days | 8 | |
0.20 € | 10 | Available | 5 Days | 9 | |
0.17 € | 10 | Available | 5 Days | 10 | |
0.31 € | 10 | Available | 5 Days | 11 | |
0.31 € | 5 | Available | 5 Days | 12 | |
0.28 € | 5 | Available | 5 Days | 13 | |
0.33 € | 5 | Available | 5 Days | 14 | |
0.45 € | 5 | Available | 5 Days | 15 |
Loading...
Basic information
| Connector Shape | Square shape | Connector series initials | Number | Applicable pin/contact | Female (socket) |
|---|---|---|---|---|---|
| Application | Cable Connection | Allowable Current(A) | 3 | Allowable Voltage(V) | 250 |
| Connection direction | Straight | Protection function (environmentally resistant) | N/A | Representative Standard | UL |
| Pitch(mm) | 2.50 | Number of Columns | 1 | Panel Mount | NA |
| Material | NYLON 66 | Note | UL94V-0 | Conforming terminal | 5263 |
| Mating Partner | 5267, 5268 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
