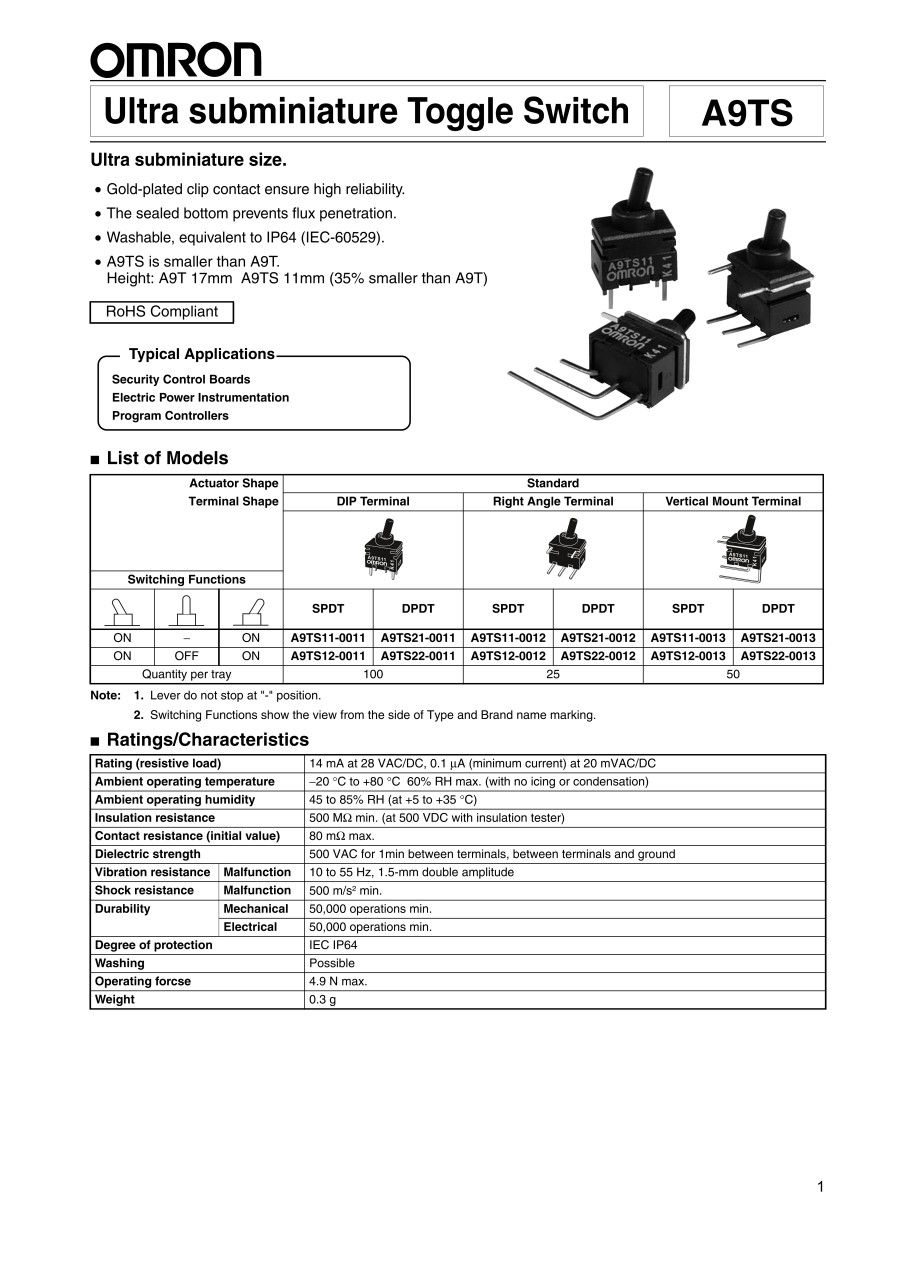

Ultra-Small Toggle Switch, A9TS
- Volume Discount
[Features]
· Ultra-small toggle switch.
· Contacts use gold plating and a clip contact mechanism for high reliability.
· Terminals use plastic casing to prevent flux intrusion.
· Can be washed without taking apart (IP64 equivalent).
· Compared to the previous A9T the length has been shrunk from 17 mm to 11 mm, saving 35% of space.
· Contributes to downsizing equipment.
· Ultra-small toggle switch.
· Contacts use gold plating and a clip contact mechanism for high reliability.
· Terminals use plastic casing to prevent flux intrusion.
· Can be washed without taking apart (IP64 equivalent).
· Compared to the previous A9T the length has been shrunk from 17 mm to 11 mm, saving 35% of space.
· Contributes to downsizing equipment.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
A9TS11-0013
Part Number
|
|---|
| A9TS11-0013 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | |
|---|---|---|---|---|
6.92 € | 2 | Available | 6 Days |
Loading...
Basic information
| Illumination | Non-Illumination | Contact Configuration | Single Pole Double Throw | With key | N/A |
|---|---|---|---|---|---|
| Terminal shape | PC terminal | Protection function (environmentally resistant) | IP64 equivalent | Dimension vertical(mm) | 11 |
| Dimension width(mm) | 7 | Dimension depth(mm) | 5.5 | Contact rating(V)/(A) | AC/DC28V 14mA |
| Details of terminal shape | Vertical mount | Function Operation | ON-ON | Cleaning | Applicable |
This page is Ultra-Small Toggle Switch, A9TS, part number A9TS11-0013.
You can find the detail information about specifications and dimensions on part number A9TS11-0013.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
