Connector Terminal Block Conversion Unit (Common Type) XW2C-20G5-IN16

Connector Terminal Block Conversion Unit (Common Type) XW2C-20G5-IN16
A connector-terminal block conversion unit which reduces the control panel wiring needed for input devices.
[Features]
· Power supply common terminal and LED operation indicators reduce control panel wiring for input devices.
· Power supply common provided for input devices.
· LEDs indicate at a glance whether input signals are ON or OFF.
· Mounts to a DIN track or via screws.
· Dedicated connecting cable available (sold separately).
[Applications]
· Use to reduce control panel wiring.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

XW2C-20G5-IN16

Part Number
XW2C-20G5-IN16
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?

242.80 €

1 7 Days

Loading...

  1. 1

Basic information

Mounting Connector MIL Connector Terminal Block Connection Method M3.5 screw Number of Poles(Pole) 20
Mounting Method Allows Both DIN Rail and Screw Mount Pitch Between Terminals(mm) 8.5 Dimension vertical(mm) 35
Dimension width(mm) 160 Dimension depth(mm) 50 Rated Current (A) Common(A) 1
Rated Voltage (V)(V) DC 12–24 Mounted Connector: Plug / Socket Plug (male) Operation Indicator LED Available
Number of I/Os 16 I/O division Input

This page is Connector Terminal Block Conversion Unit (Common Type) XW2C-20G5-IN16, part number XW2C-20G5-IN16.

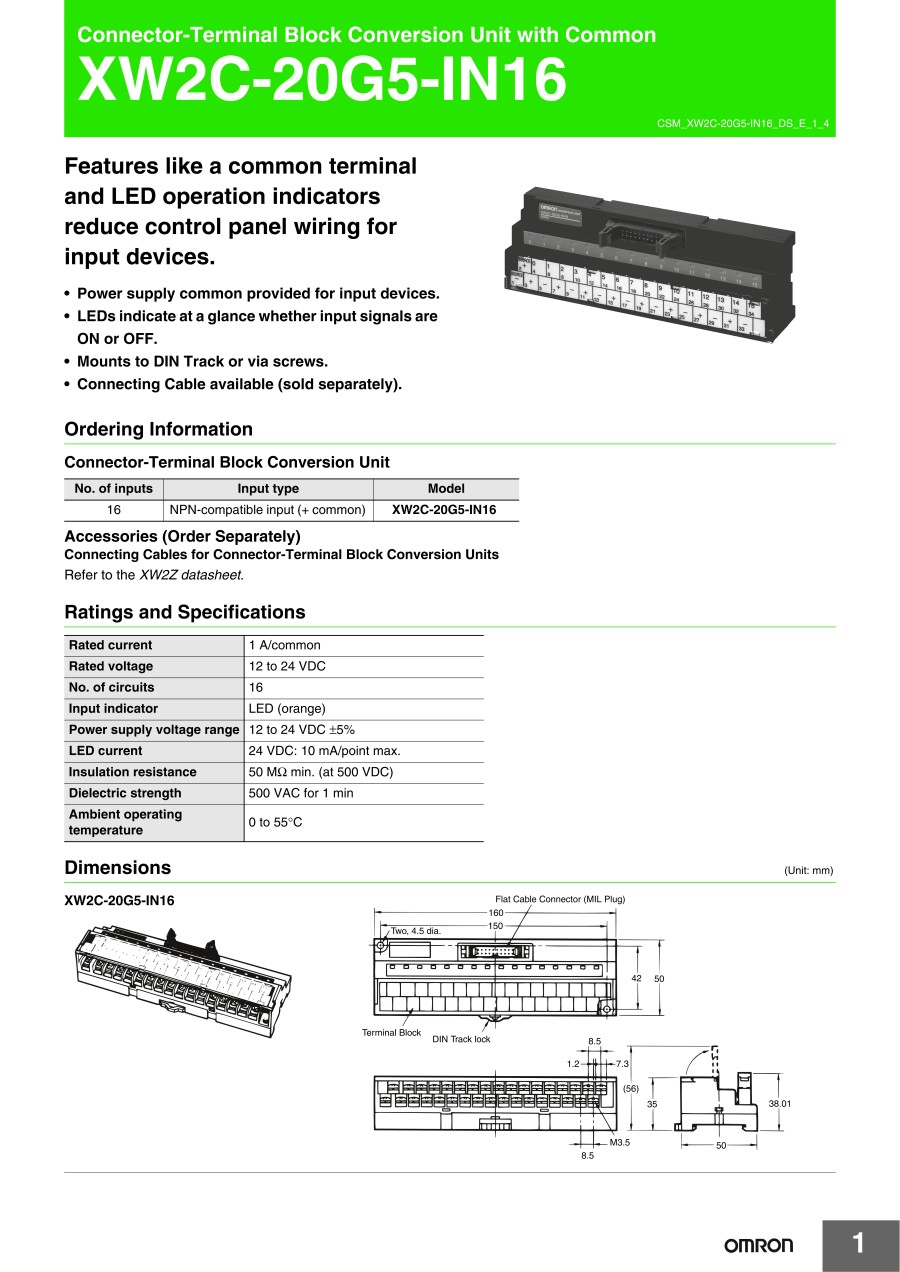

You can find the detail information about specifications and dimensions on part number XW2C-20G5-IN16.
