Solid State Relay G3NE
- Volume Discount
[Features]
· For built-in use.
· Small 5 to 20A power type with good cost savings.
· Wide range load voltage of AC75 to 264V.
· Use with both 100V, 200V.
· Dedicated aluminum circuit board, use of power element enables small size.
· Superior surge absorption due to built-in varistor.
· Connection uses tab terminals of input #110, output #250.
· UL, CSA, EN (TUV certification) standards acquired (-US type).
· For built-in use.
· Small 5 to 20A power type with good cost savings.
· Wide range load voltage of AC75 to 264V.
· Use with both 100V, 200V.
· Dedicated aluminum circuit board, use of power element enables small size.
· Superior surge absorption due to built-in varistor.
· Connection uses tab terminals of input #110, output #250.
· UL, CSA, EN (TUV certification) standards acquired (-US type).
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| G3NE-205T DC24 |
| G3NE-205T-US DC5 |
| G3NE-210T-US DC24 |
| G3NE-220T DC5 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Rated Voltage | |
|---|---|---|---|---|---|
21.10 € | 1 | 6 Days | DC24 | ||
19.09 € | 1 | 6 Days | DC5 | ||
20.90 € | 1 | Available | 6 Days | DC24 | |
27.04 € | 1 | Available |
Same day
Stock | DC5 |
Loading...

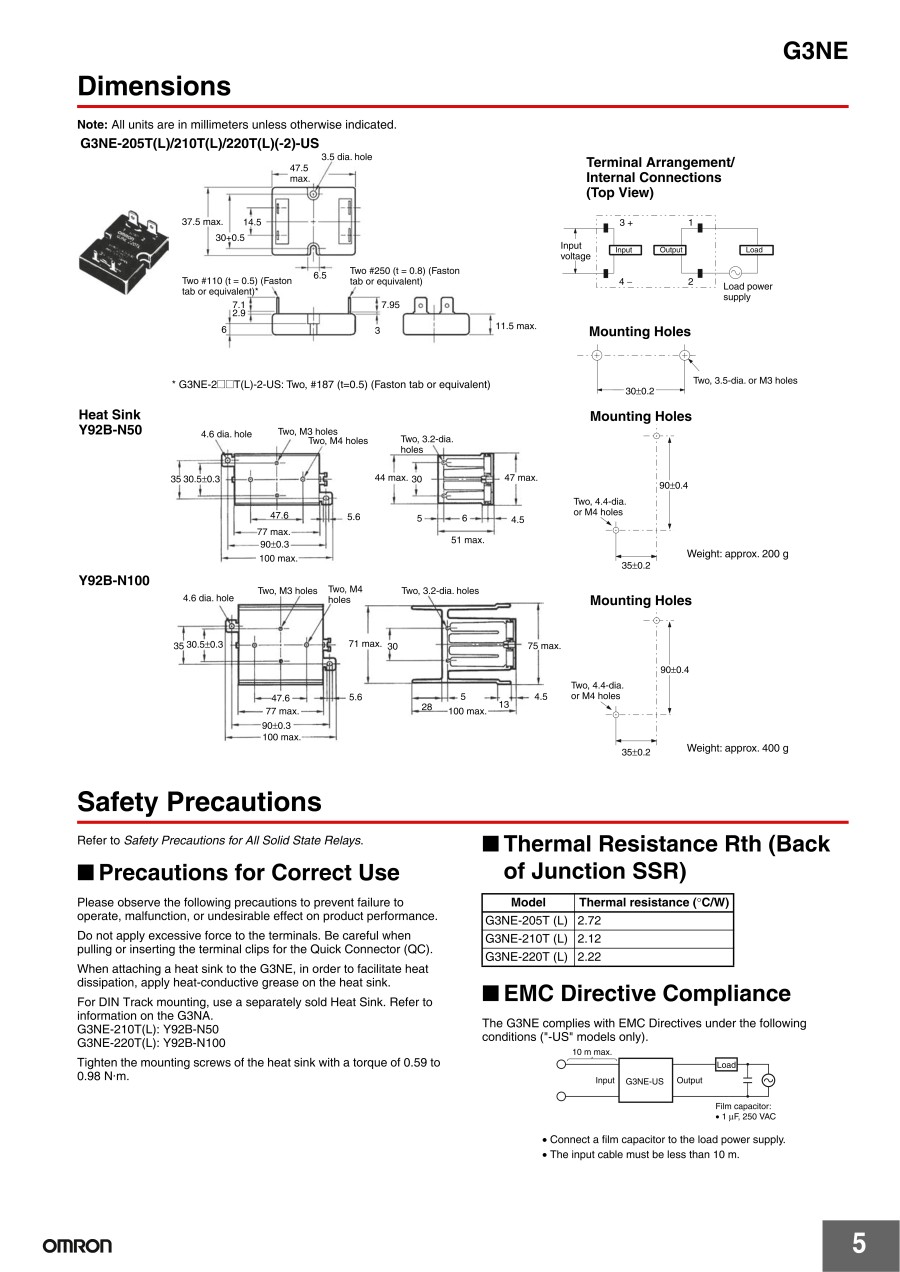

Basic information
| Application | SSR | Terminal shape | Tab Terminal | Dimension height(mm) | 11.5 |
|---|---|---|---|---|---|
| Dimension width(mm) | 37.5 | Dimension depth(mm) | 47.5 | AC rated load | AC100 to 240V/5A |
| Insulation method | Phototriac | Zero cross function | Available |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
